Starting and Charging: Testing and Inspection

Relay and Fuse

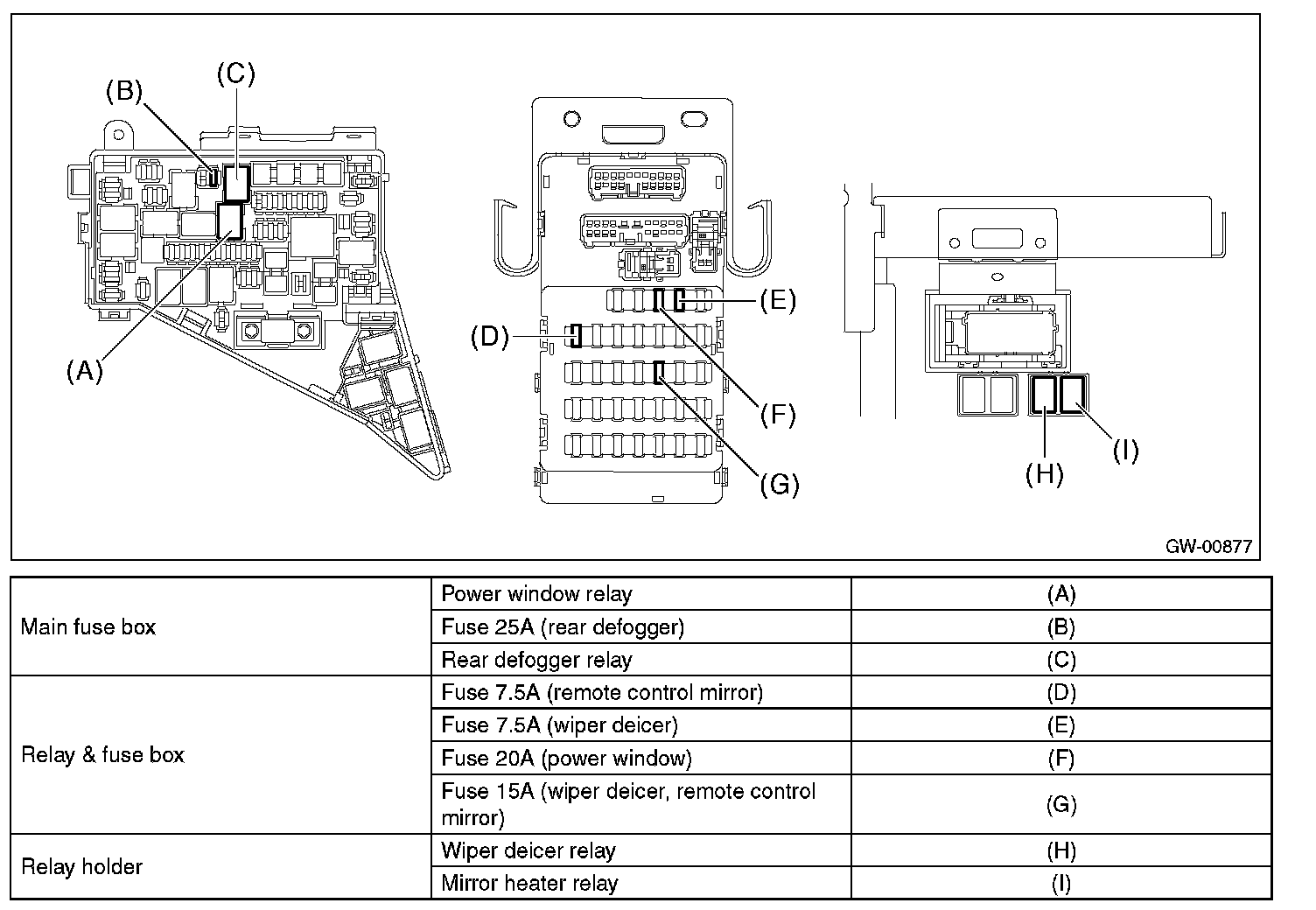

LOCATION







NOTE: For other related fuses, refer to the wiring diagram. [Ref. to, Power Supply Circuit.] Diagrams


INSPECTION

1. CHECK FUSE.
1. Remove the fuse and check visually.
2. If the fuse is blown out, replace the fuse.

2. CHECK RELAY

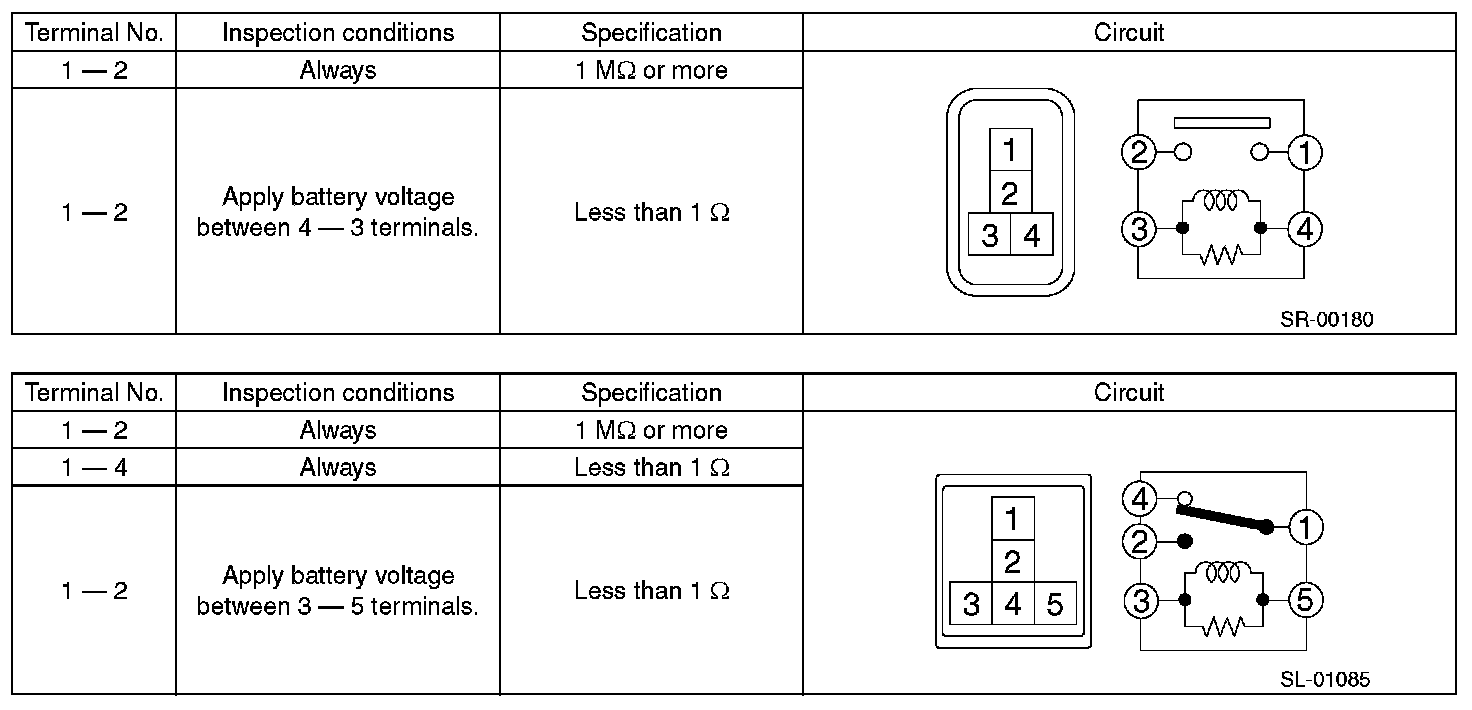

1. Check the resistance between relay terminals.







2. Replace the relay if the inspection result is not within the standard value.
