Removal

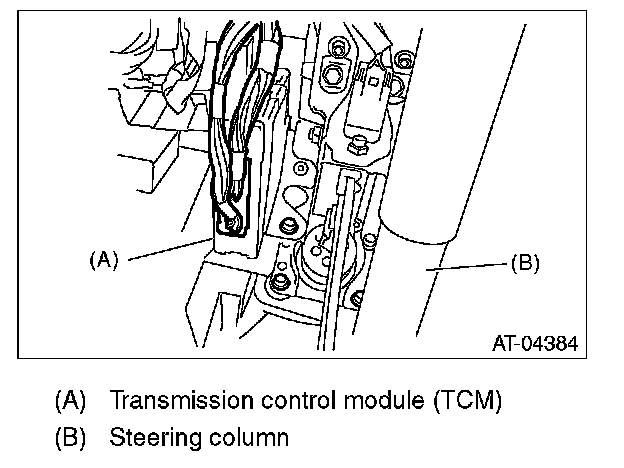

Transmission Control Module (TCM)

REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the instrument panel lower cover.
3) Disconnect the connector from TCM.





4) Remove the TCM.

NOTE:
Replace the TCM and bracket as a set.
