Transmission Control Device
Transmission Control DeviceREMOVAL
1) Remove the transmission assembly from vehicle body.
2) Remove the oil pan and control valve body.
3) Remove the inhibitor switch.

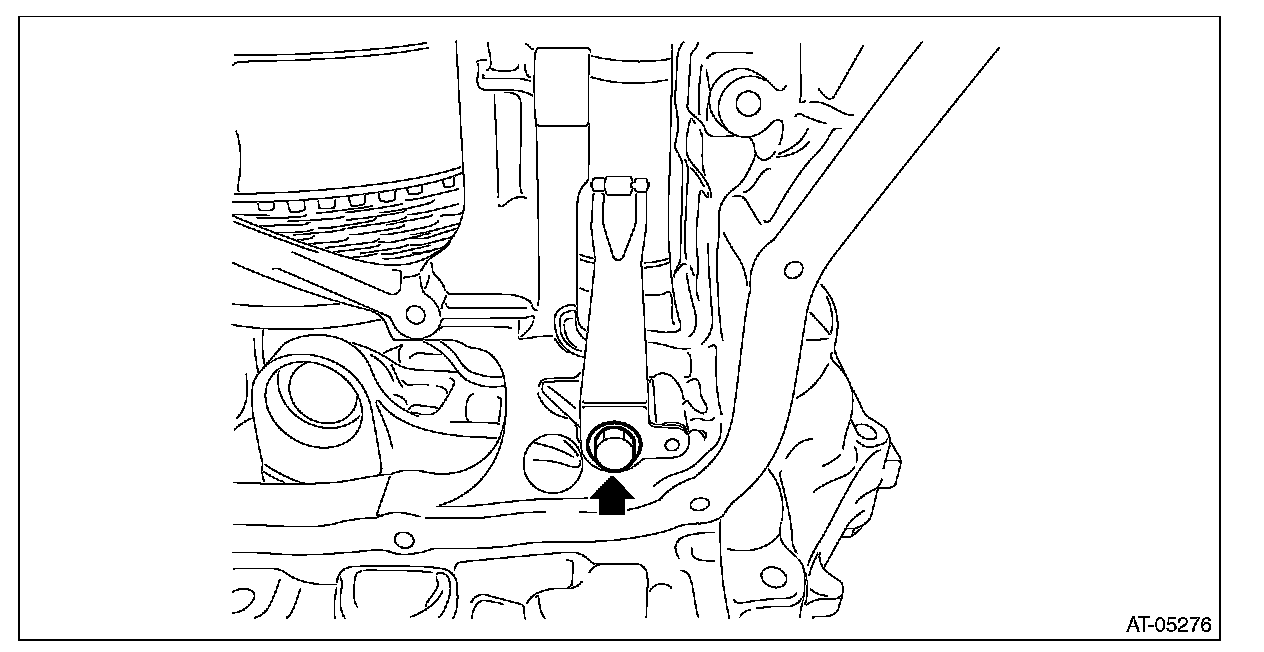

4) Remove the spring pin.
NOTE:
Prevent the spring pin from dropping in the transmission using paper towel etc.

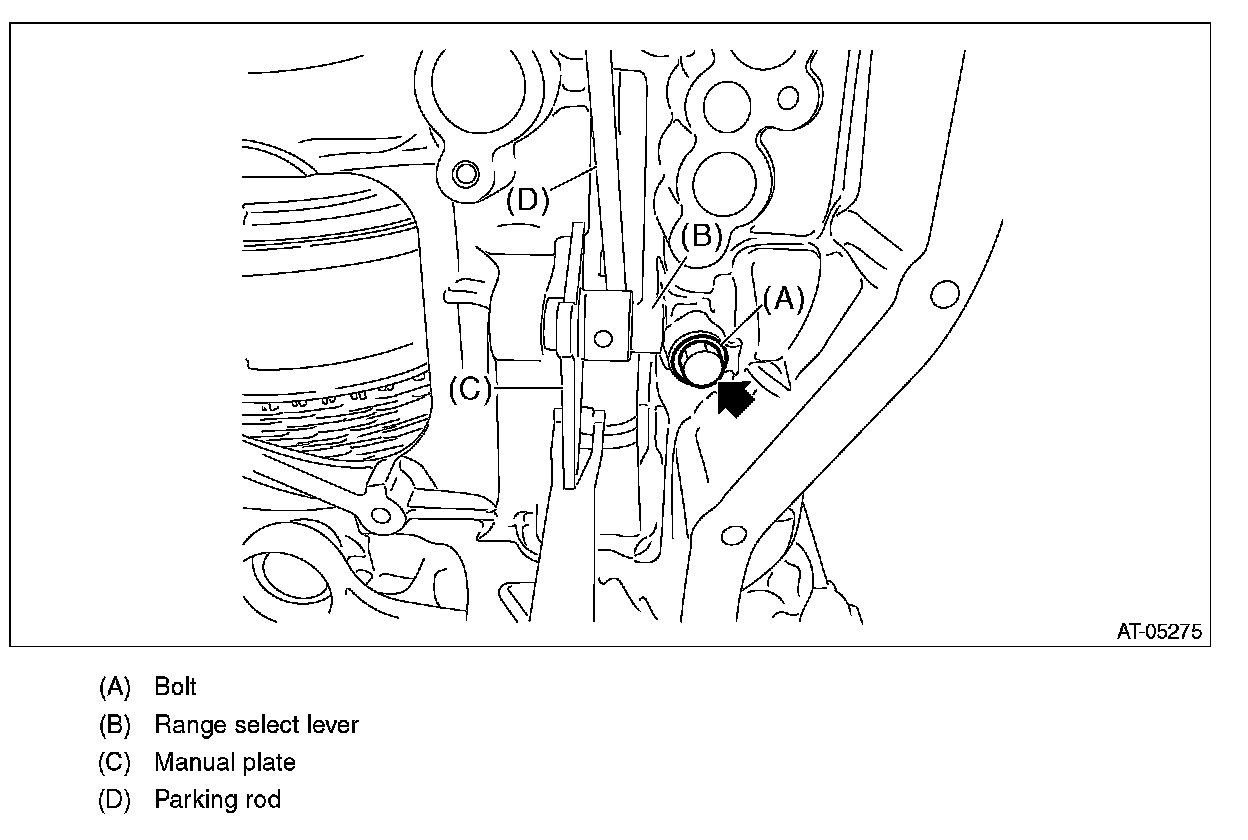

5) Remove the bolt and remove the range select lever, manual plate and parking rod.
NOTE:
Do not damage the lip of oil seal press-fitted in the case.

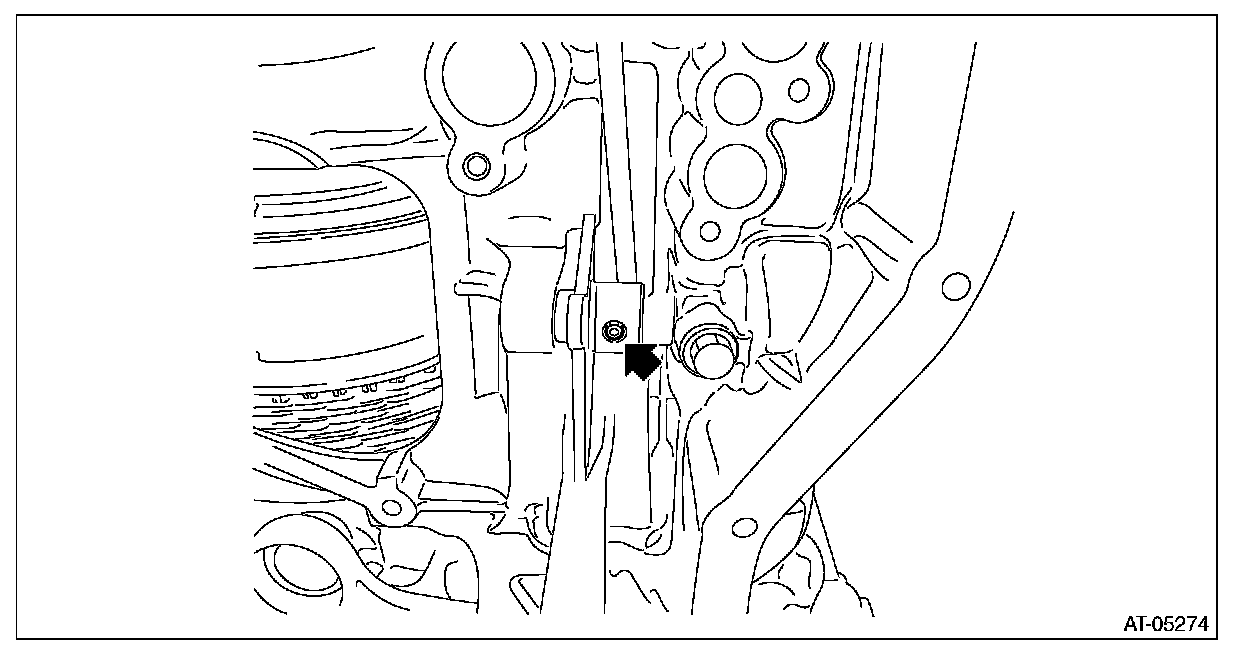

6) Remove the detent spring.
INSTALLATION

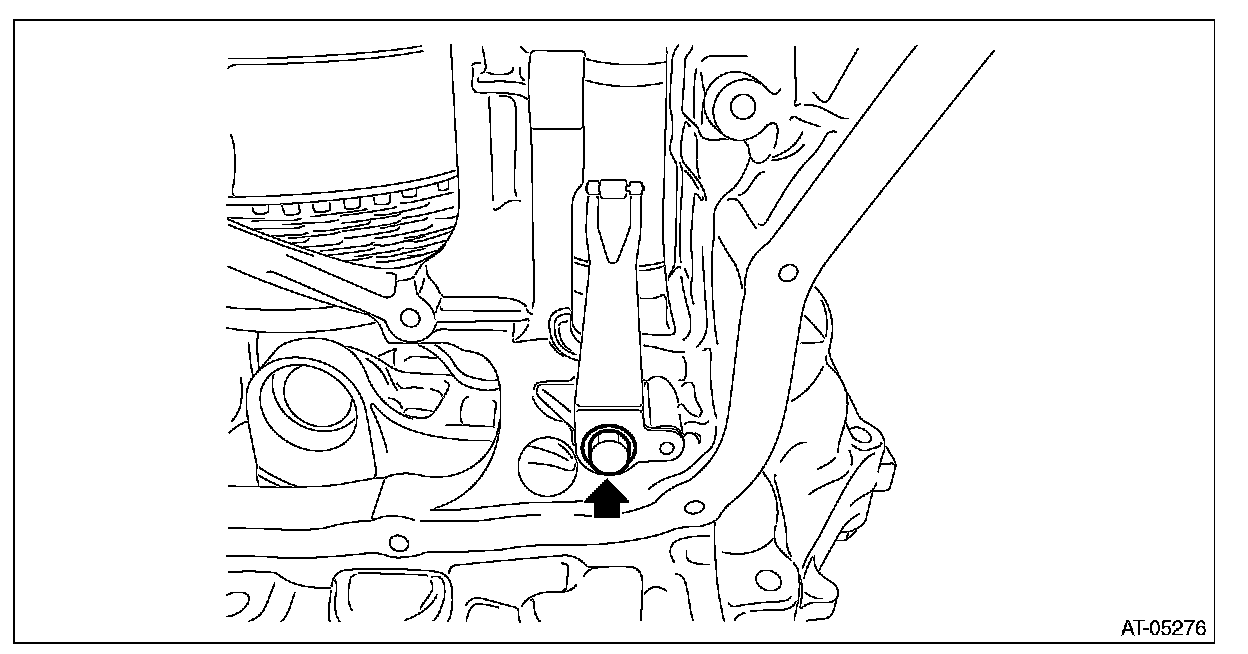

1) Install the detent spring to the transmission case.
Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)

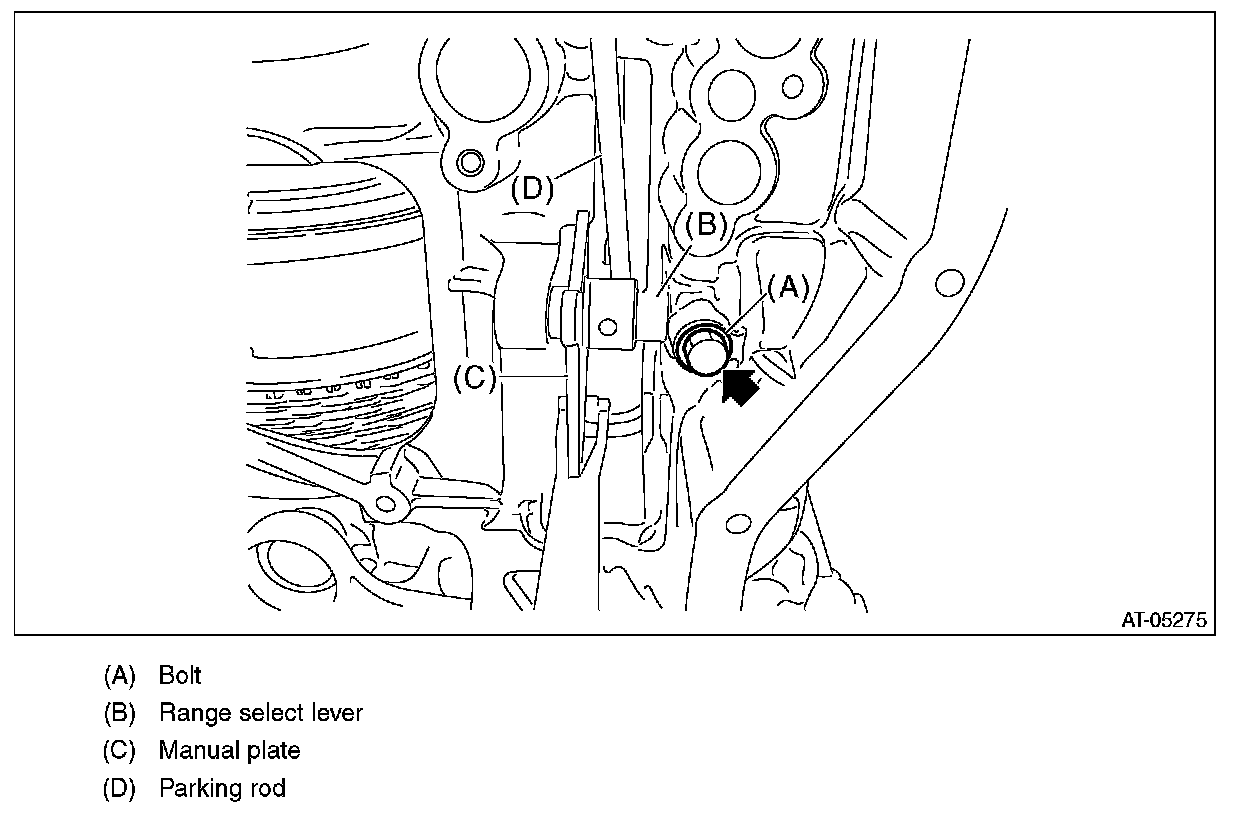

2) Install the manual plate, parking rod, range select lever and bolt.
Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)
3) Install the spring pin.
NOTE:
Use new spring pin.
4) Install the inhibitor switch.
5) Adjust the inhibitor switch.
6) Install the control valve body and oil pan.
7) Install the transmission assembly to the vehicle.
INSPECTION
Make sure that the manual lever and detent spring are not worn or otherwise damaged.
