Remote Control Mirror System

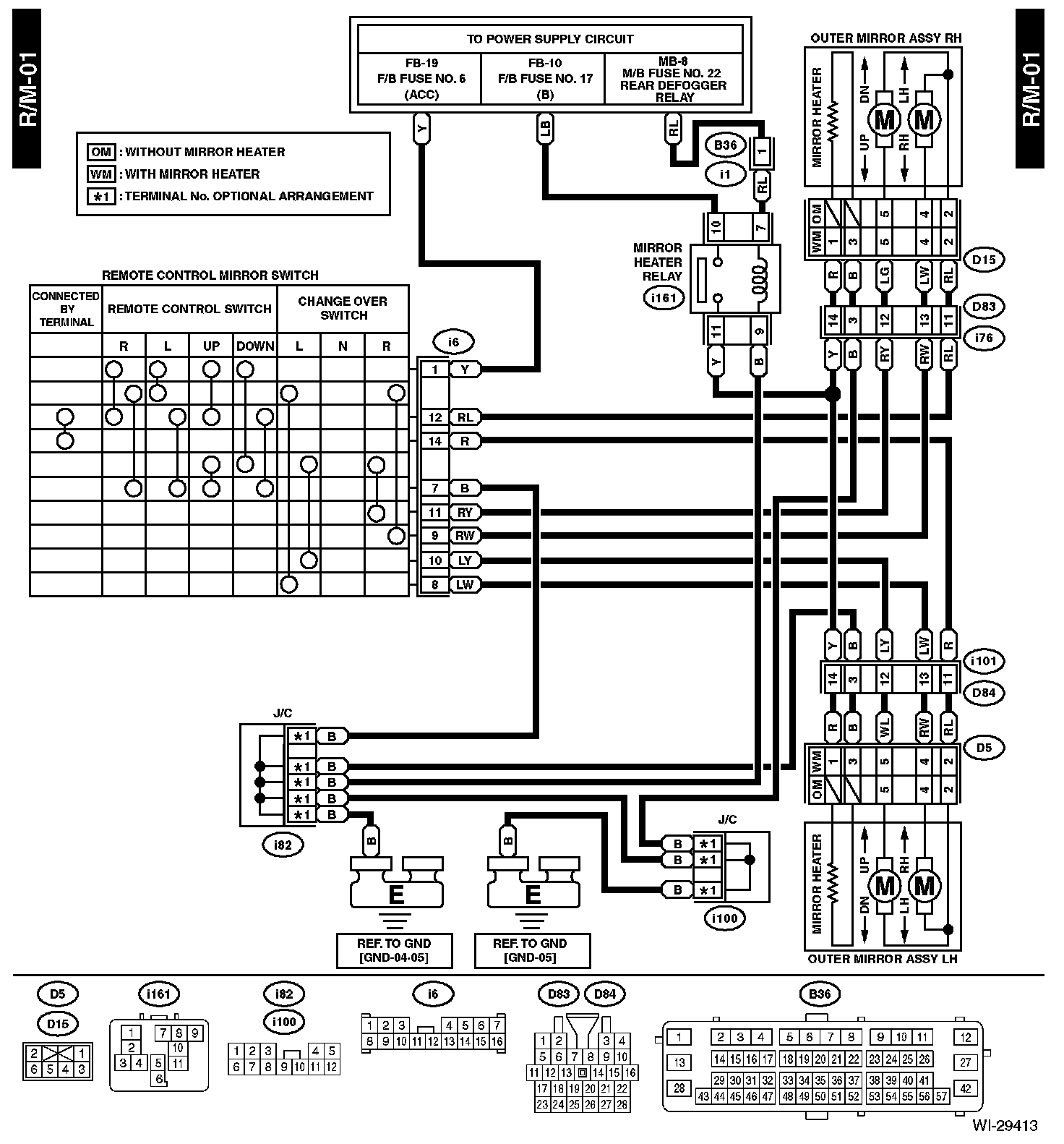

Remote Control Mirror SystemWithout Electric Retraction System

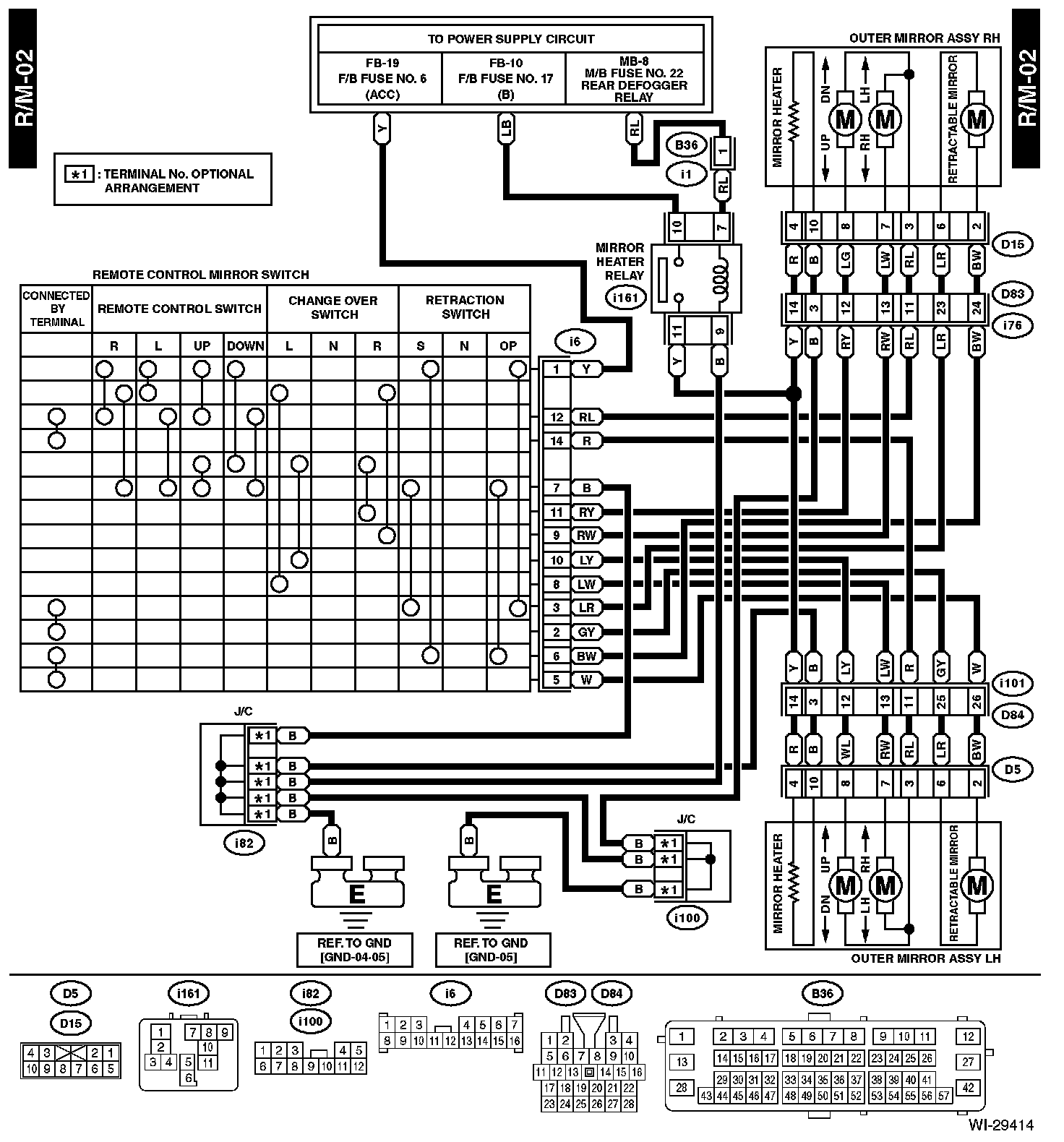

With Electric Retraction System
Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
