Exploded Views

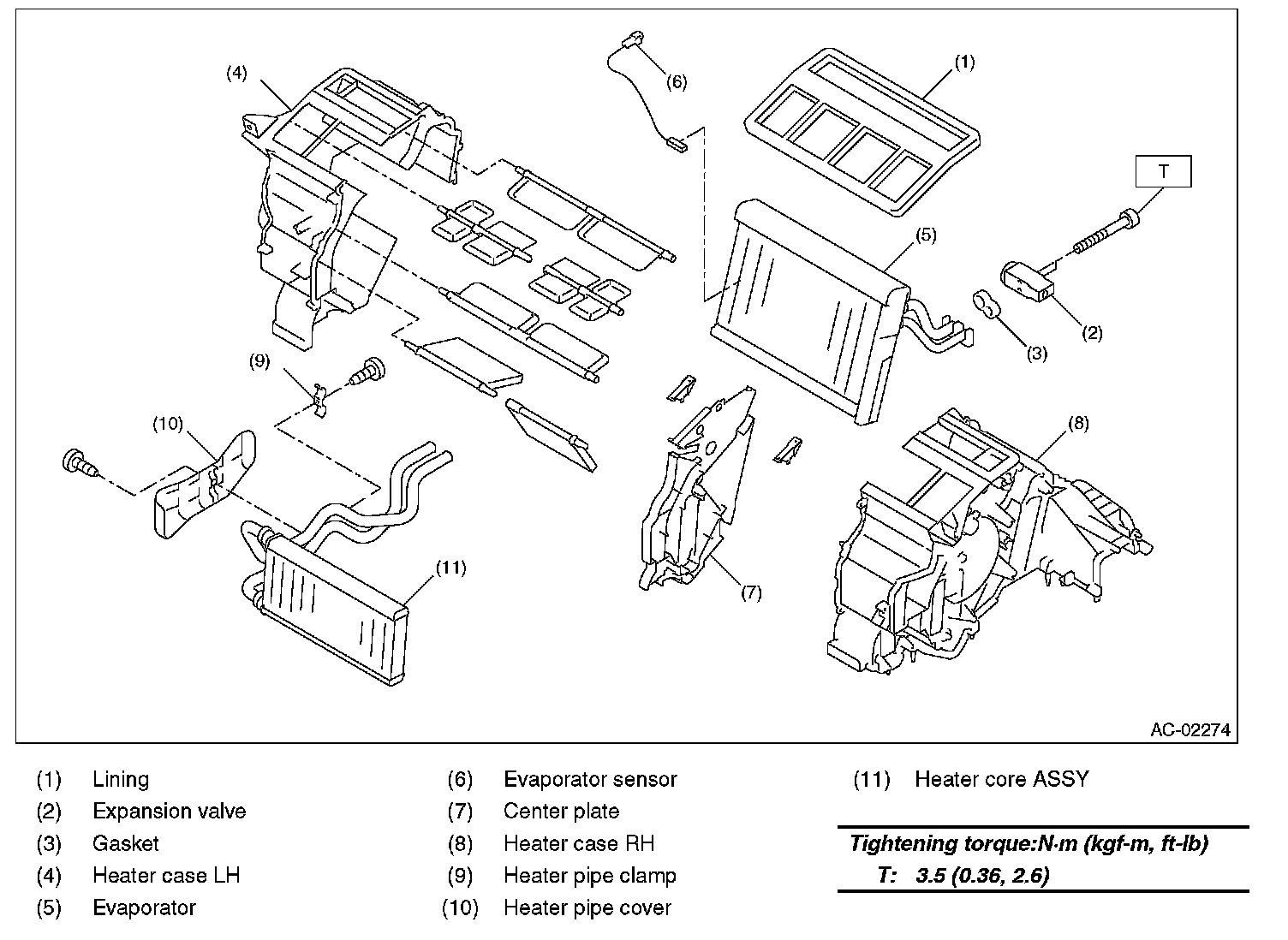

Compartment1. HEATER COOLING UNIT

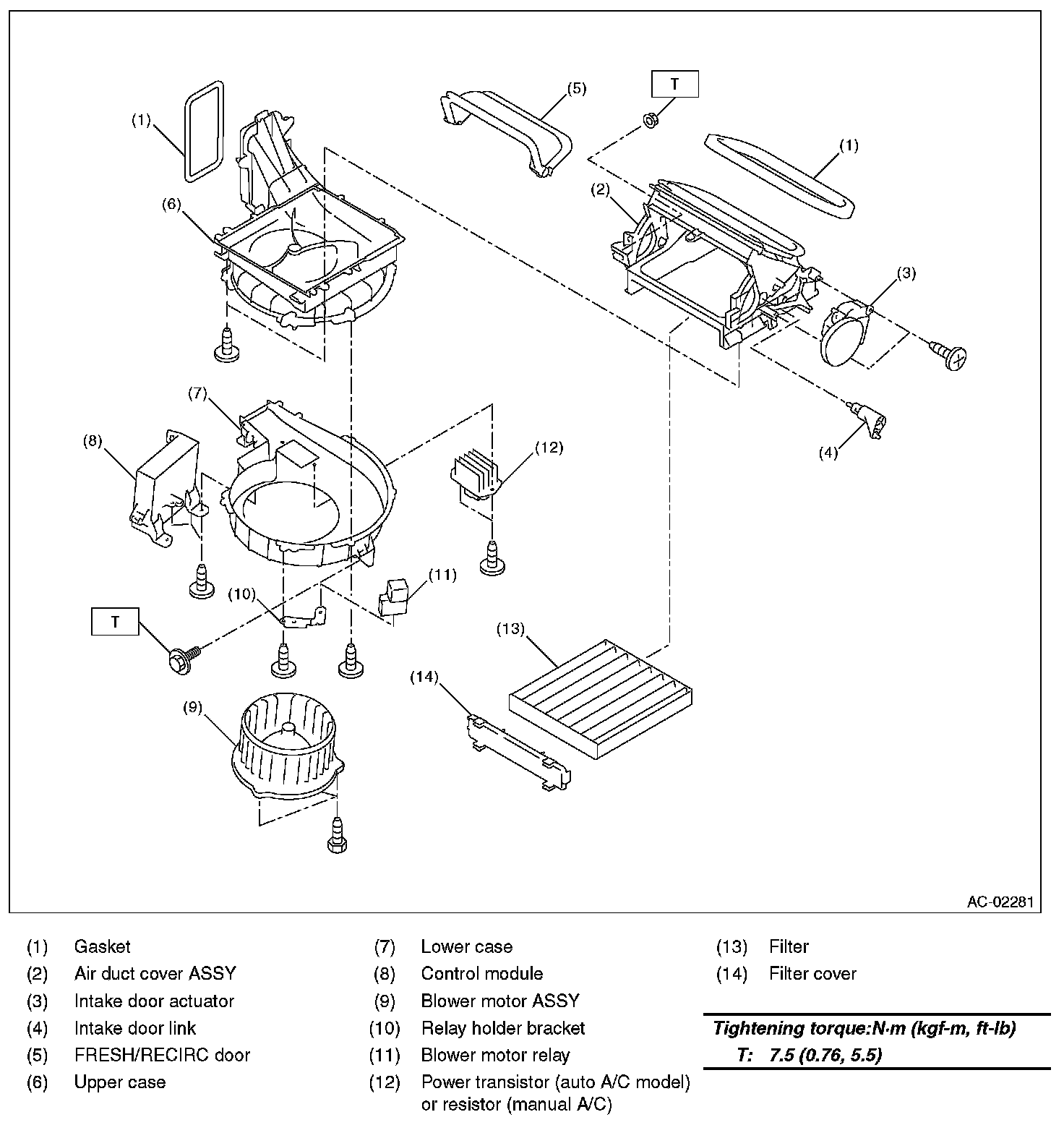

2. BLOWER MOTOR UNIT

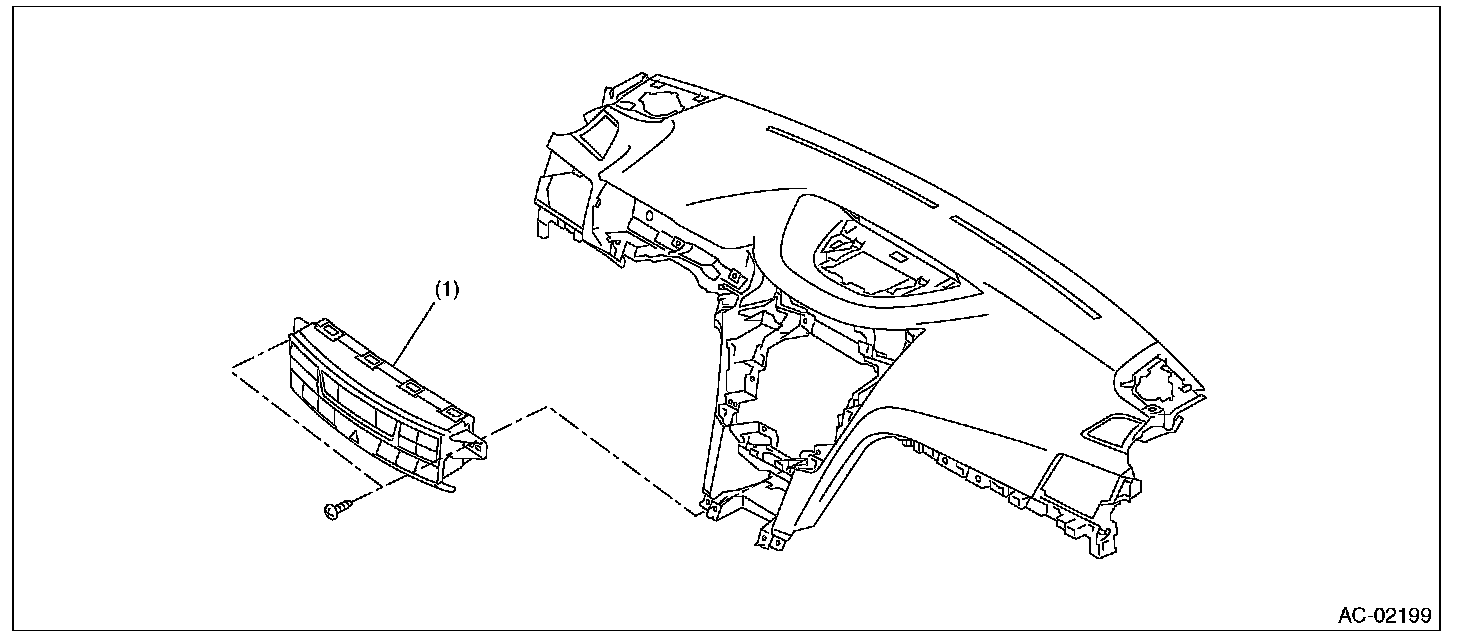

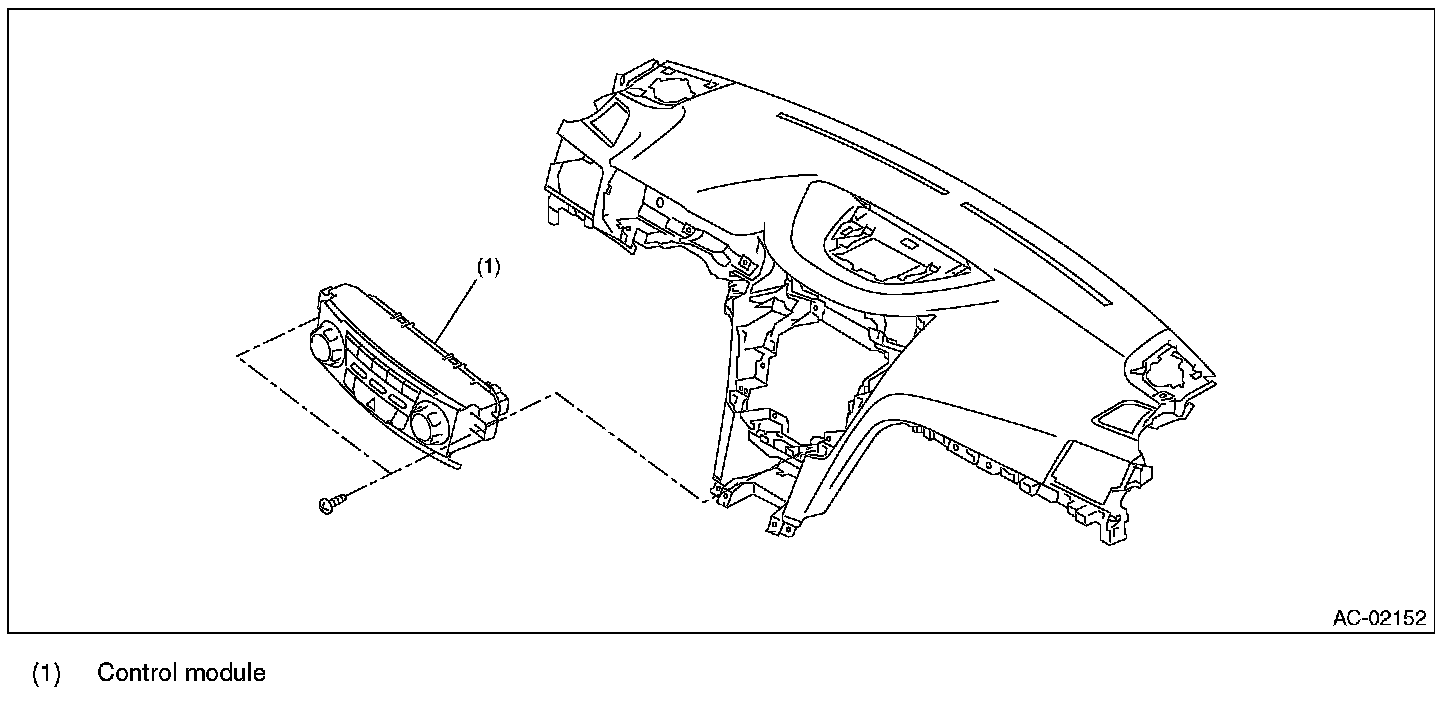

3. CONTROL MODULE
- AUTO A/C MODEL
- MANUAL A/C MODEL

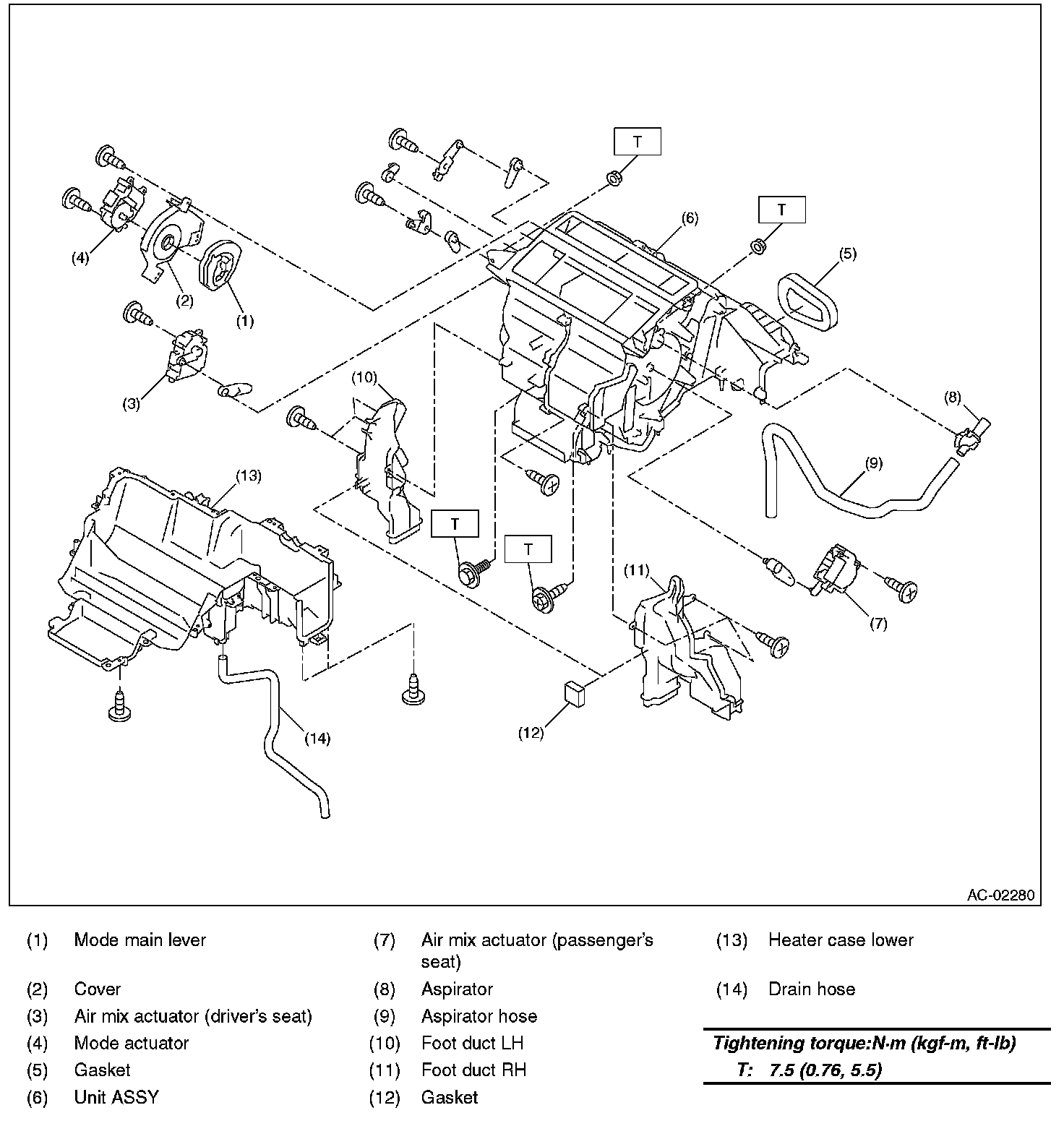

4. AIR CONDITIONING UNIT

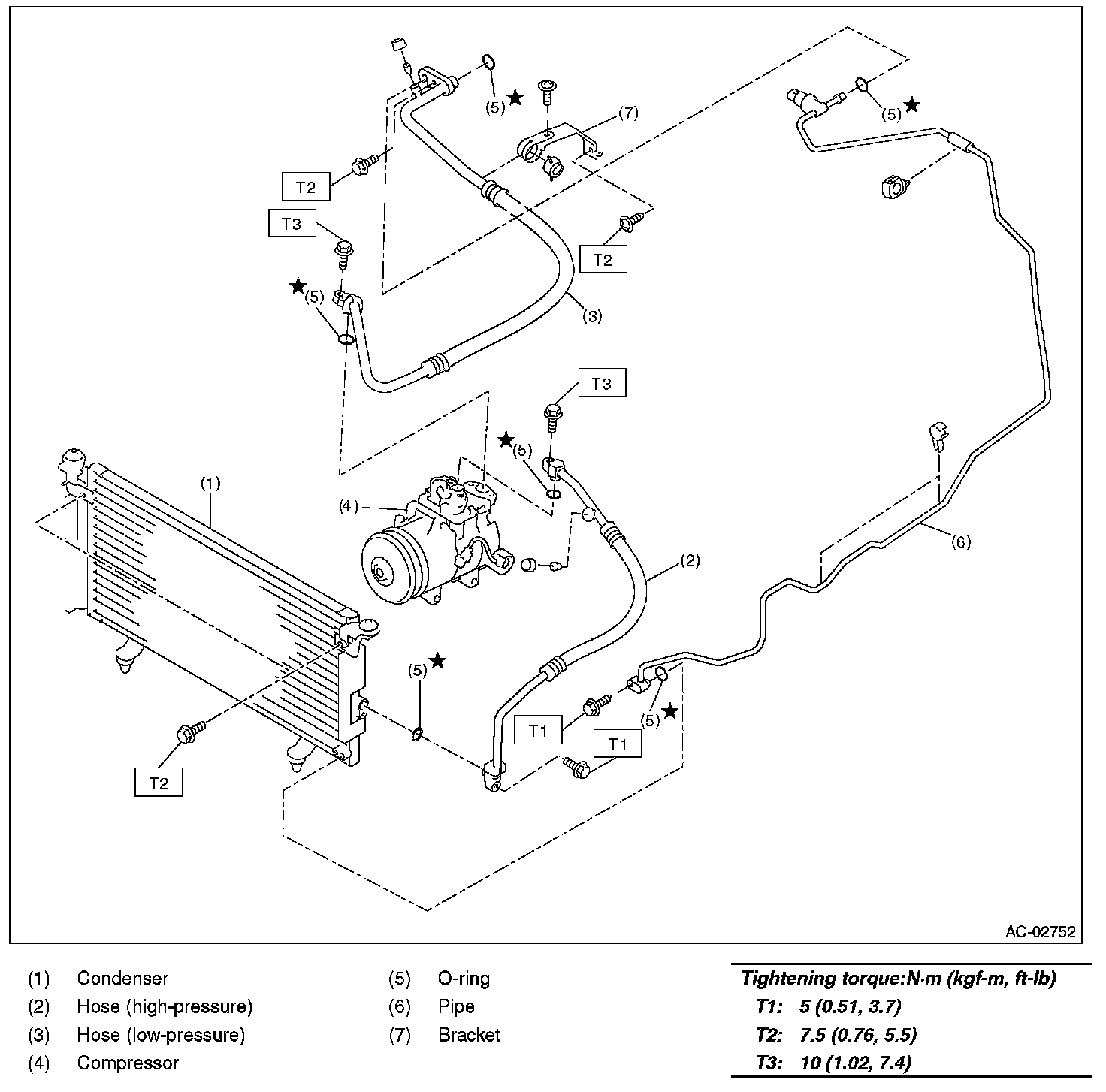

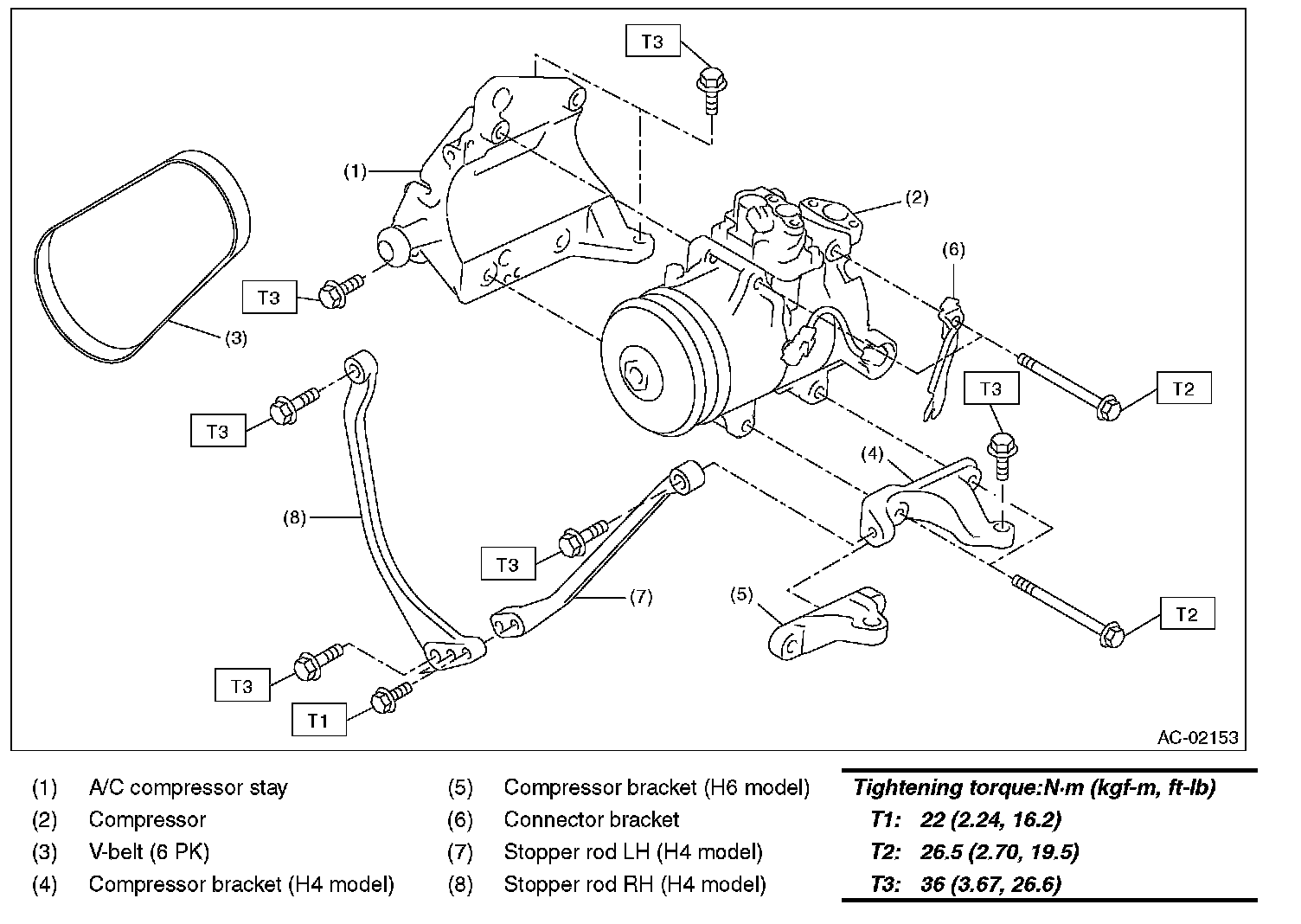

5. COMPRESSOR

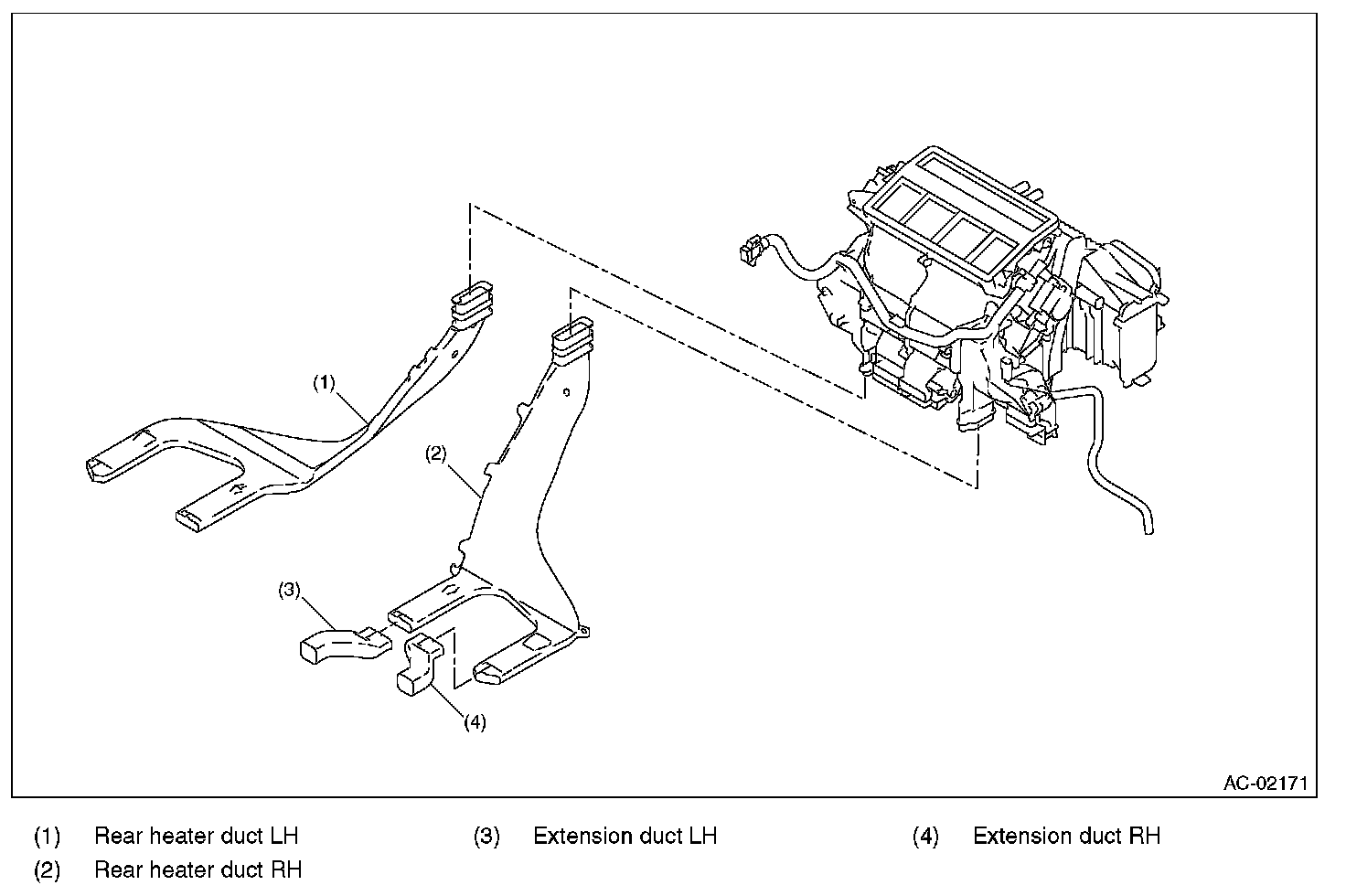

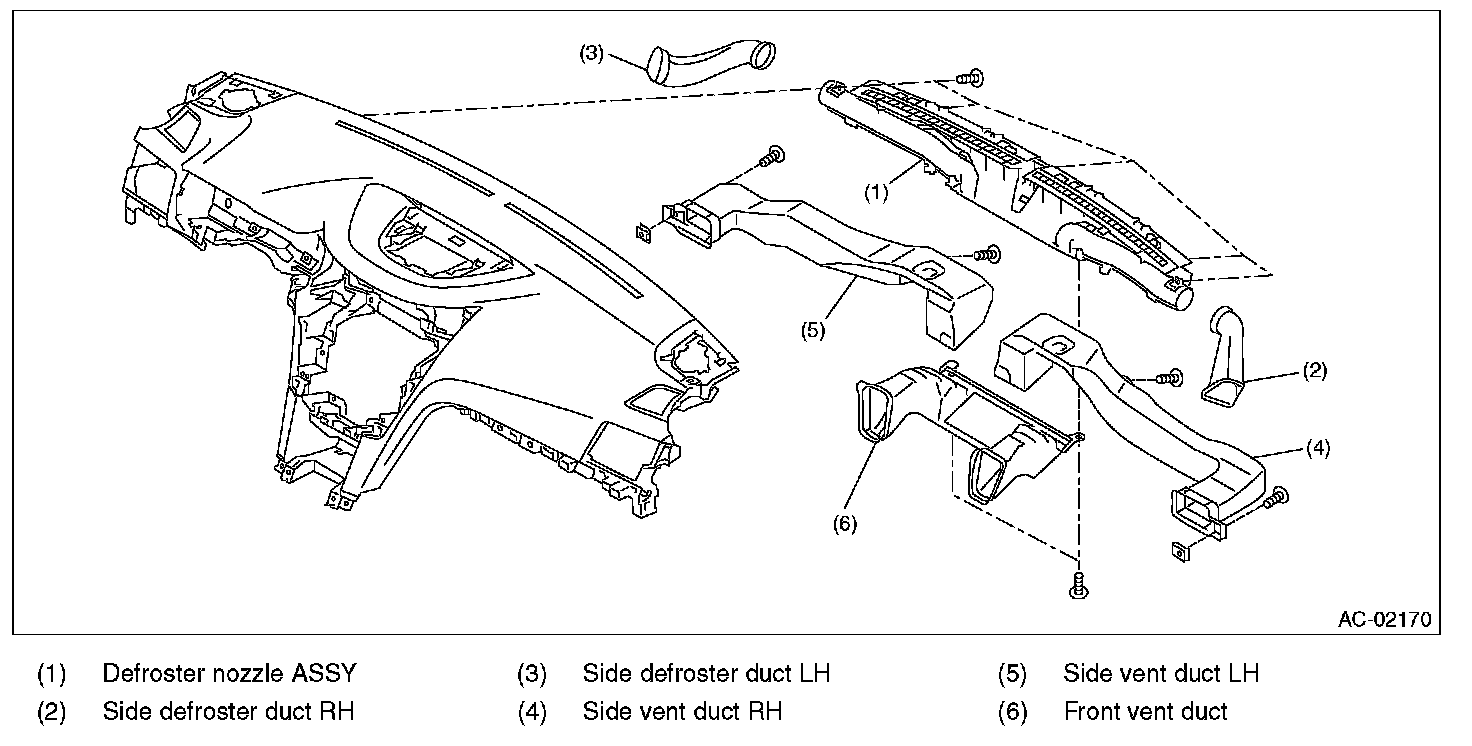

6. HEATER DUCT
1. HEATER COOLING UNIT
2. BLOWER MOTOR UNIT
3. CONTROL MODULE
- AUTO A/C MODEL
- MANUAL A/C MODEL
4. AIR CONDITIONING UNIT
5. COMPRESSOR
6. HEATER DUCT
