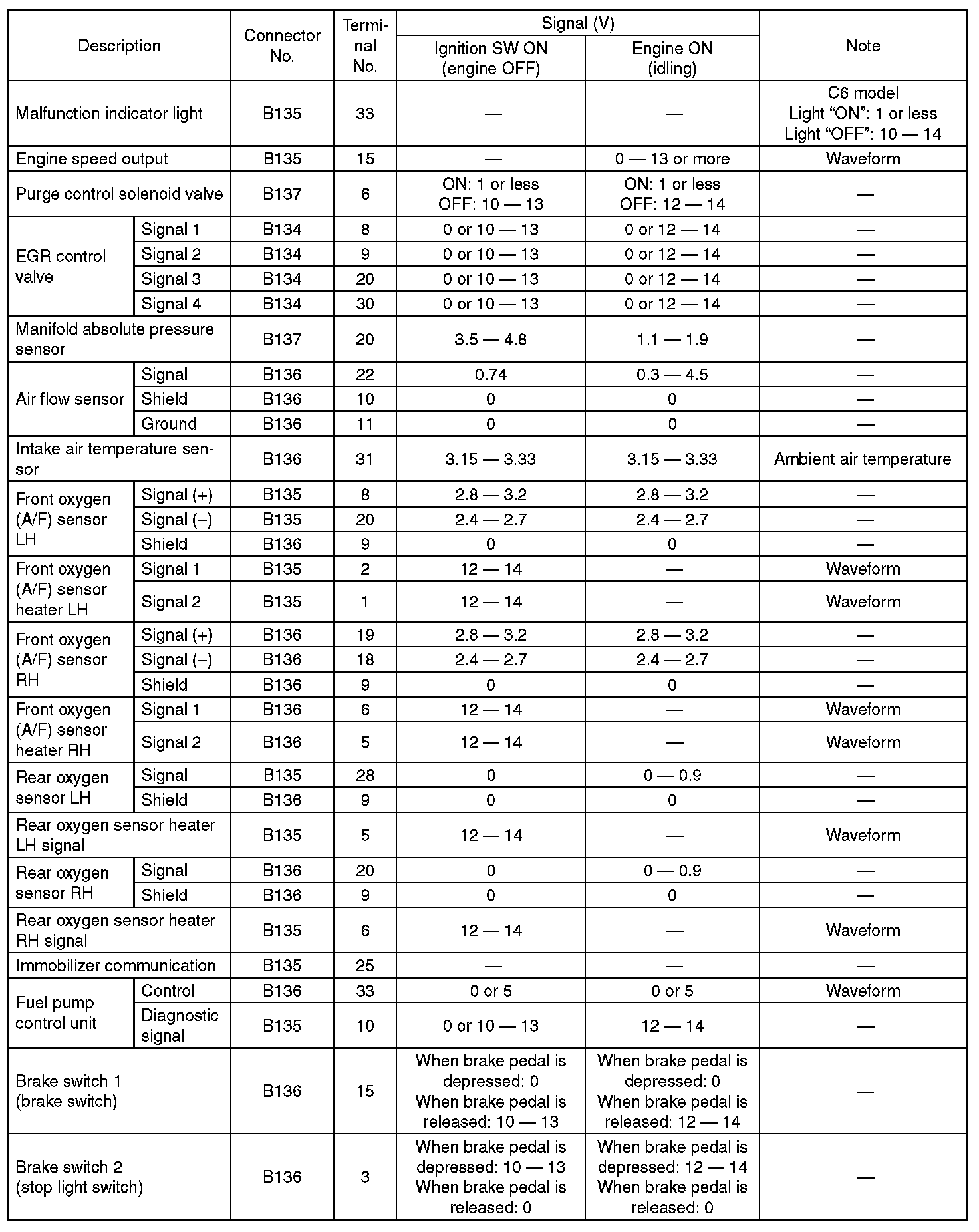

Pinout Values and Diagnostic Parameters

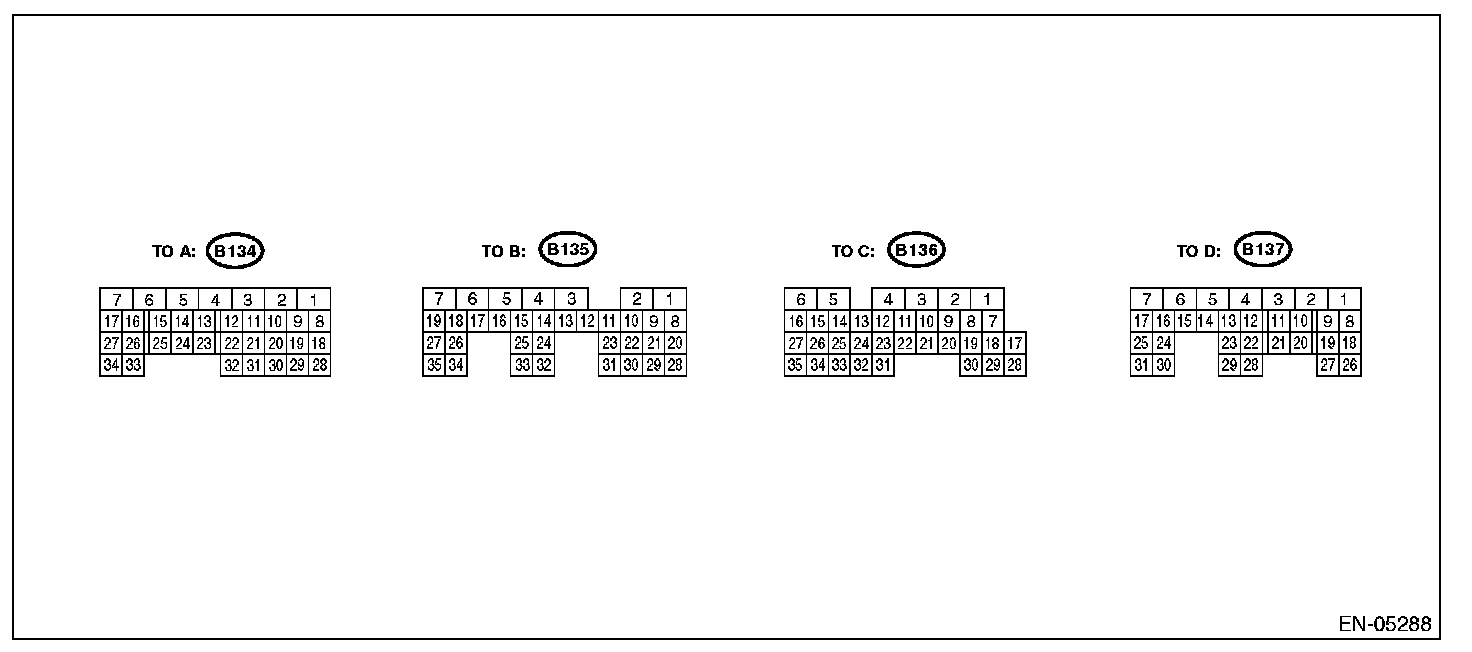

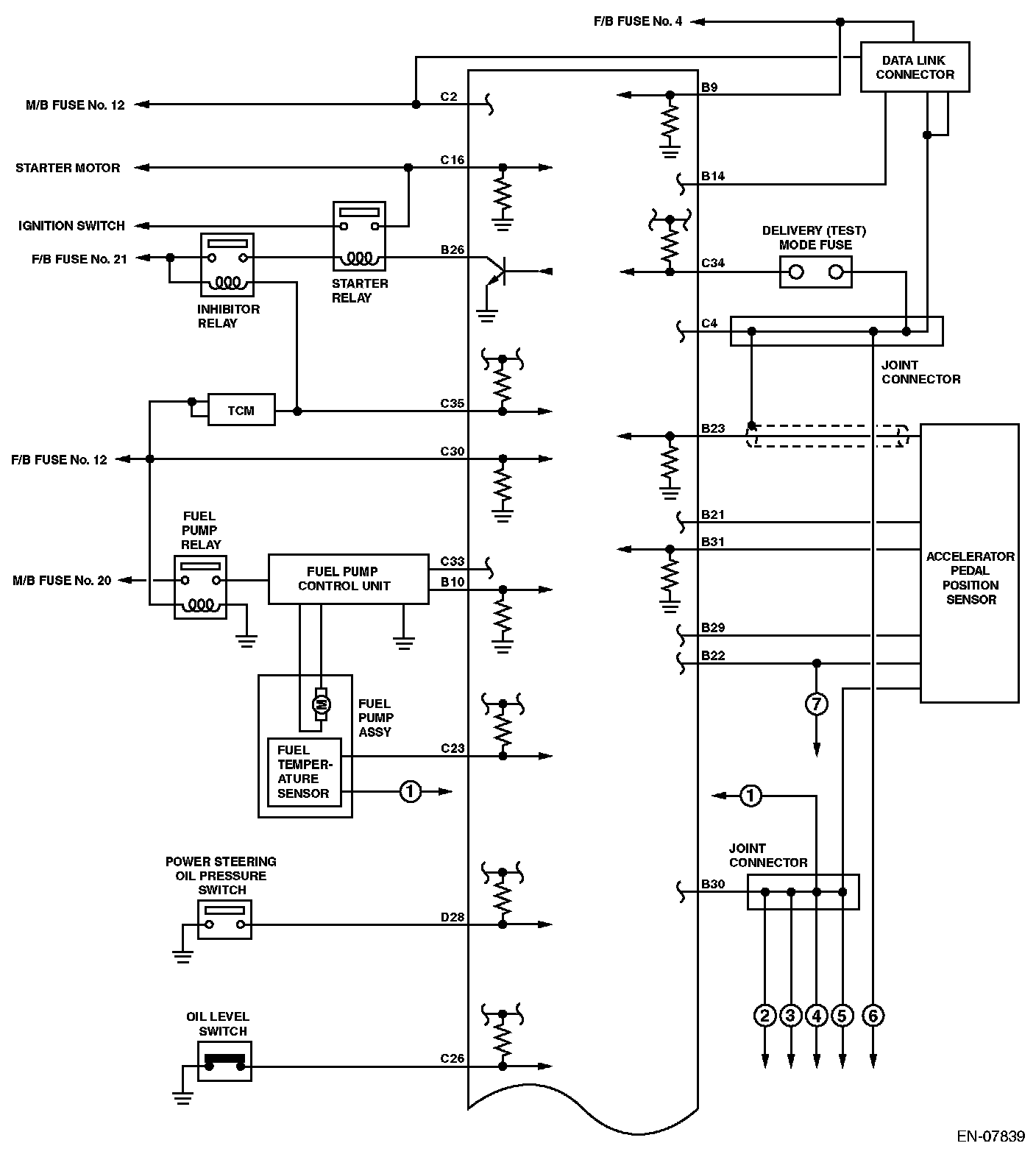

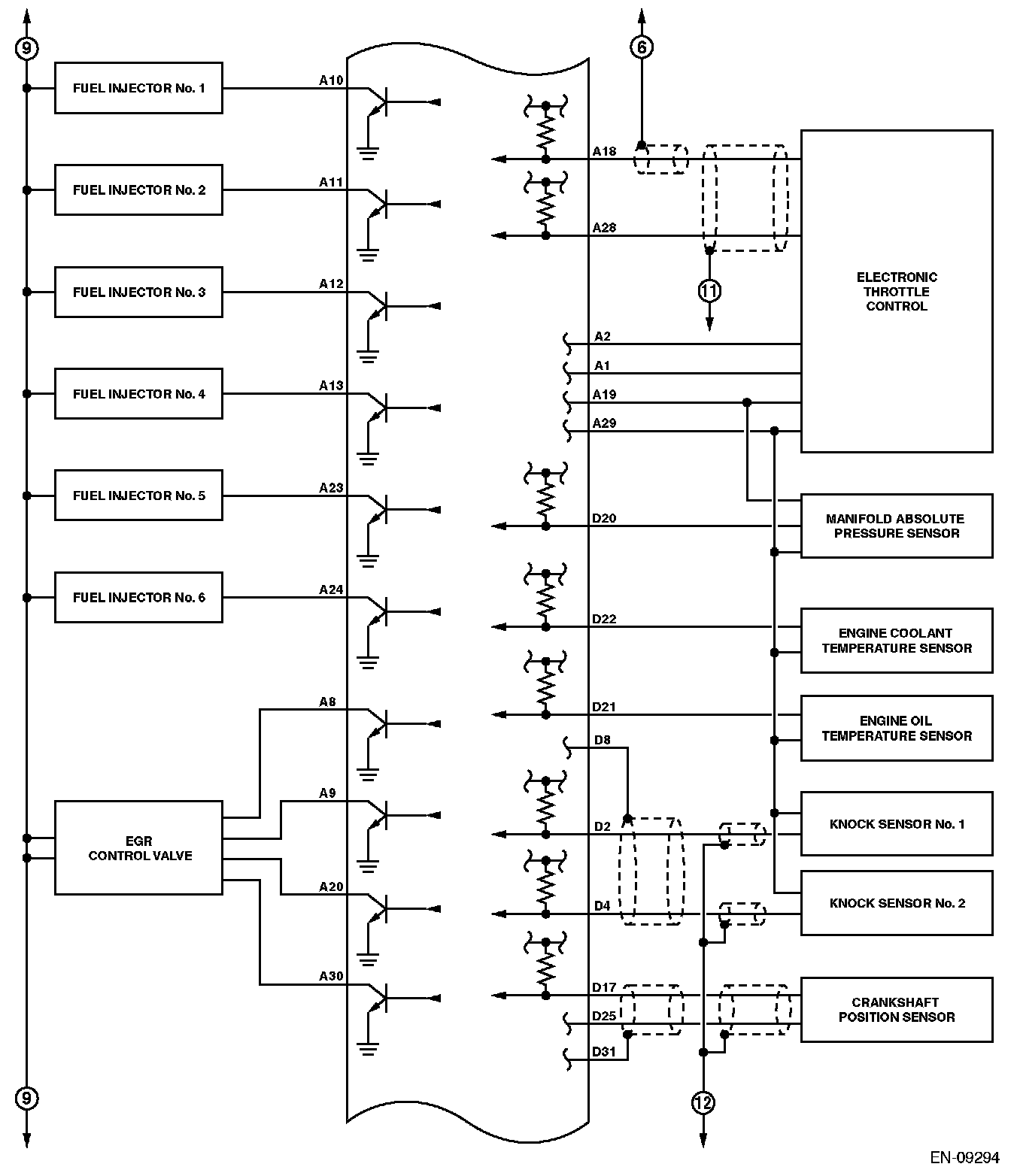

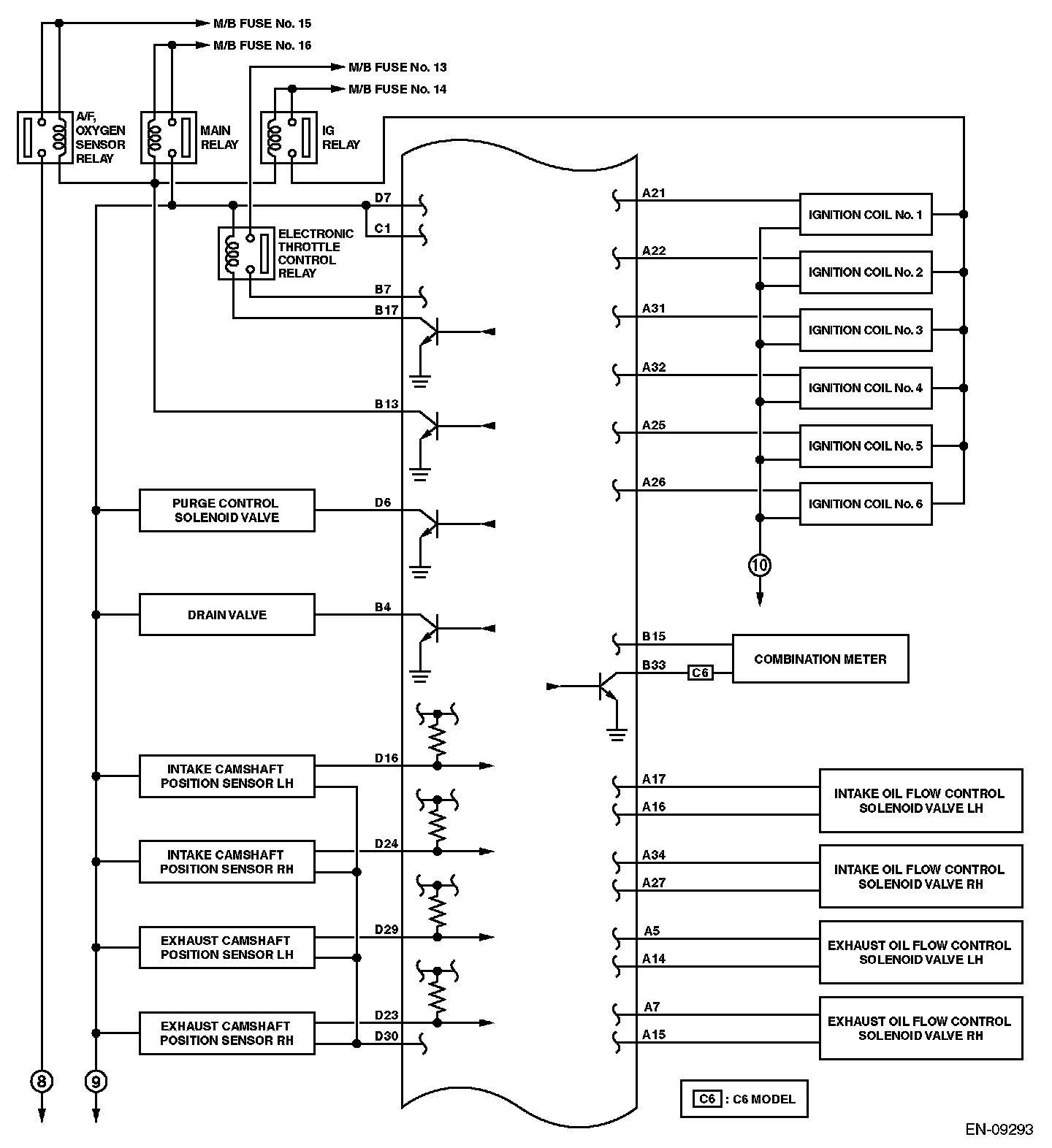

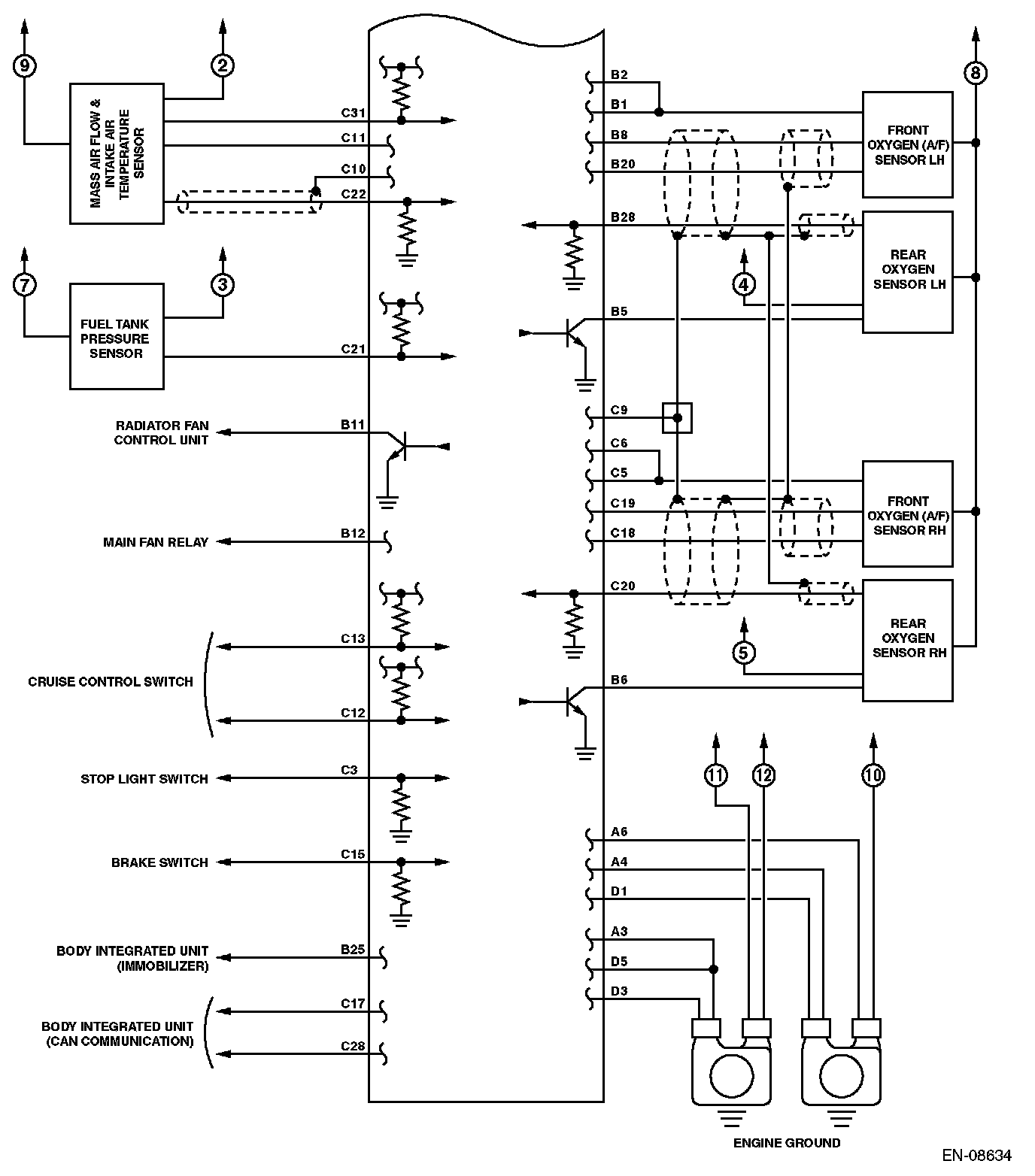

Engine Control Module (ECM) I/O Signal

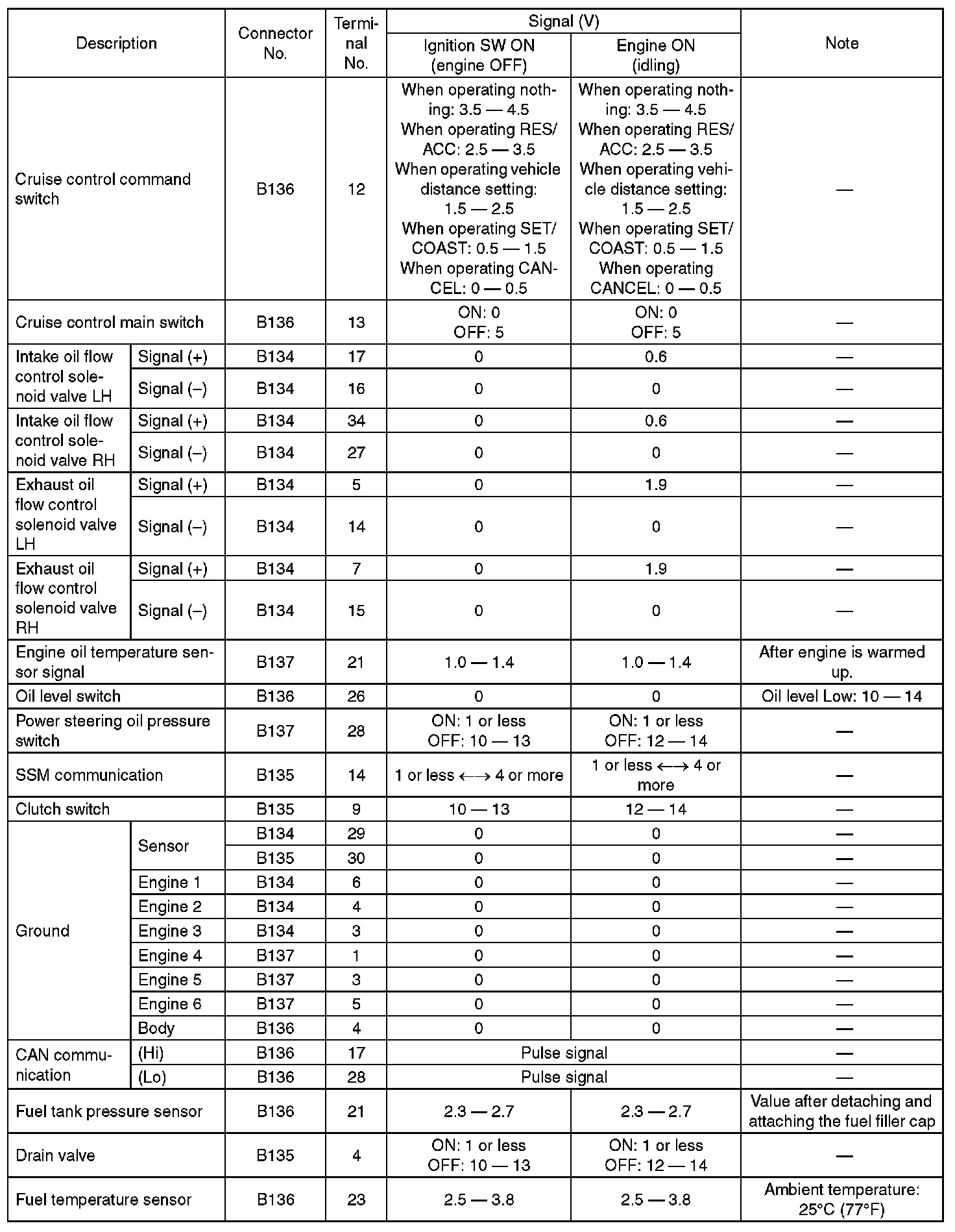

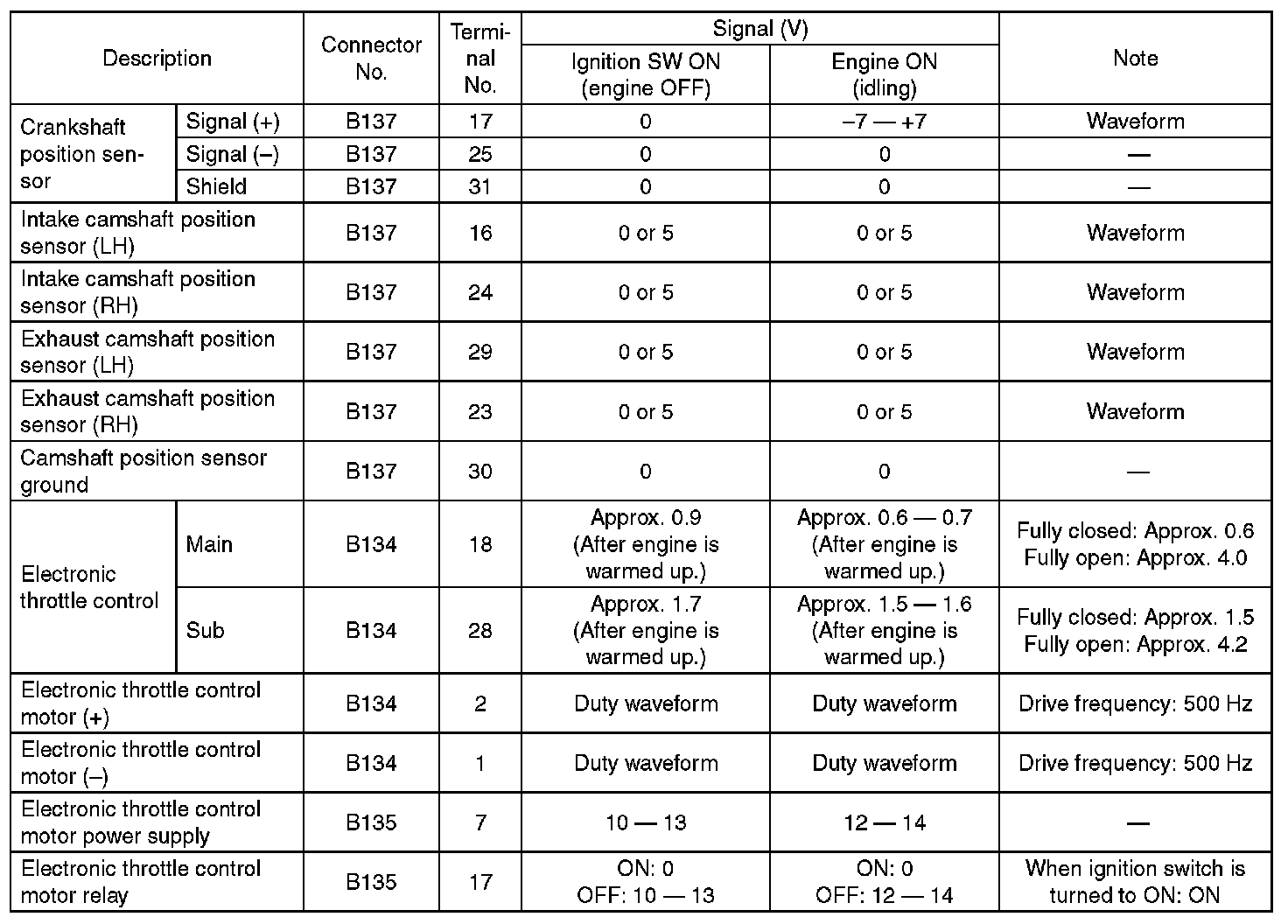

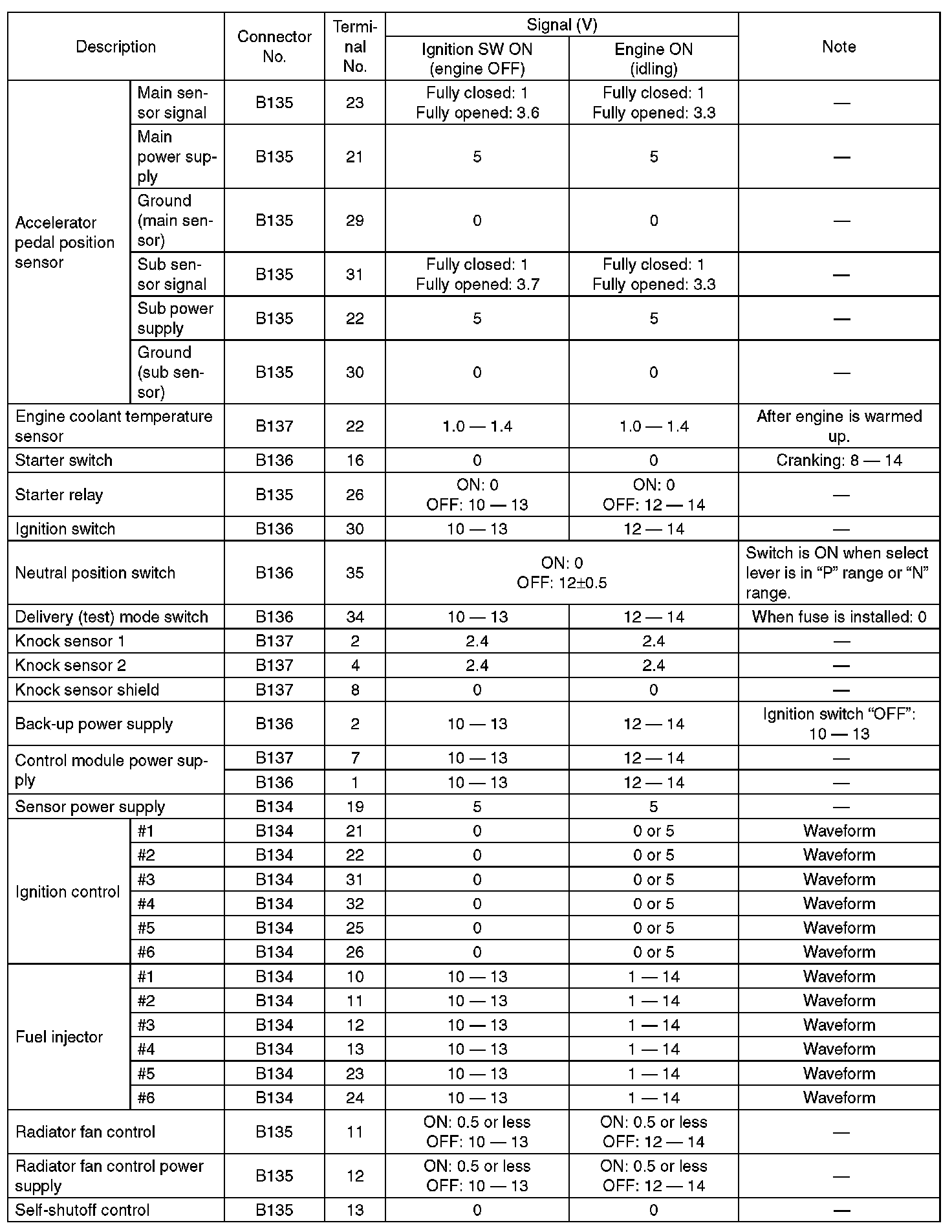

ELECTRICAL SPECIFICATION



















Input/output name:
- Crankshaft position sensor
- Intake camshaft position sensor RH
- Intake camshaft position sensor LH
- Exhaust camshaft position sensor RH
- Exhaust camshaft position sensor LH

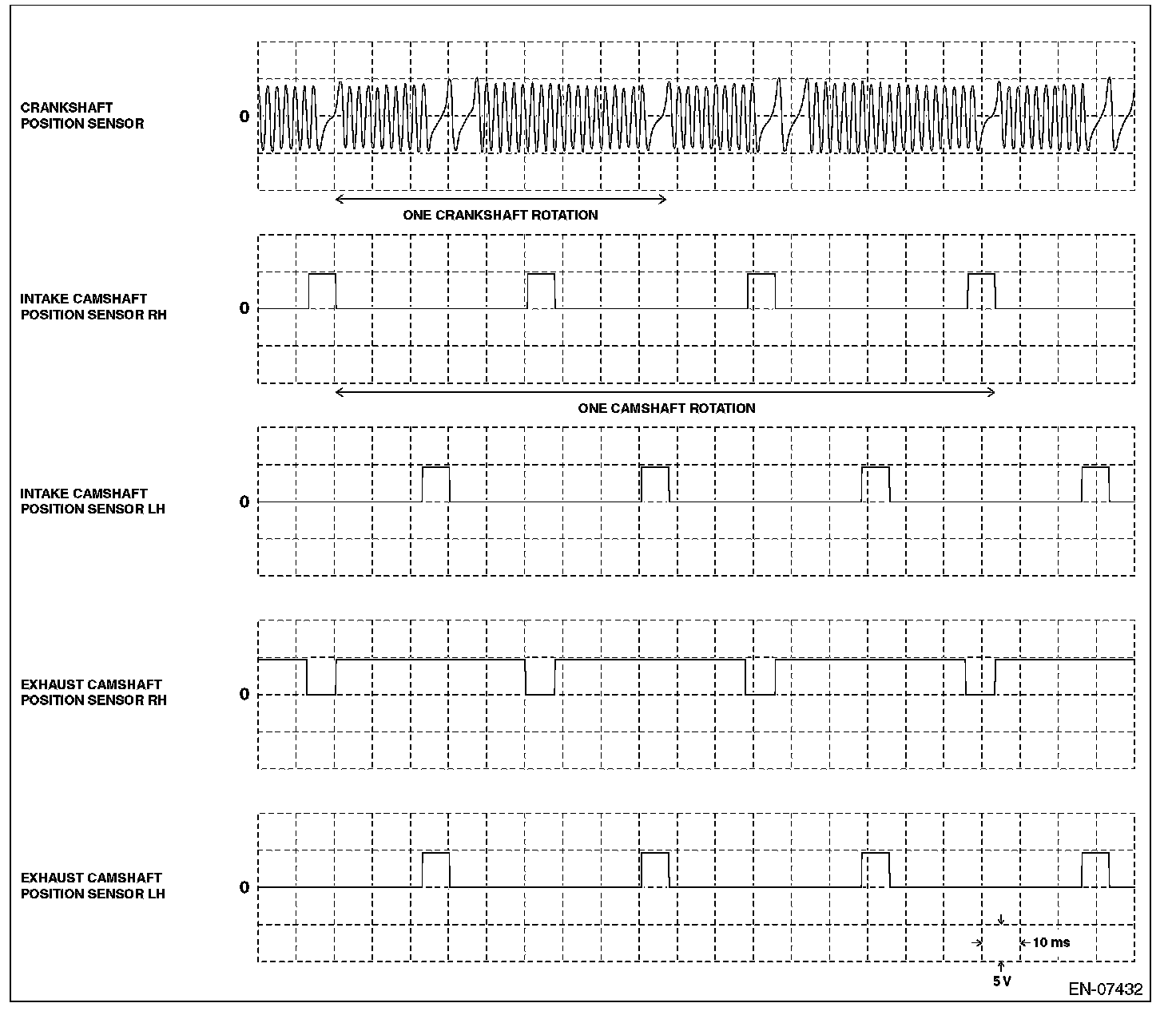

Measuring condition:
- After warming-up
- At idling
