Fuel Level Sensor

Fuel Level Sensor

INSPECTION

1. Check that the fuel level sensor has no damage.

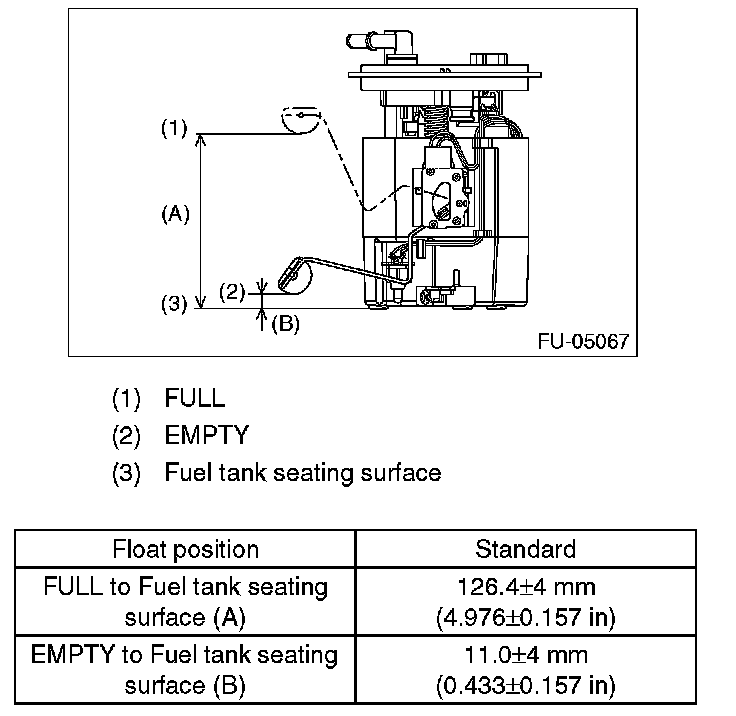

2. Measure the fuel level sensor float position.

NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

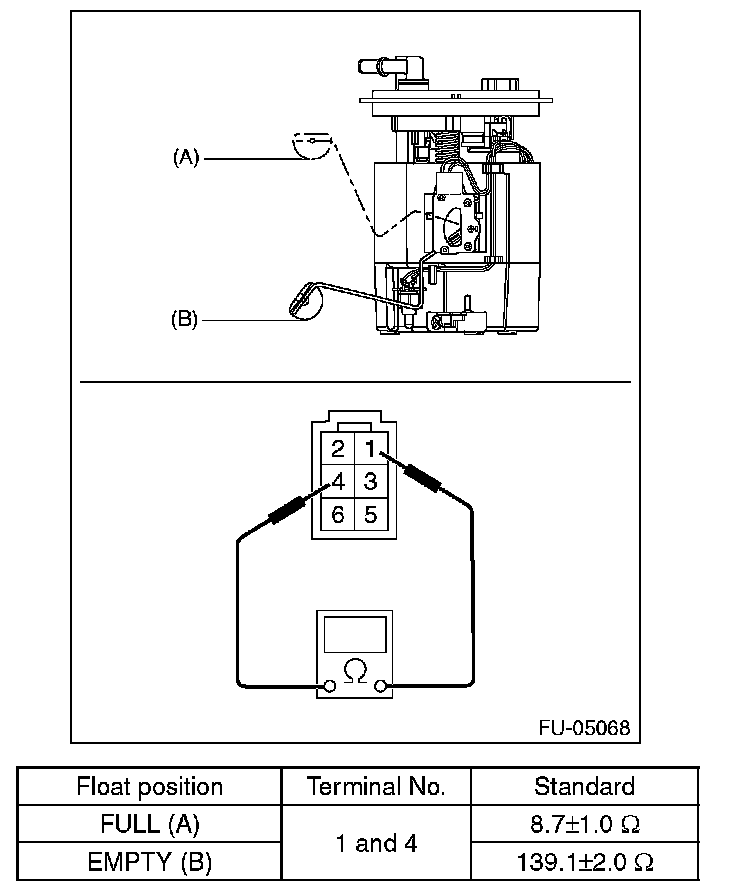

3. Measure the resistance between fuel level sensor terminals.
