3.6 Sub Components

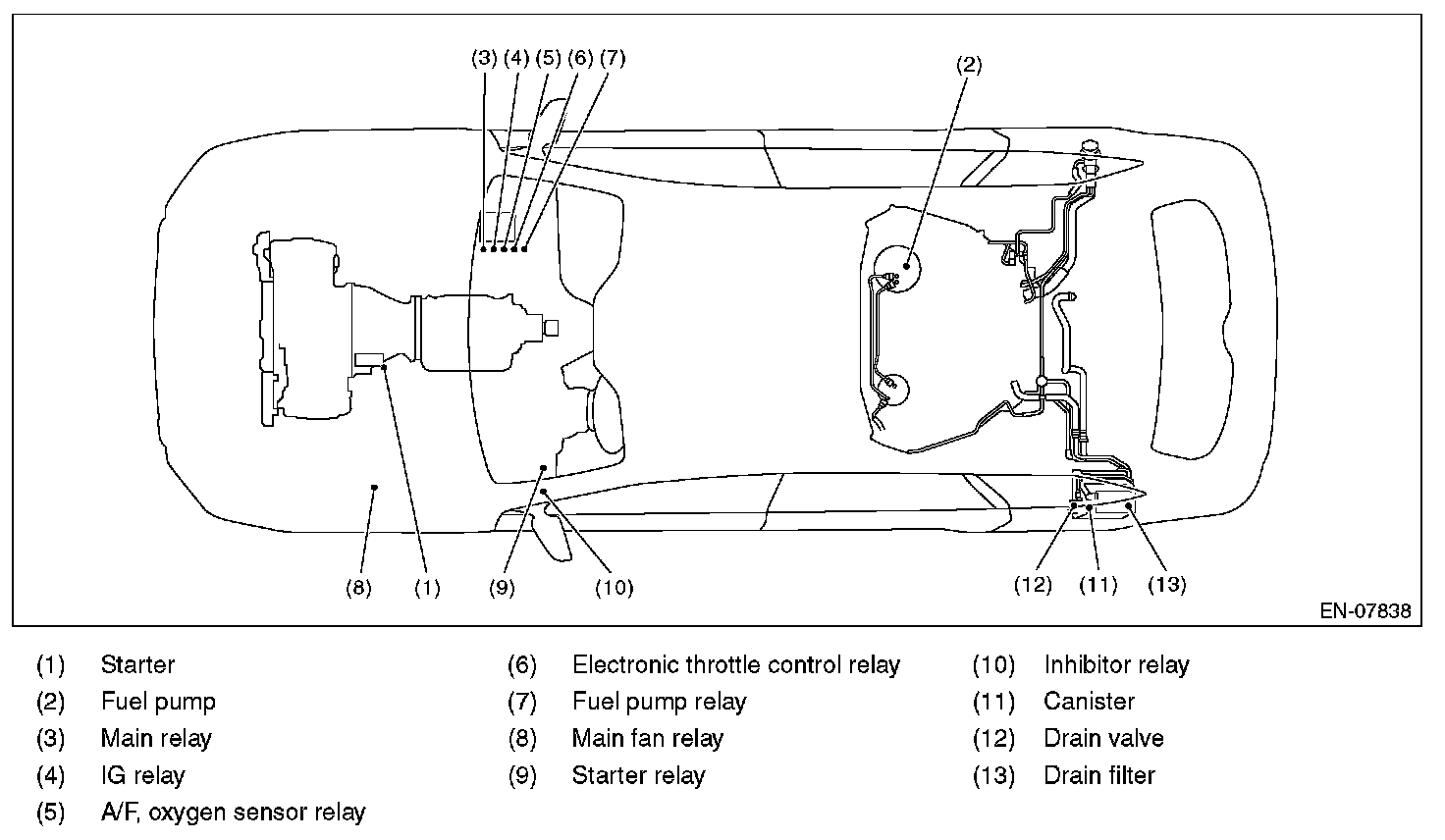

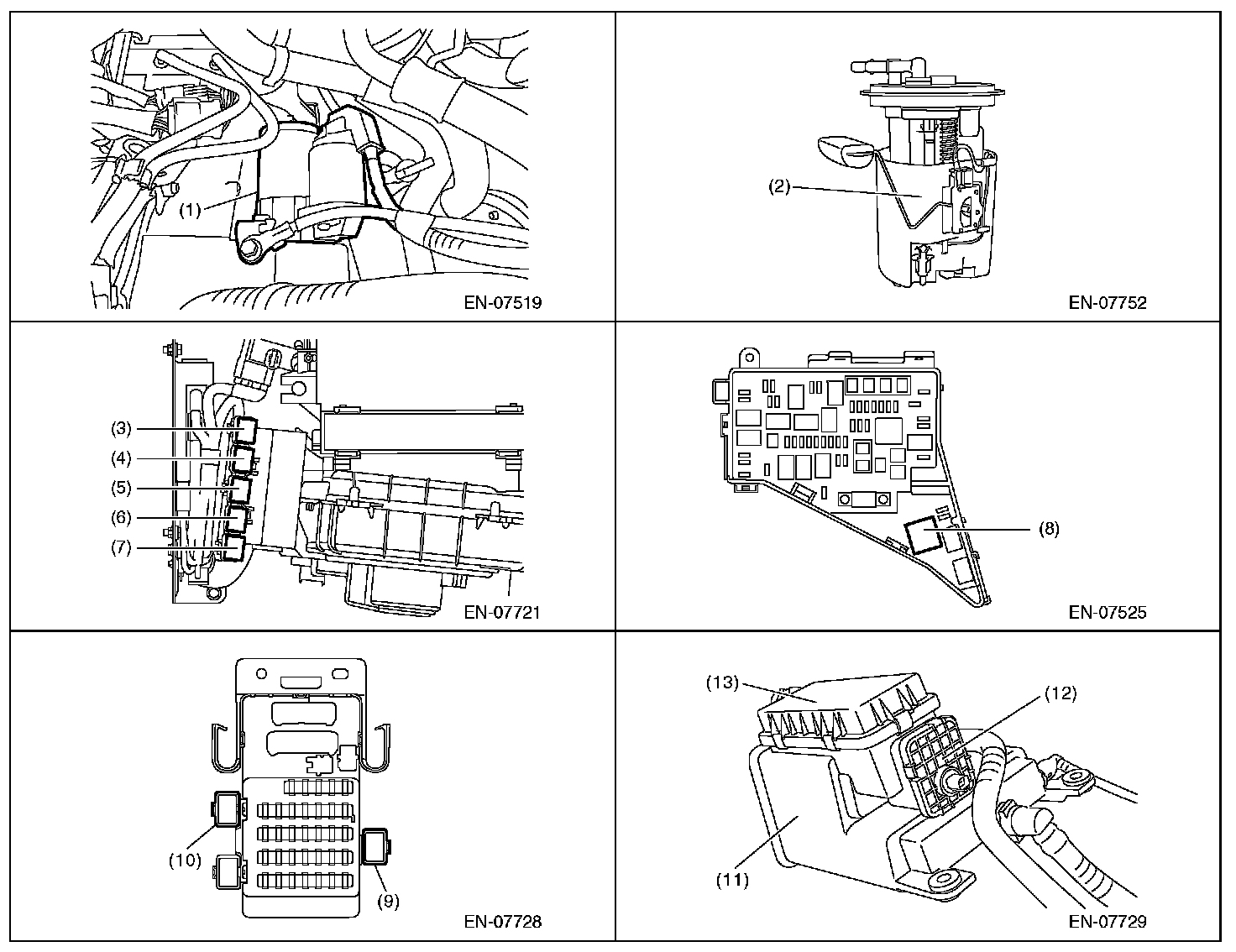

Electrical Component Location

COMPONENT

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
