Main Relay (Computer/Fuel System): Testing and Inspection
Main RelayINSPECTION
1. Check that the main relay has no deformation, cracks or other damages.

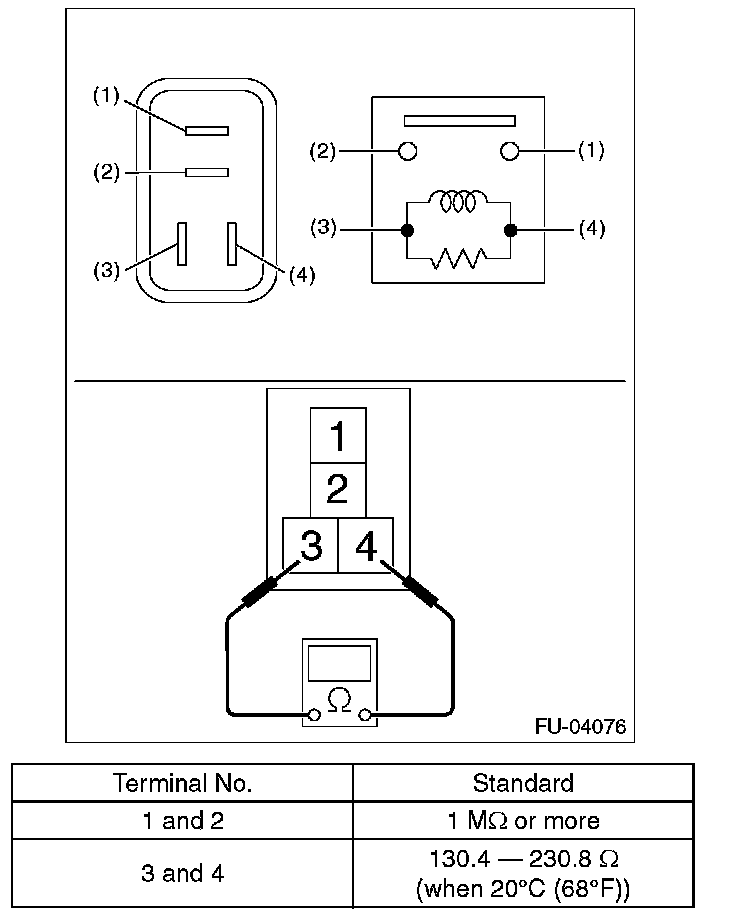

2. Measure the resistance between main relay terminals.

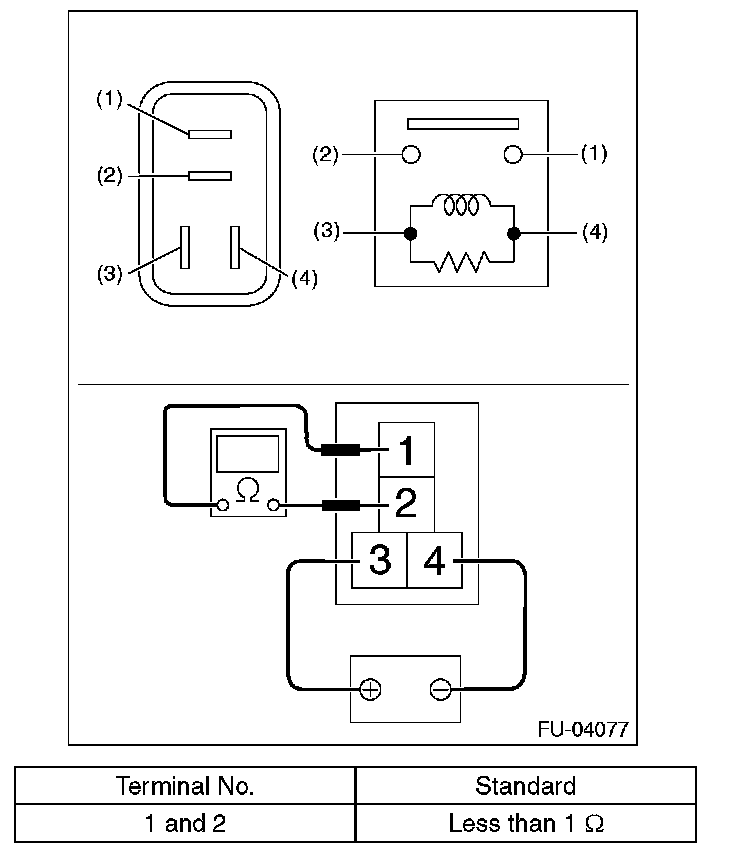

3. Connect battery positive terminal to terminal No. 3 and battery ground terminal to terminal No. 4, and measure the resistance between the main relay terminals.
