Ignition System: Testing and Inspection

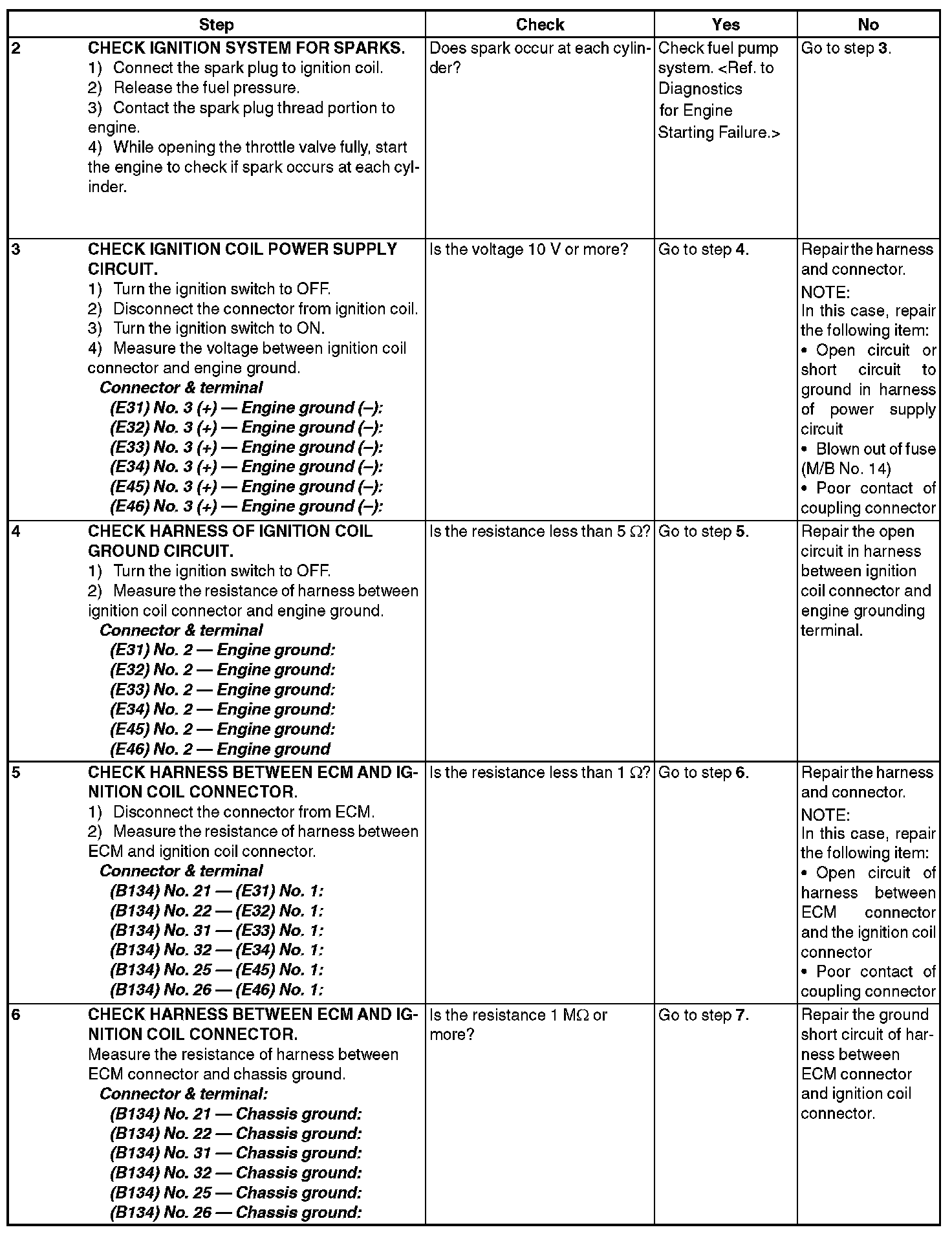

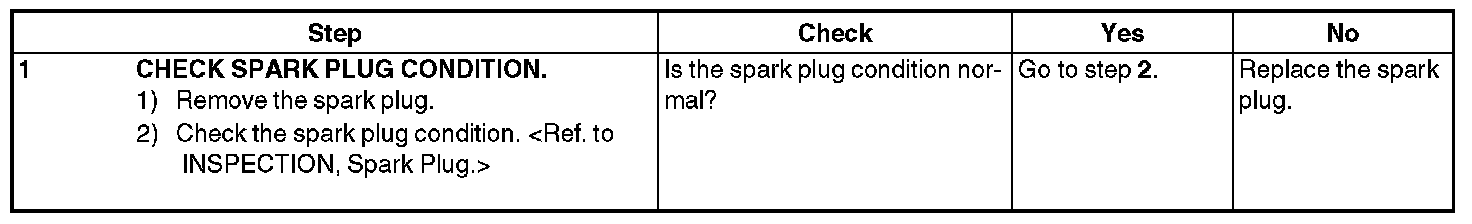

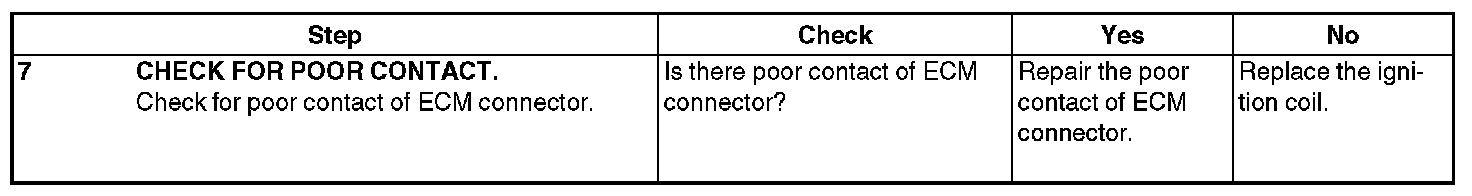

Diagnostics for Engine Starting FailureIGNITION CONTROL SYSTEM
CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode, and Inspection Mode. Clear Memory Mode Inspection Mode

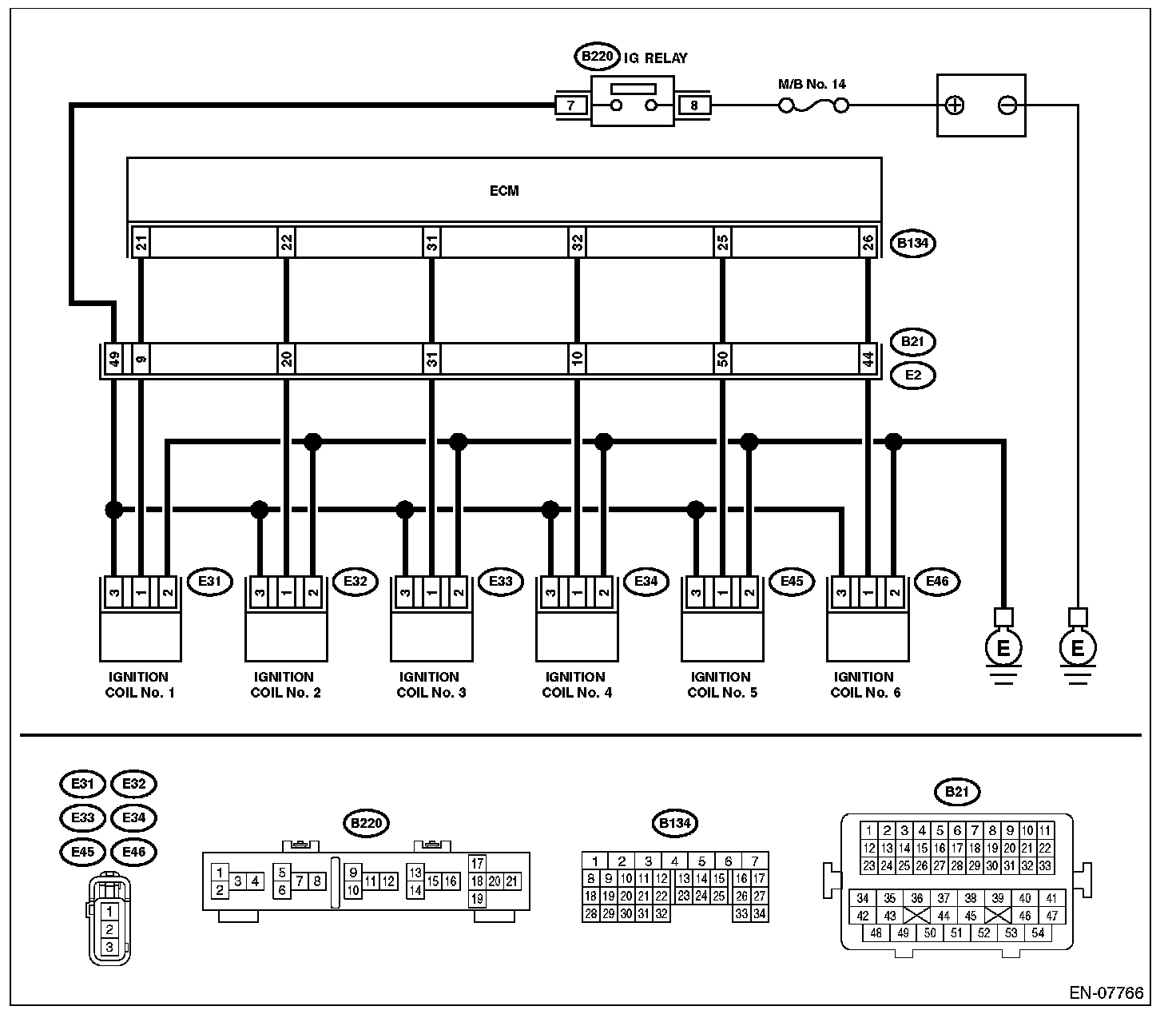

WIRING DIAGRAM:
