CVT

Transmission Control Module (TCM) I/O Signal

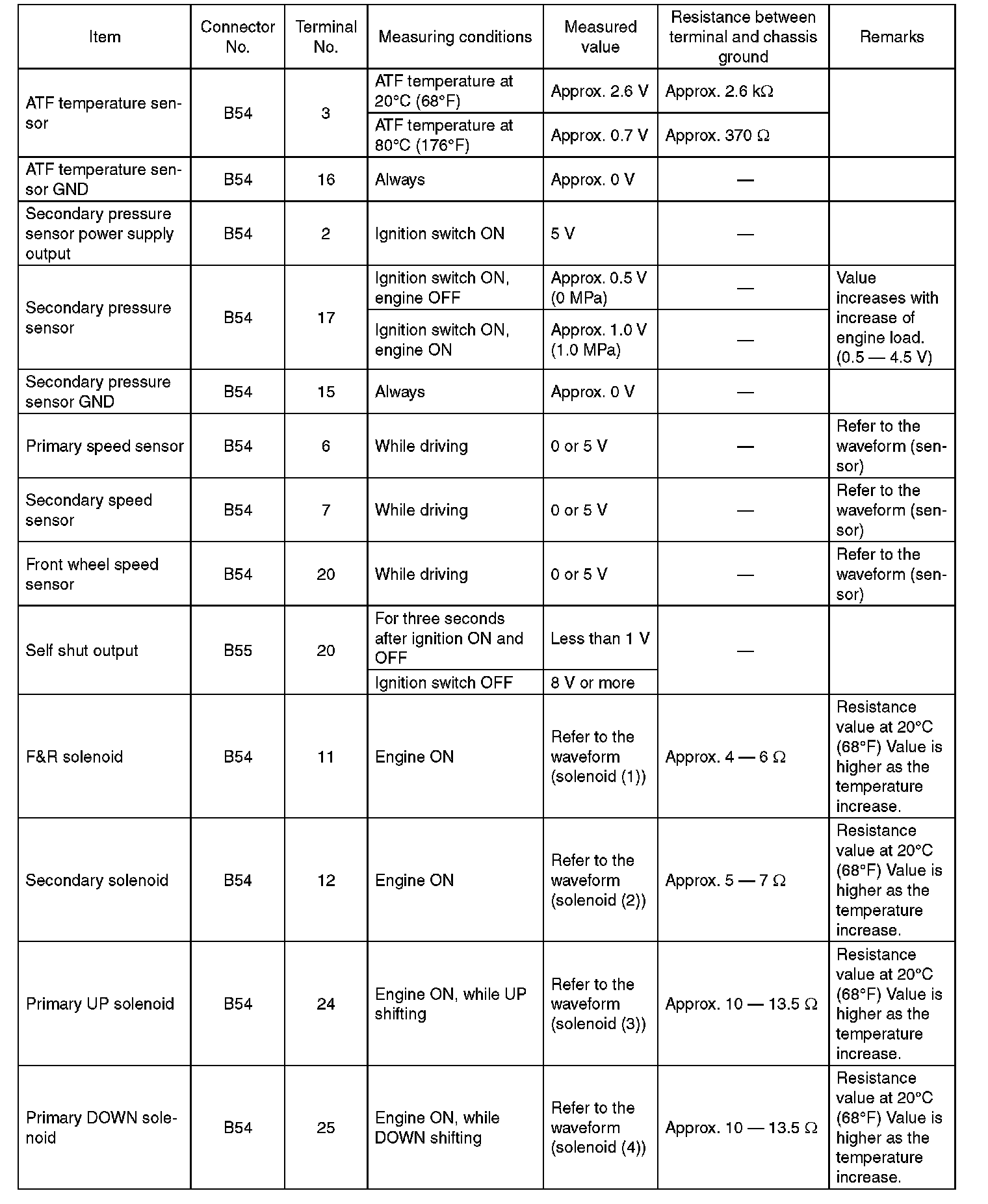

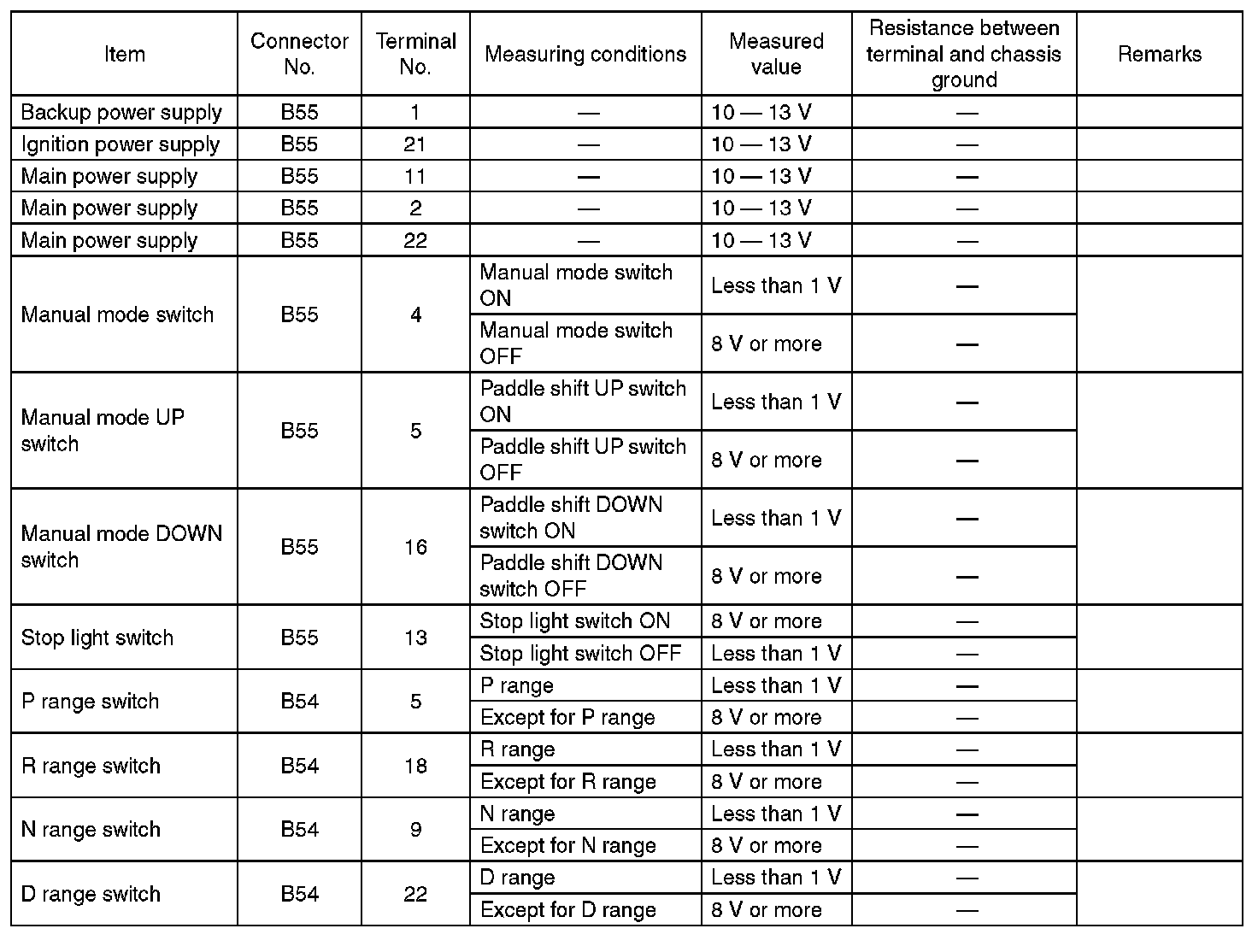

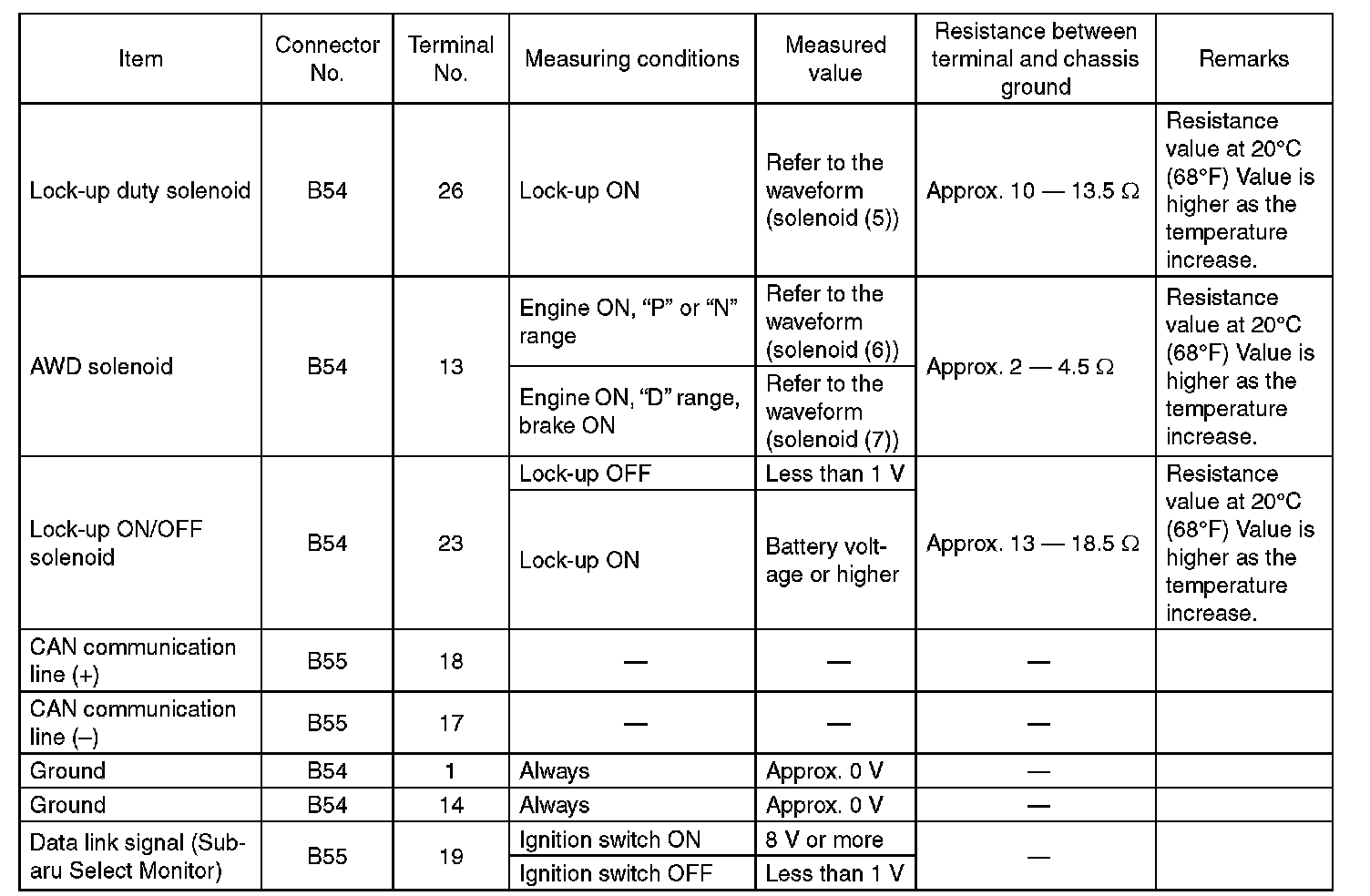

ELECTRICAL SPECIFICATION





NOTE:
Measure after warming up.











WAVEFORM

SENSOR





SOLENOID
