System Specifications

GENERAL DESCRIPTION

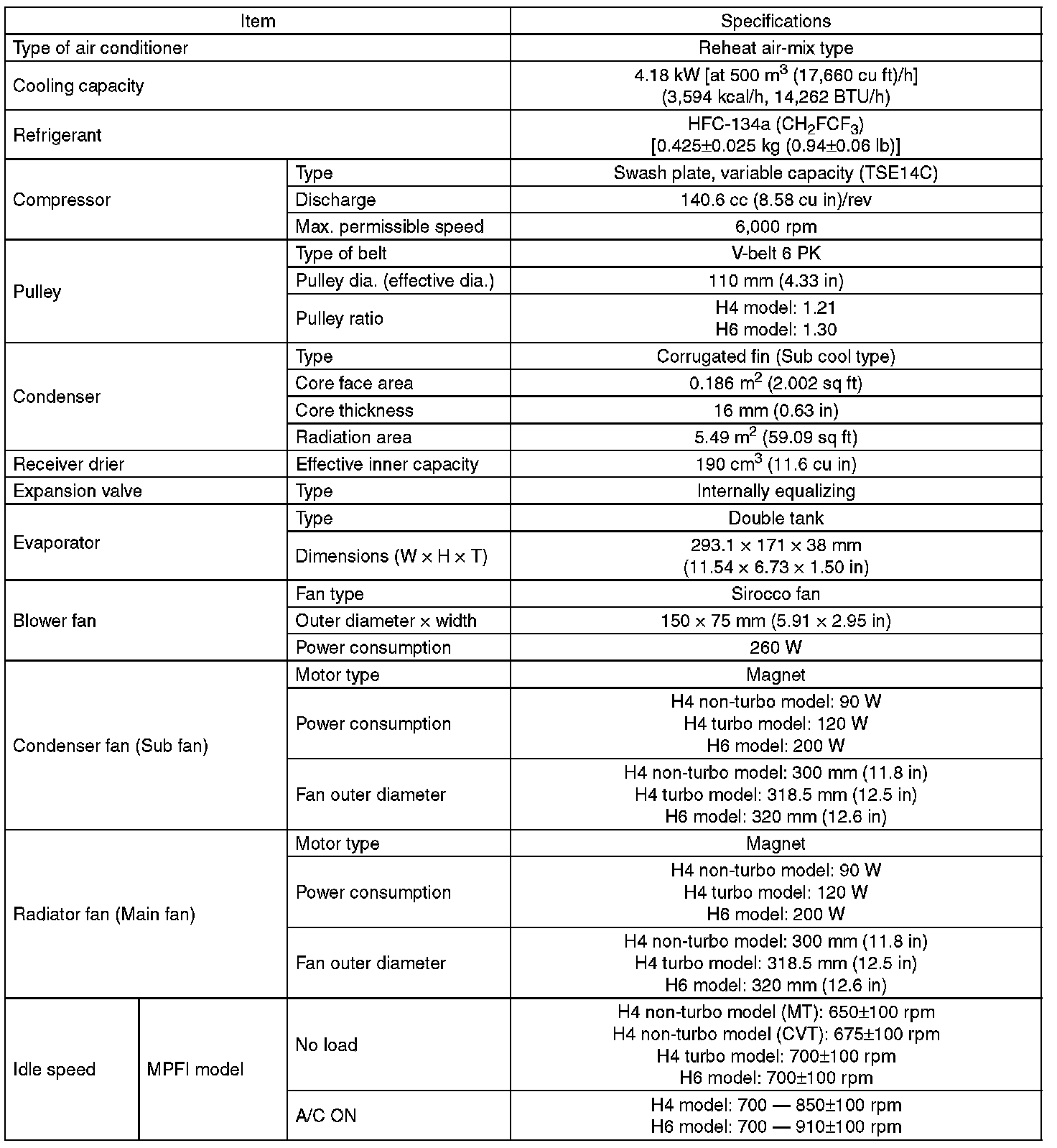

SPECIFICATION

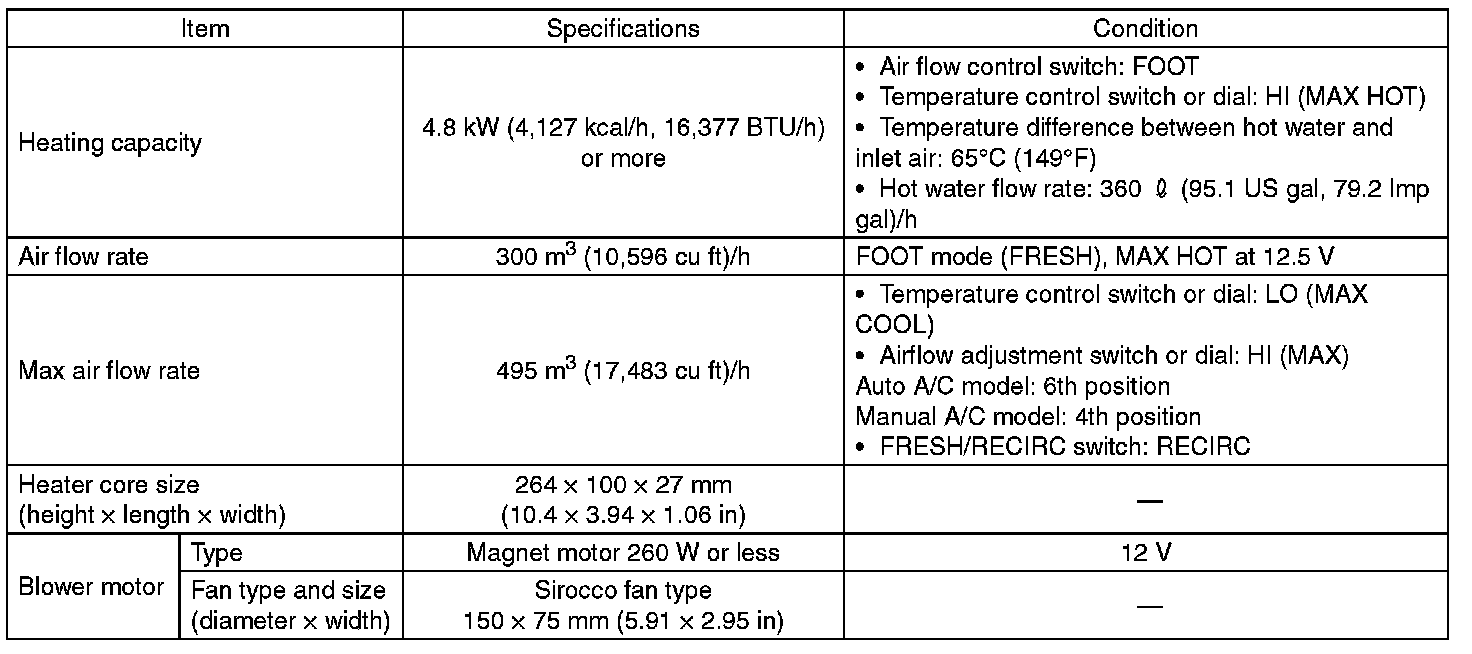

HEATER SYSTEM






A/C SYSTEM






BASIC OPERATION

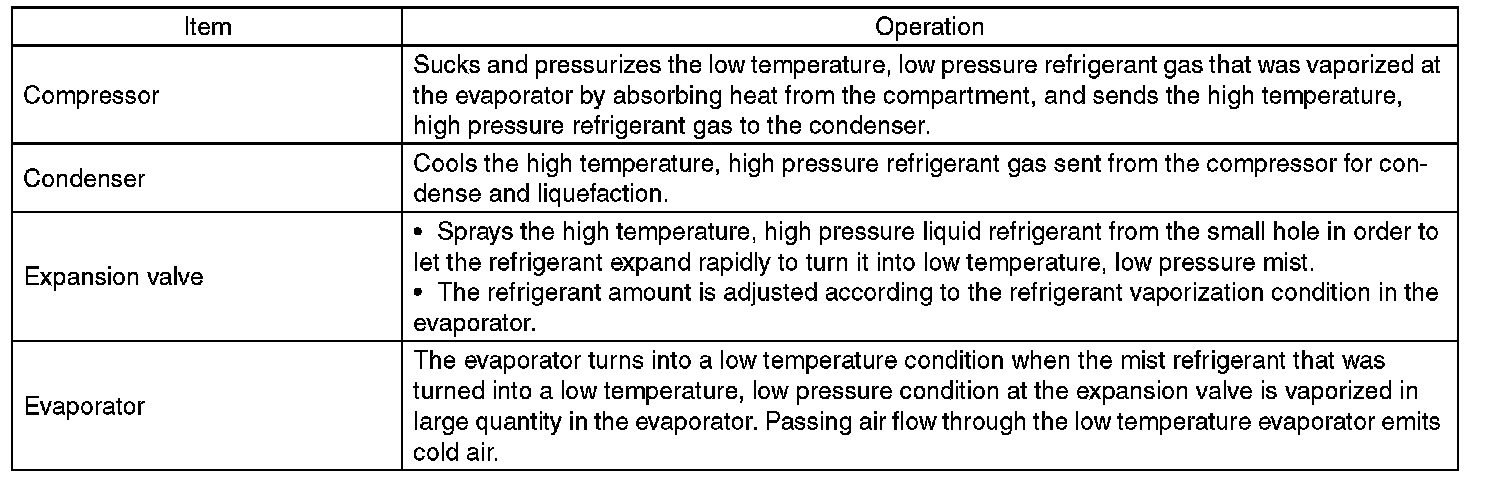

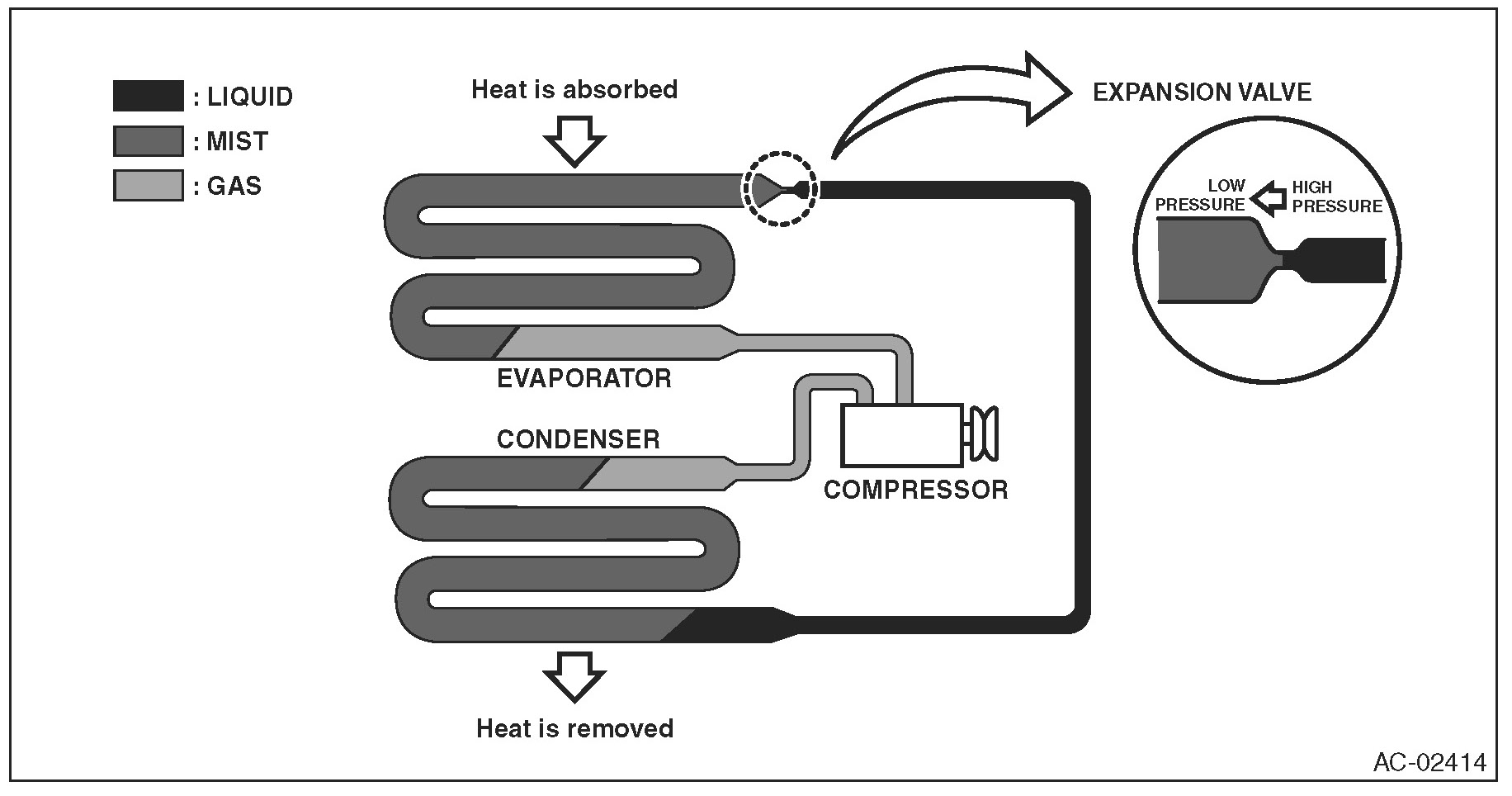

The cooling system cools down the compartment by using the pipes connecting parts and cycling the evaporable liquid (refrigerant) within the sealed system in a repeated process of "vaporization - liquefaction - re-vaporization".
