Keyless Entry System
Keyless Entry SystemELECTRICAL SPECIFICATION
1. KEYLESS ENTRY CONTROL MODULE

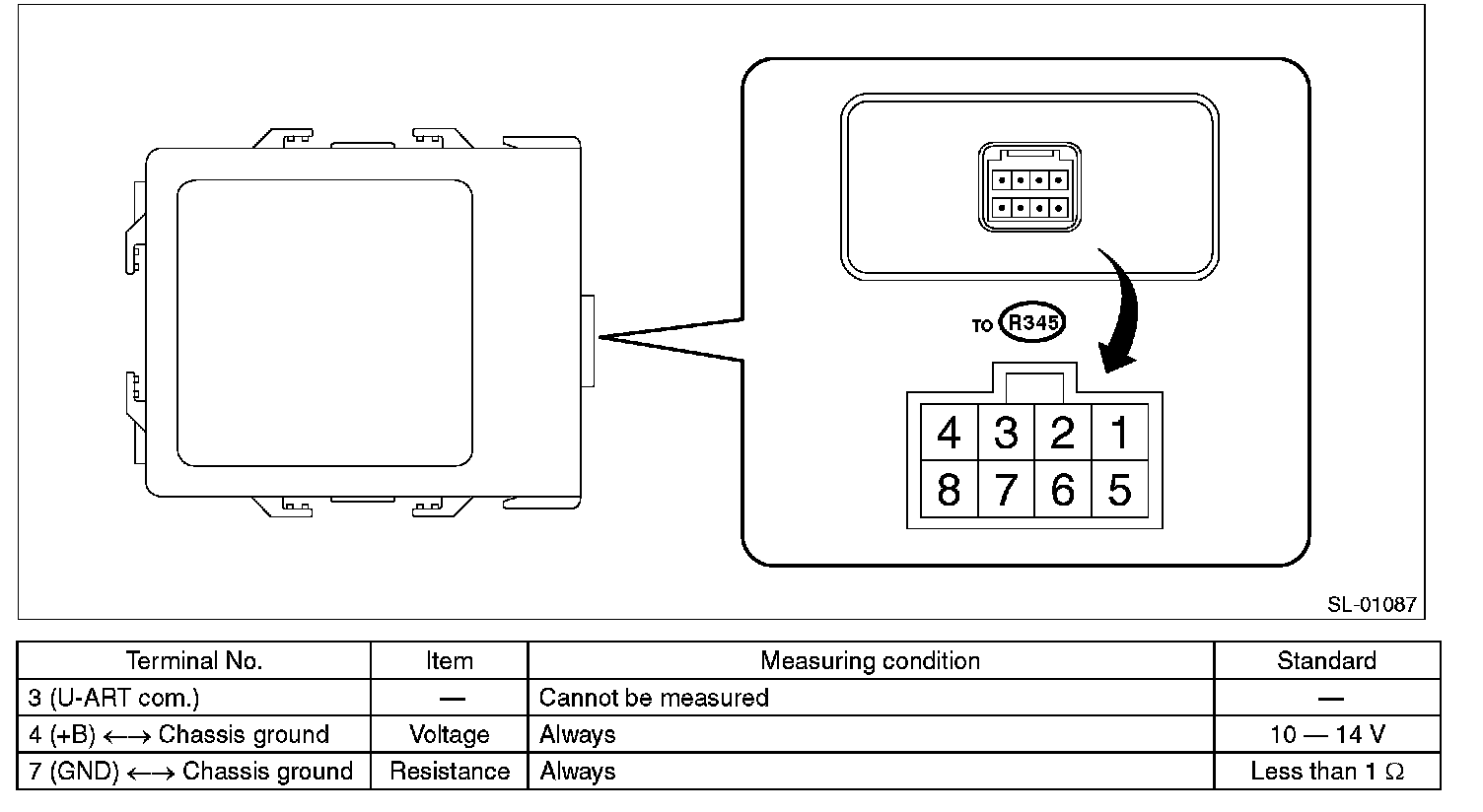

- Model without tire pressure monitoring system

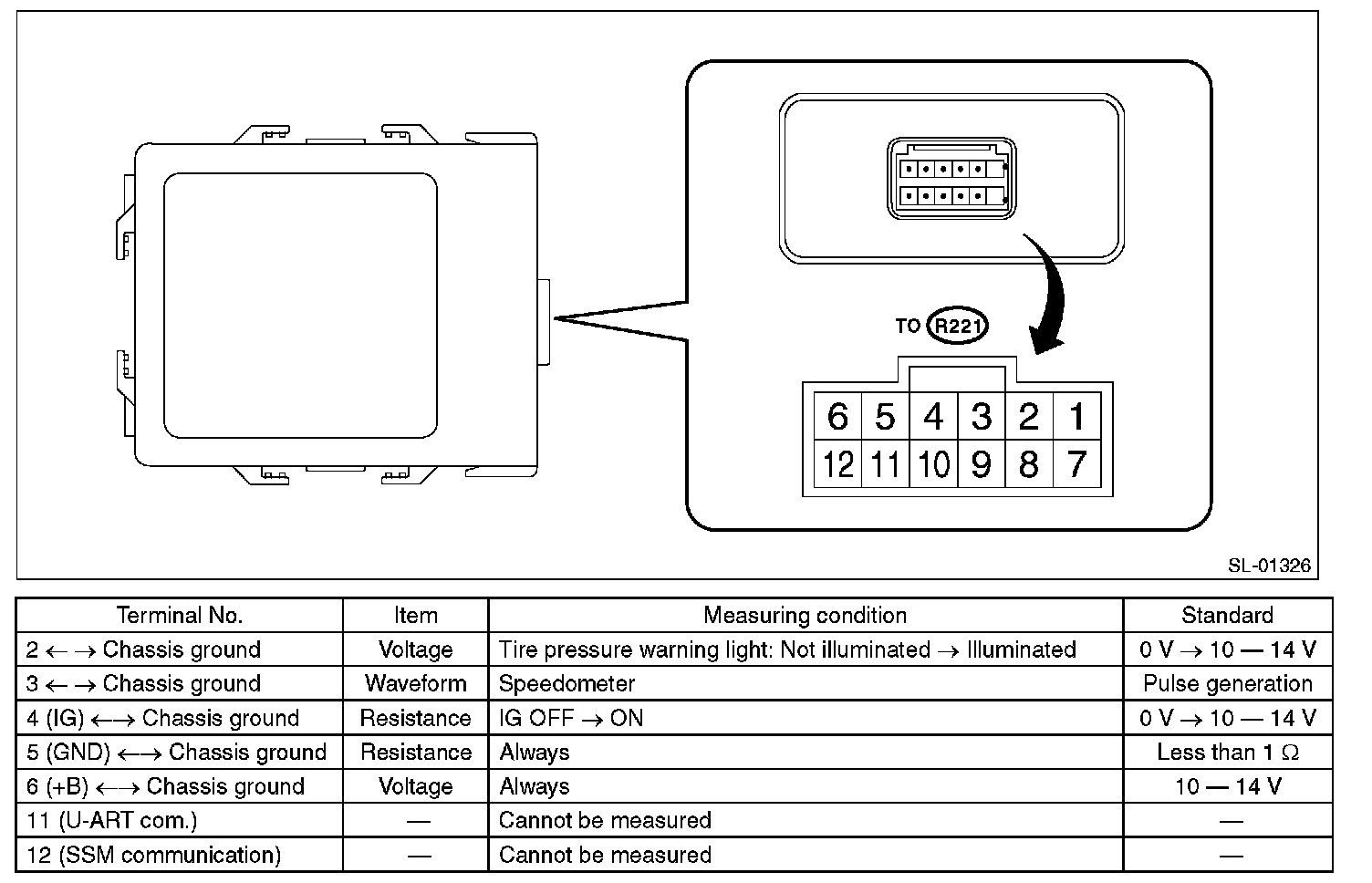

- Model with tire pressure monitoring system
2. BODY INTEGRATED UNIT
Refer to "Control Module I/O Signal" of "BODY CONTROL SYSTEM (DIAGNOSTICS)" system. Pinout Values and Diagnostic Parameters
