Air Bag Systems

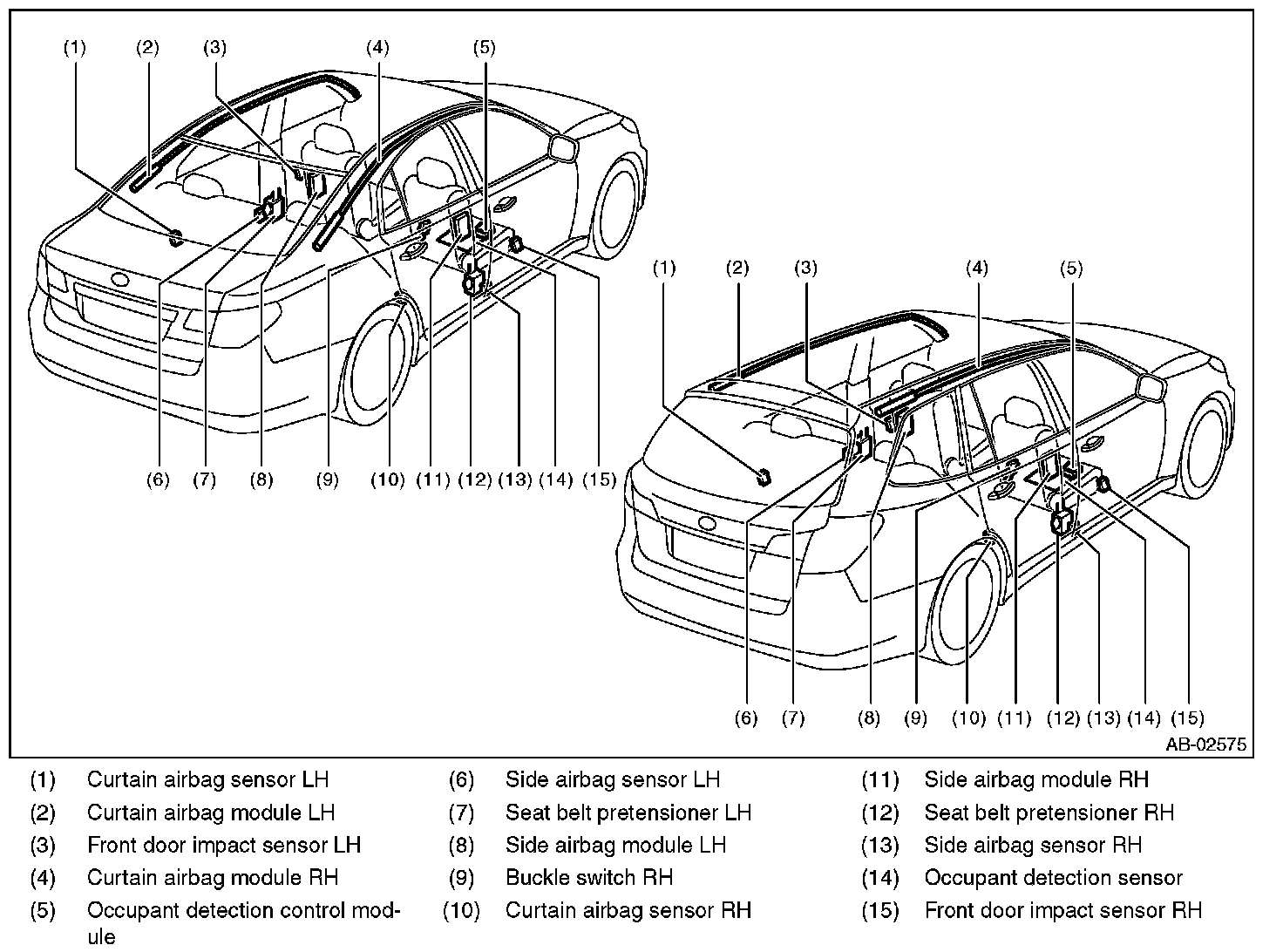

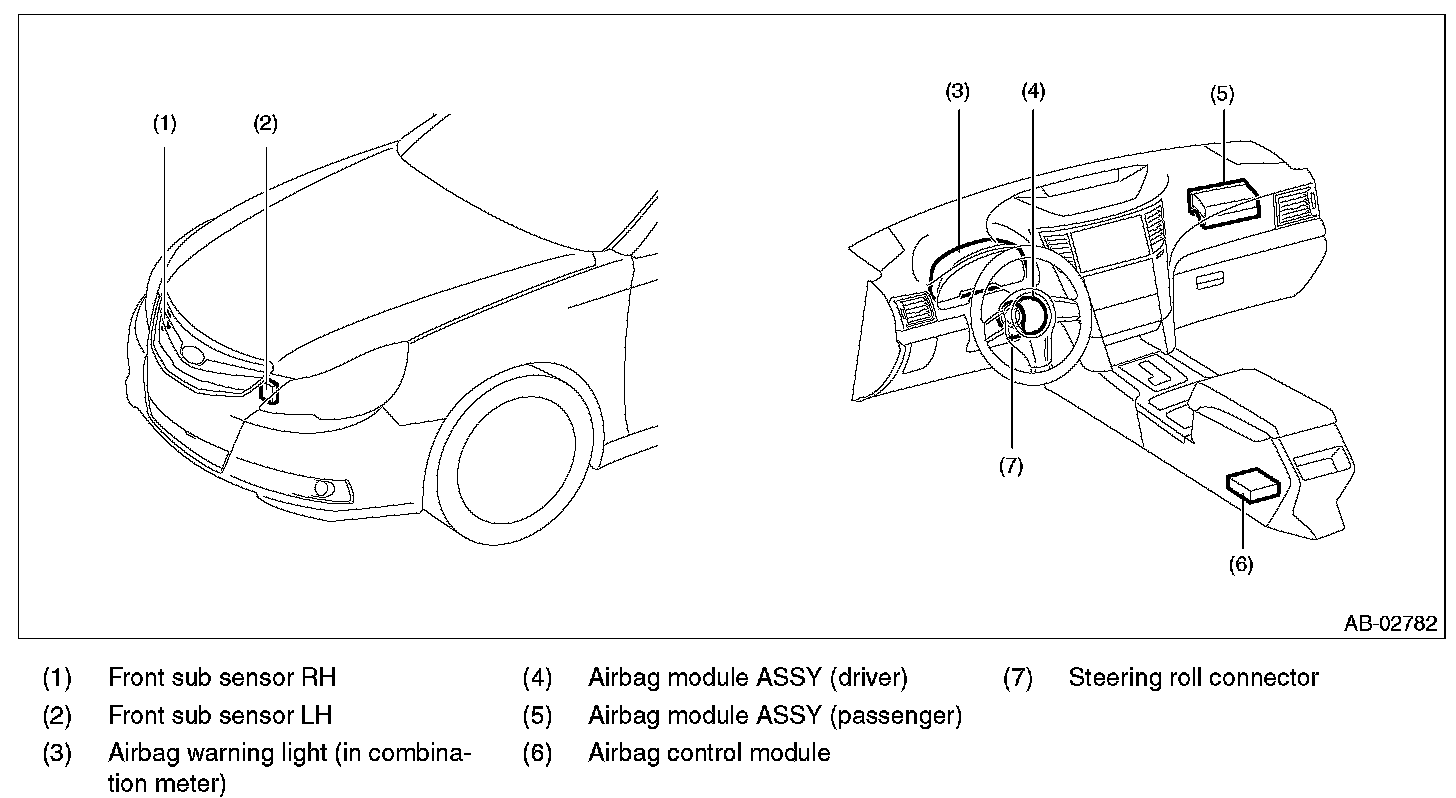

General DescriptionCOMPONENT

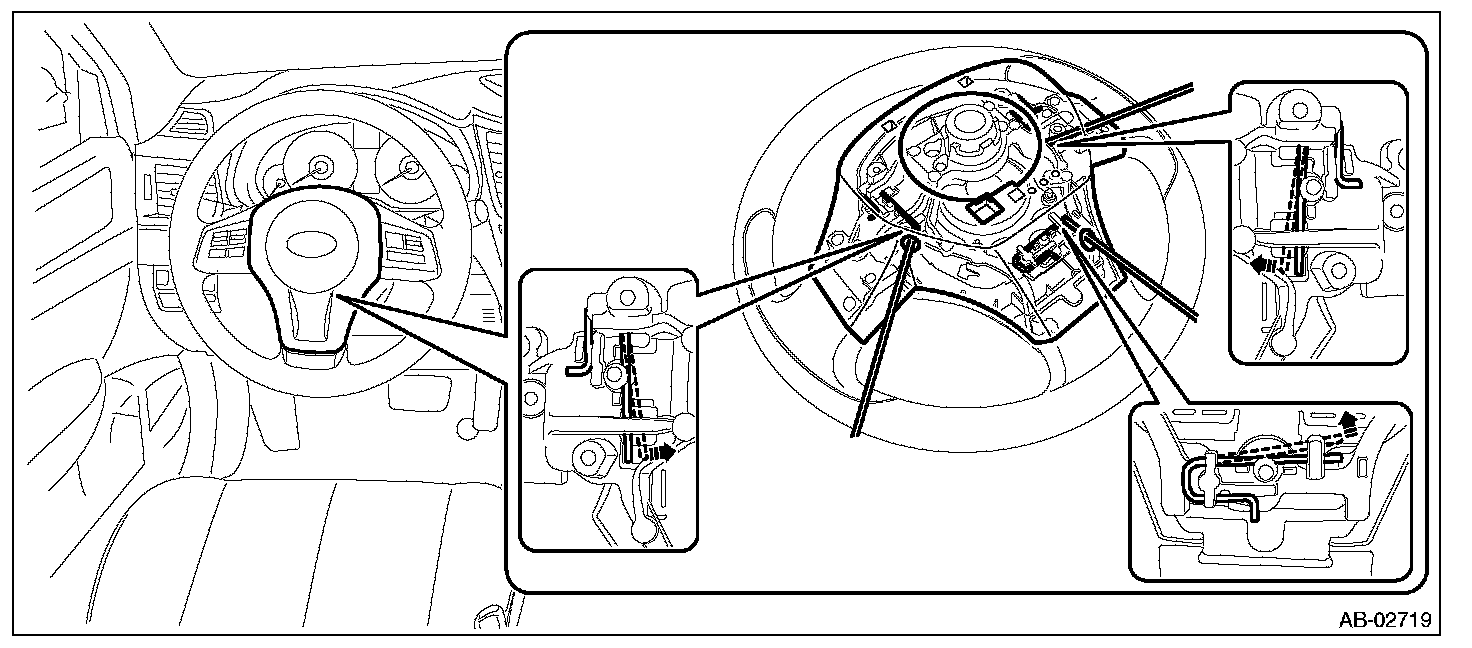

1. DRIVER'S AIRBAG MODULE

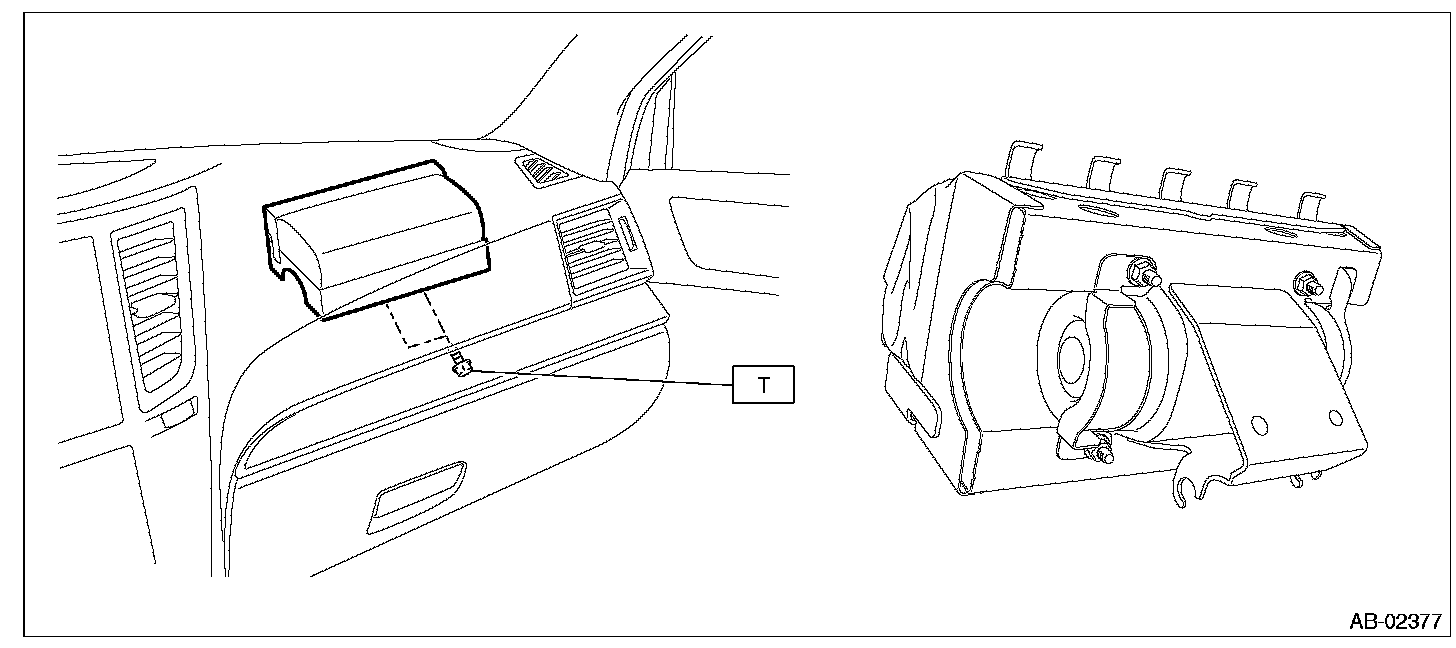

2. PASSENGER'S AIRBAG MODULE
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

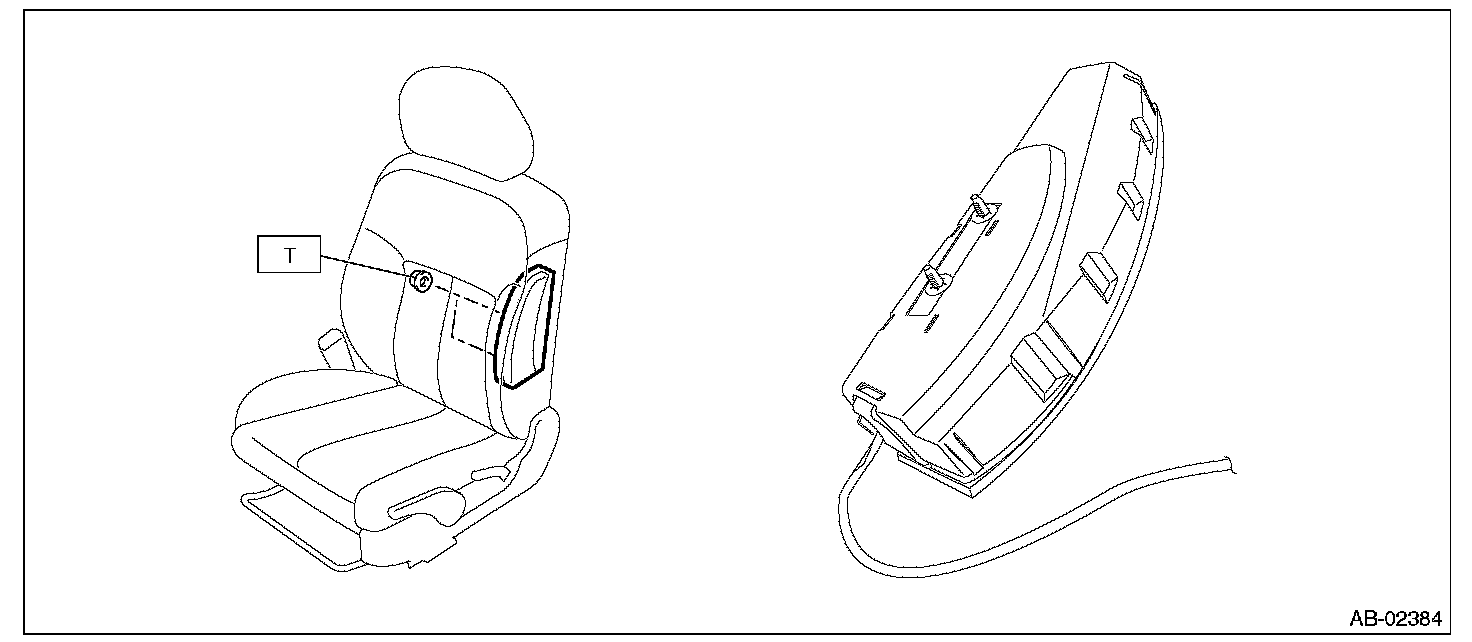

3. SIDE AIRBAG MODULE
Tightening torque: 6 N.m (0.61 kgf-m, 4.4 ft-lb)
4. CURTAIN AIRBAG MODULE
- Sedan model
- OUTBACK model
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

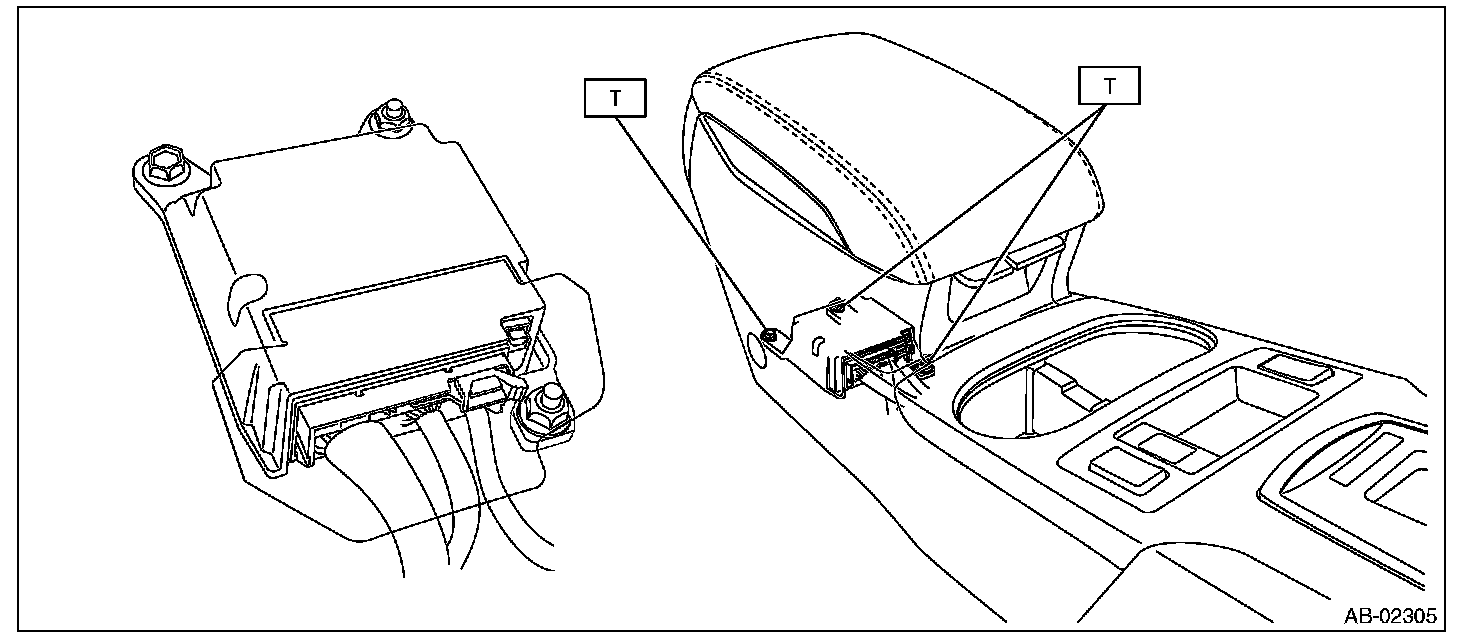

5. AIRBAG CONTROL MODULE
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 25 N.m (2.55 kgf-m, 18.4 ft-lb)

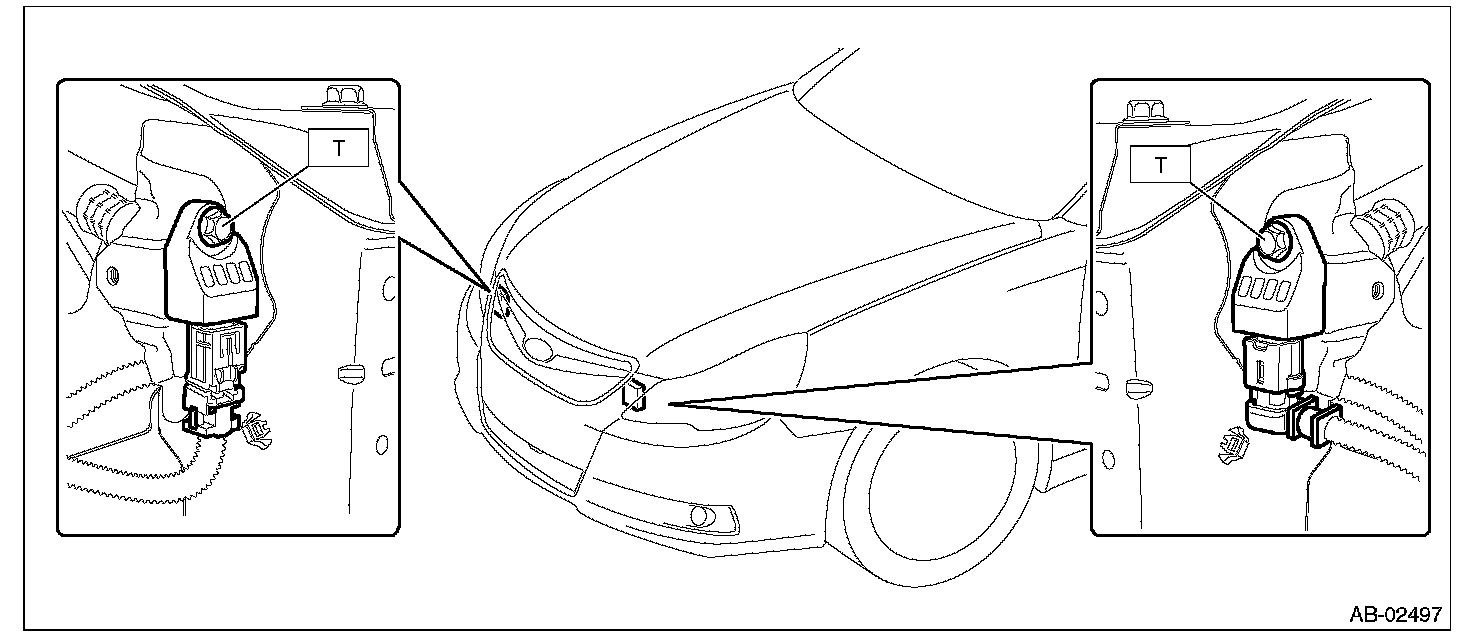

6. FRONT SUB SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 13 N.m (1.33 kgf-m, 9.6 ft-lb)
7. FRONT DOOR IMPACT SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
8. SIDE AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

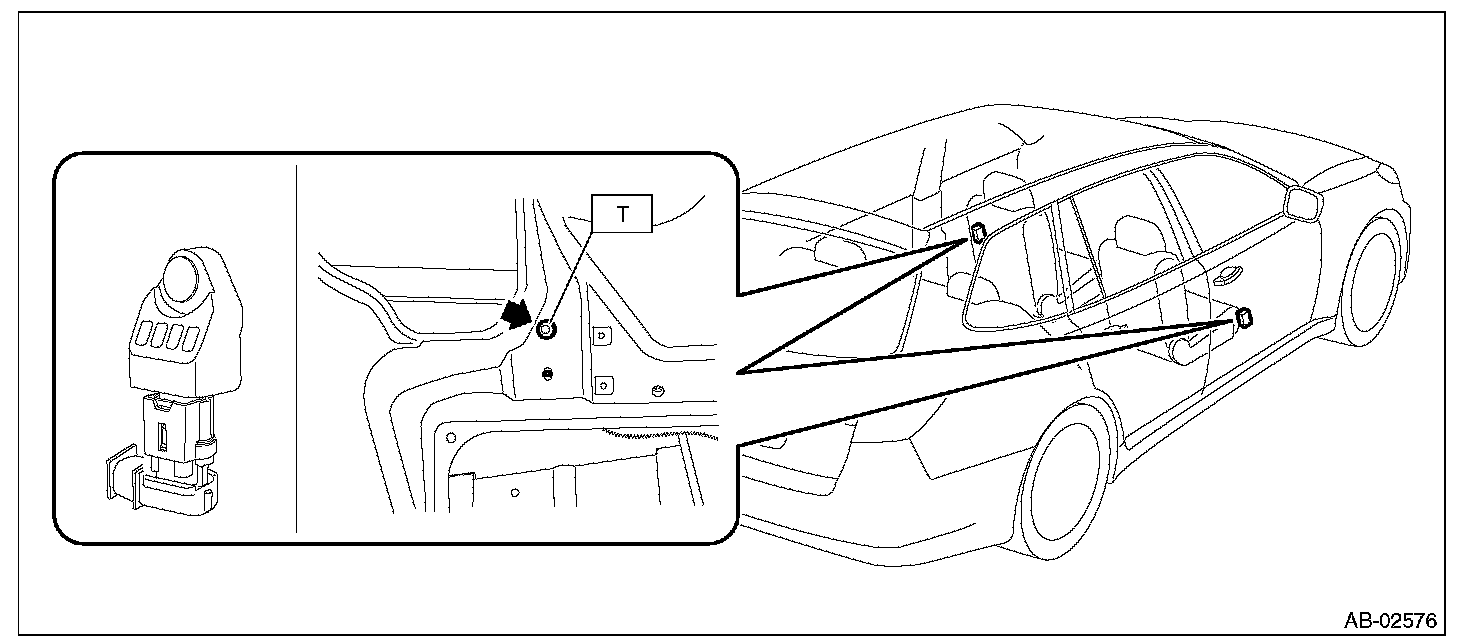

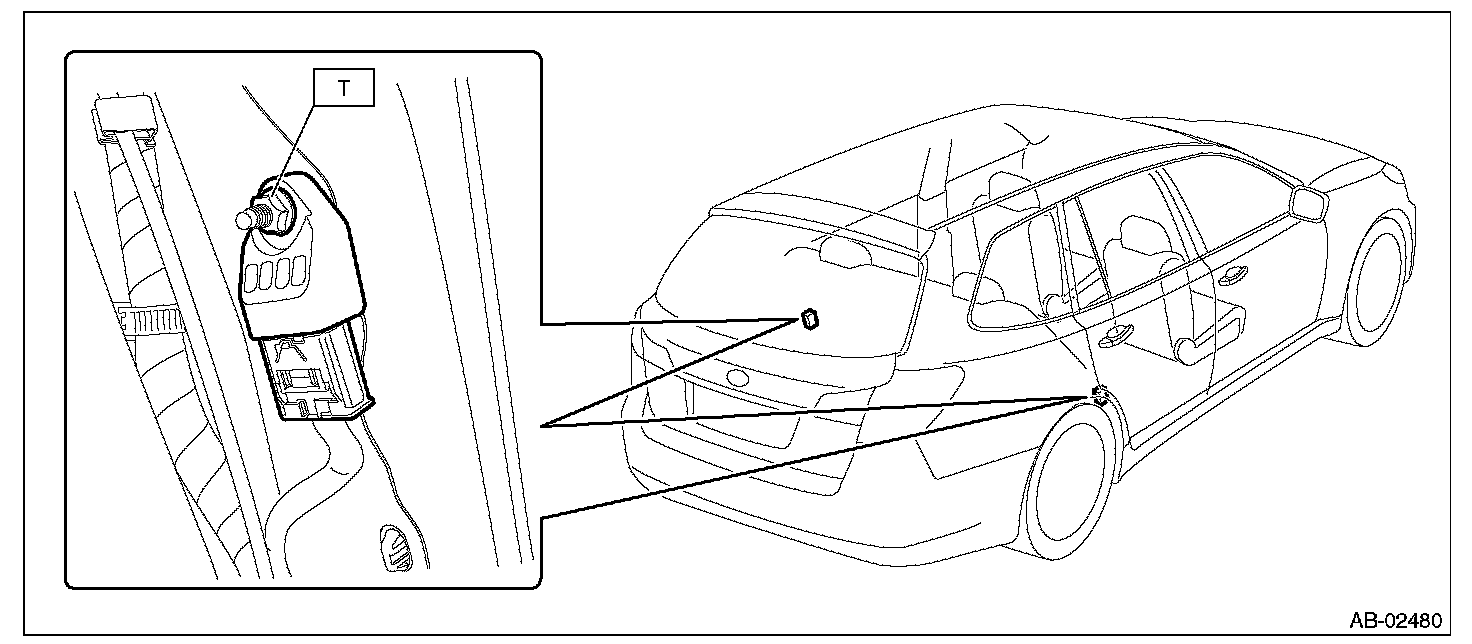

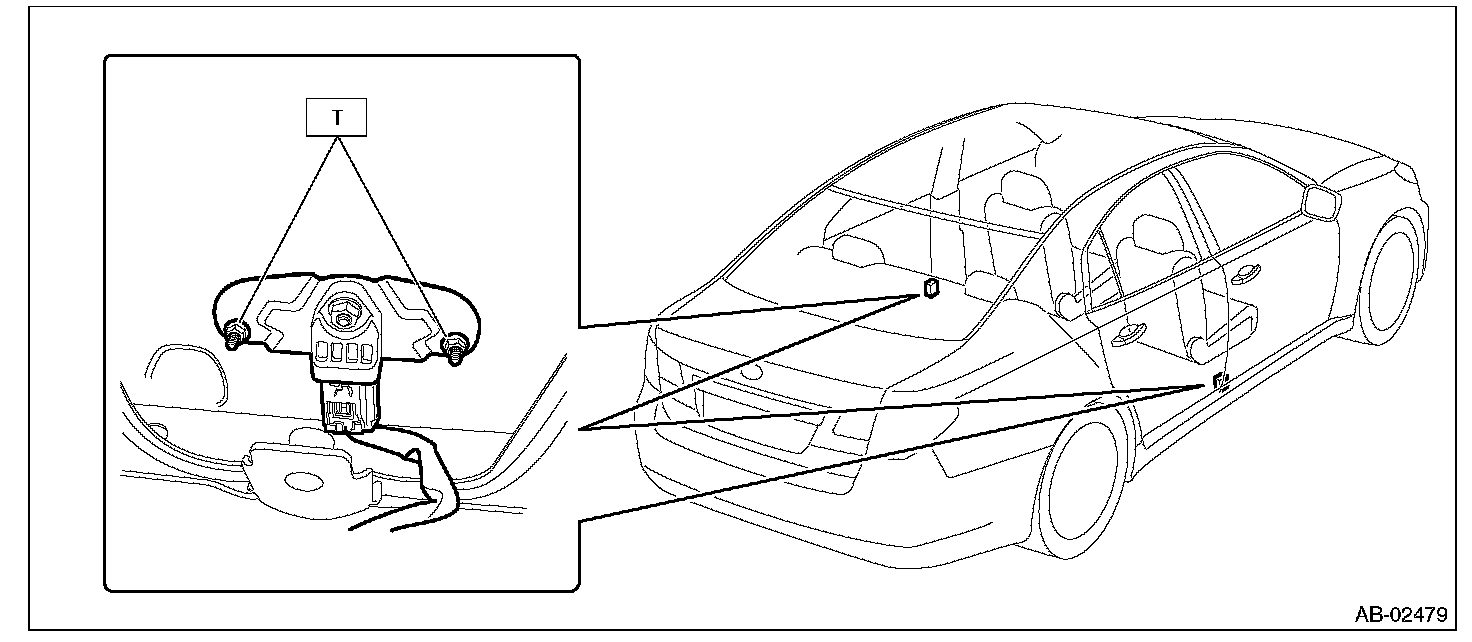

9. CURTAIN AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

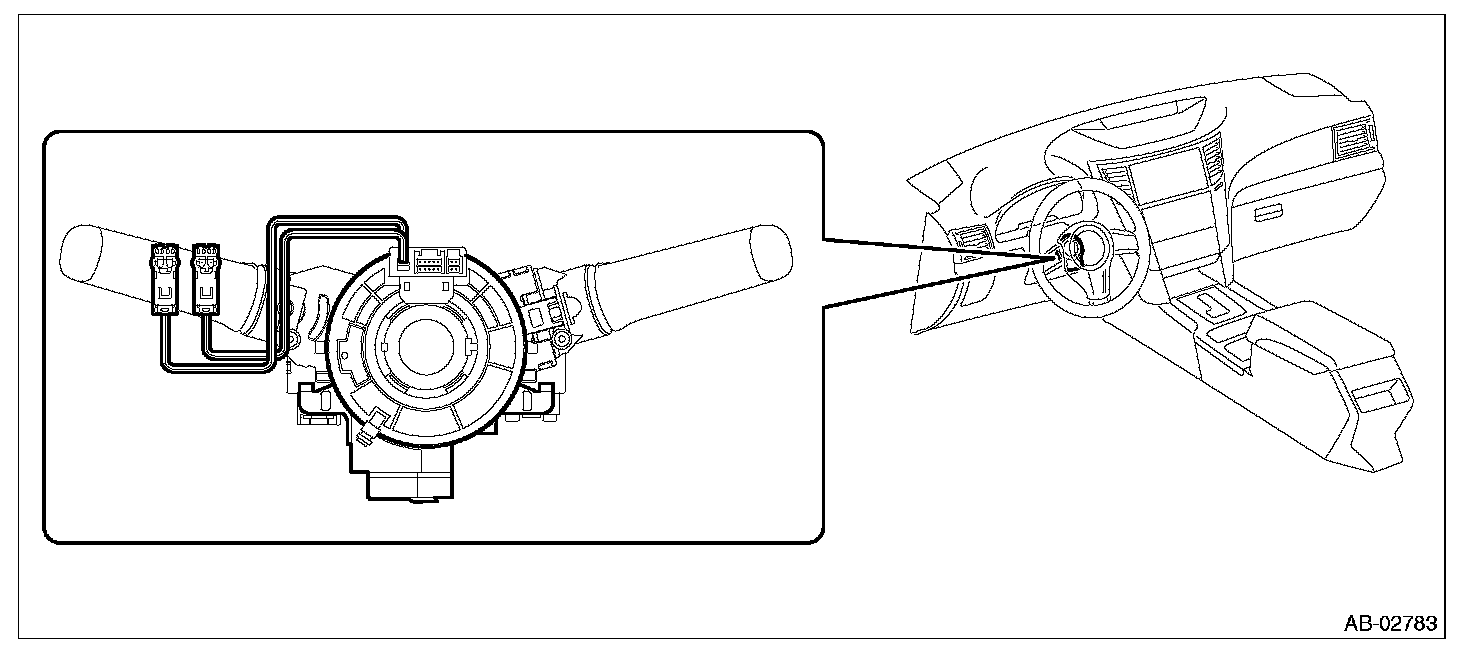

10. STEERING ROLL CONNECTOR
