Installation

Transmission Control Module (TCM)

INSTALLATION

1) Install the TCM to the bracket.

CAUTION:
Do not remove the TCM after installed to the bracket, or the bracket and TCM may be damaged. If installed by mistake, the part must be replaced with a new part.

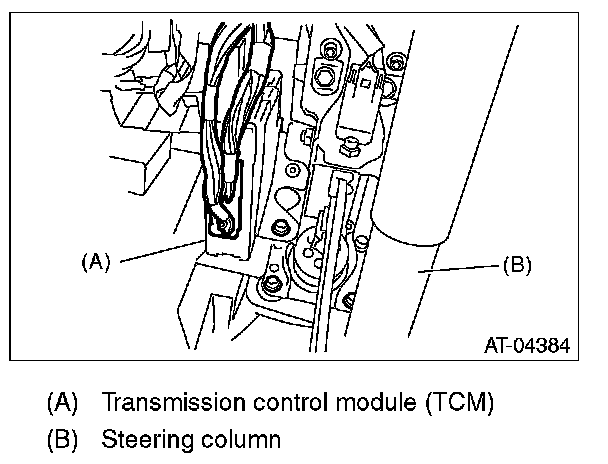

2) Install the TCM.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)





3) Connect the connector to TCM.
4) Install the instrument panel lower cover.
5) Perform Clear Memory 2 operation. Clear Memory Mode
6) Perform learning operation. Programming and Relearning
