Control Module: Service and Repair

Transmission Control Module (TCM)

REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the instrument panel lower cover.
3) Remove the bulkhead harness connector from TCM.

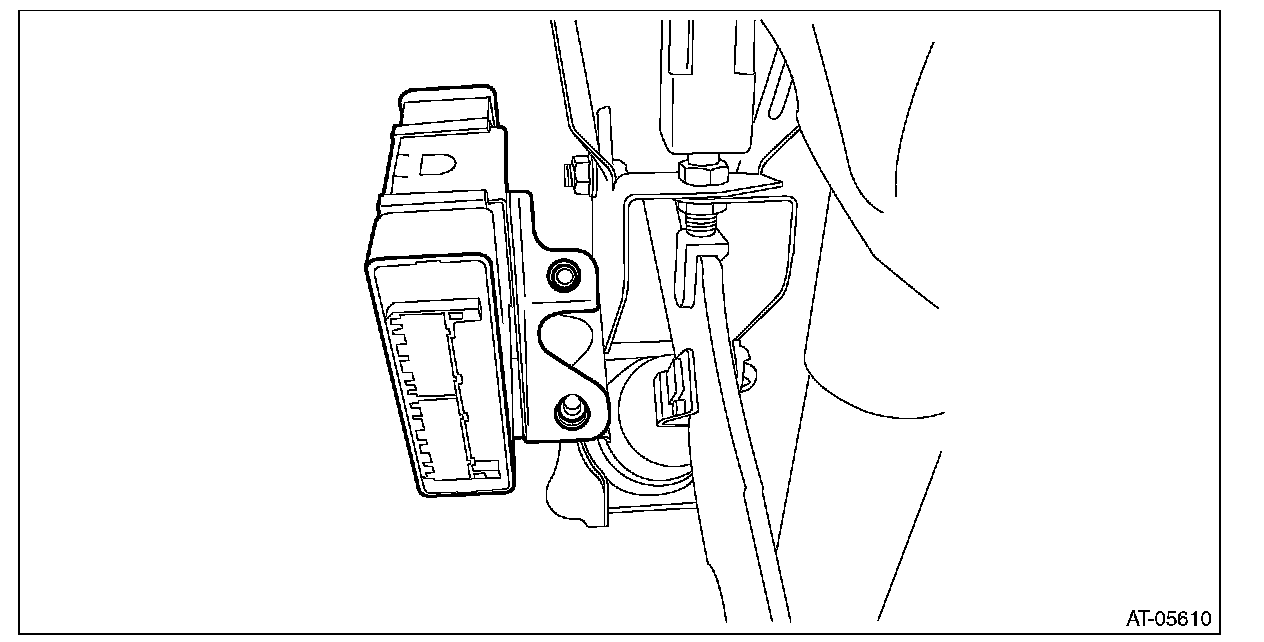

4) Remove the TCM.

NOTE:
Replace TCM and bracket as a set.





INSTALLATION

1) Install the TCM to the bracket.

CAUTION:
To avoid the damage to bracket and TCM, do not remove after installing TCM to bracket. If installed by mistake, the part must be replaced with a new part.

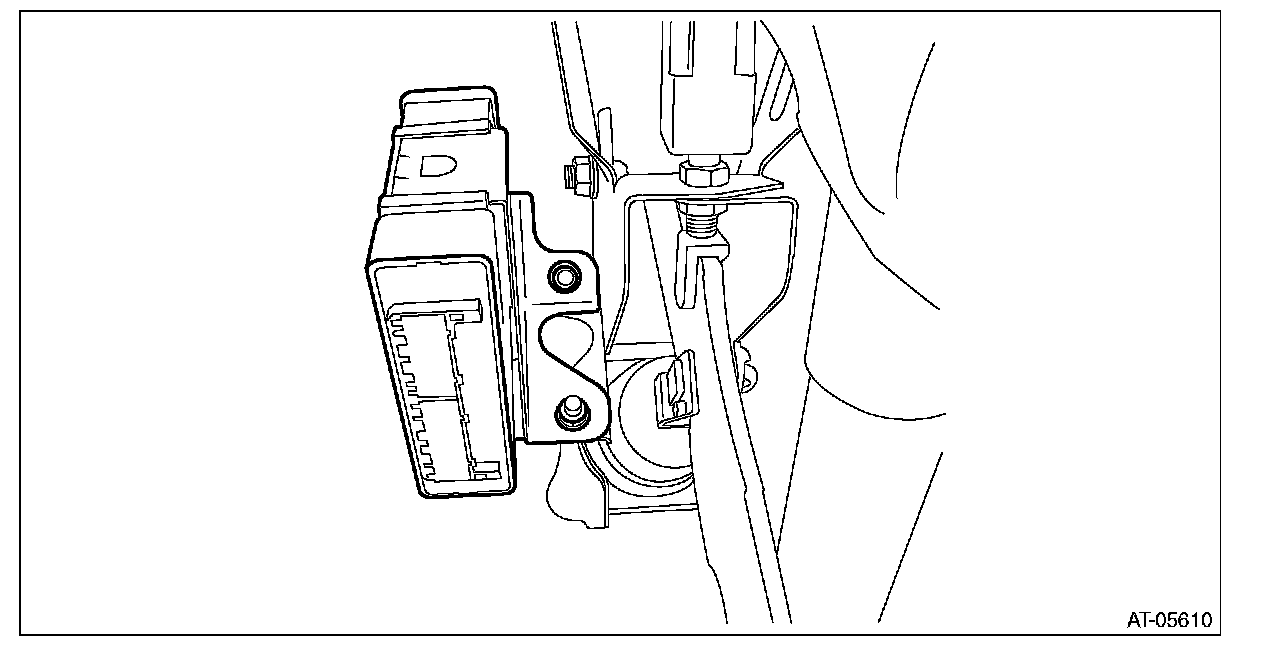

2) Install the TCM.

Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)





3) Install the harness connector to TCM.
4) Install the instrument panel lower cover.
5) Perform the diagnosis again. Programming and Relearning
