Electrical Specification
NOTE:
Measure after warming up.
| Item | Connector No. | Terminal No. | Measuring conditions | Measured value | Resistance between terminal and chassis ground | Remarks |
|---|---|---|---|---|---|---|
| Backup power supply | B55 | 1 | - | 10 - 13 V | - | |
| Ignition power supply | B55 | 21 | - | 10 - 13 V | - | |
| Main power supply | B55 | 11 | - | 10 - 13 V | - | |
| Main power supply | B55 | 2 | - | 10 - 13 V | - | |
| Main power supply | B55 | 22 | - | 10 - 13 V | - | |
| Manual mode switch | B55 | 4 | Manual mode switch ON | Less than 1 V | - | |
| Manual mode switch OFF | 8 V or more | - | ||||
| Manual mode UP switch | B55 | 5 | Paddle shift UP switch ON | Less than 1 V | - | |
| Paddle shift UP switch OFF | 8 V or more | - | ||||
| Manual mode DOWN switch | B55 | 16 | Paddle shift DOWN switch ON | Less than 1 V | - | |
| Paddle shift DOWN switch OFF | 8 V or more | - | ||||
| Stop light switch | B55 | 13 | Stop light switch ON | 8 V or more | - | |
| Stop light switch OFF | Less than 1 V | - | ||||
| P range switch | B54 | 5 | P range | Less than 1 V | - | |
| Except for P range | 8 V or more | - | ||||
| R range switch | B54 | 18 | R range | Less than 1 V | - | |
| Except for R range | 8 V or more | - | ||||
| N range switch | B54 | 9 | N range | Less than 1 V | - | |
| Except for N range | 8 V or more | - | ||||
| D range switch | B54 | 22 | D range | Less than 1 V | - | |
| Except for D range | 8 V or more | - | ||||
| ATF temperature sensor | B54 | 3 | ATF temperature at 20°C (68°F) | Approx. 2.6 V | Approx. 2.6 kΩ | |
| ATF temperature at 80°C (176°F) | Approx. 0.7 V | Approx. 370 Ω | ||||
| ATF temperature sensor GND | B54 | 16 | Always | Approx. 0 V | - | |
| Secondary pressure sensor power supply output | B54 | 2 | Ignition switch ON | 5 V | - | |
| Secondary pressure sensor | B54 | 17 | Ignition switch ON, engine OFF | Approx. 0.5 V (0 MPa) | - | Value increases with increase of engine load. (0.5 - 4.5 V) |
| Ignition switch ON, engine ON | Approx. 1.0 V (1.0 MPa) | - | ||||
| Secondary pressure sensor GND | B54 | 15 | Always | Approx. 0 V | - | |

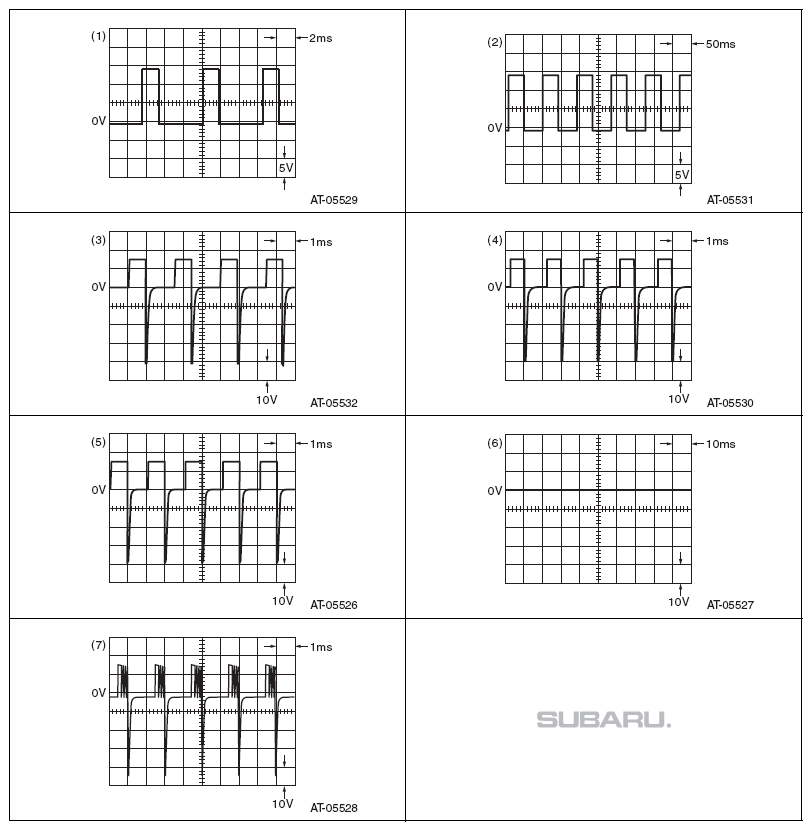

| Primary speed sensor | B54 | 6 | While driving | 0 or 5 V | - | Refer to Figurethe waveform (sensor) |
| Secondary speed sensor | B54 | 7 | While driving | 0 or 5 V | - | Refer to Figurethe waveform (sensor) |
| Front wheel speed sensor | B54 | 20 | While driving | 0 or 5 V | - | Refer to Figurethe waveform (sensor) |
| Self shut output | B55 | 20 | For three seconds after ignition ON and OFF | Less than 1 V | - | |
| Ignition switch OFF | 8 V or more | |||||
| F & R solenoid | B54 | 11 | Engine ON | Refer to Figurethe waveform (solenoid (1)) | Approx. 4 - 6 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Secondary solenoid | B54 | 12 | Engine ON | Refer to Figurethe waveform (solenoid (2)) | Approx. 5 - 7 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Primary UP solenoid | B54 | 24 | Engine ON, while UP shifting | Refer to Figurethe waveform (solenoid (3)) | Approx. 10 - 13.5 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Primary DOWN solenoid | B54 | 25 | Engine ON, while DOWN shifting | Refer to Figurethe waveform (solenoid (4)) | Approx. 10 - 13.5 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Lock-up duty solenoid | B54 | 26 | Lock-up ON | Refer to Figurethe waveform (solenoid (5)) | Approx. 10 - 13.5 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| AWD solenoid | B54 | 13 | Engine ON, "P" or "N" range | Refer to Figurethe waveform (solenoid (6)) Approx. | 2 - 4.5 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Engine ON, "D" range, brake ON | Refer to Figurethe waveform (solenoid (7)) | |||||
| Lock-up ON/OFF solenoid | B54 | 23 | Lock-up OFF | Less than 1 V | Approx. 13 - 18.5 Ω | Resistance value at 20°C (68°F) Value is higher as the temperature increase. |
| Lock-up ON | Battery voltage or higher | |||||
| CAN communication line (+) | B55 | 18 | - | - | - | |
| CAN communication line (-) | B55 | 17 | - | - | - | |
| Ground | B54 | 1 | Always | Approx. 0 V | - | |
| Ground | B54 | 14 | Always | Approx. 0 V | - | |
| Data link signal (Subaru Select Monitor) | B55 | 19 | Ignition switch ON | 8 V or more | - | |
| Ignition switch OFF | Less than 1 V |
