Drive Plate: Installation

Temporarily tighten the drive plate.
Set the ST.
ST 498497100 CRANKSHAFT STOPPER

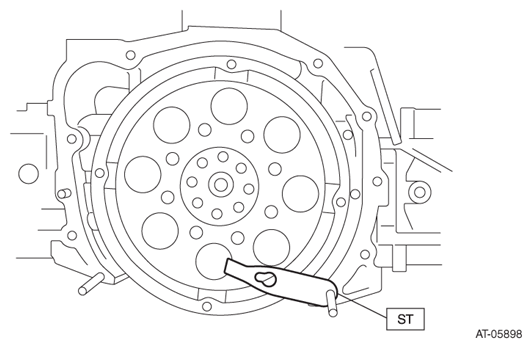

Fig 1: Identifying Crankshaft Stopper With Transmission Assembly (View 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Tighten the drive plate mounting bolt in three stages.
NOTE: Fix the engine unit.
1. Tighten the drive plate mounting bolt.
  Tightening torque:

  10 N.m (1.0 kgf-m, 7.4 ft-lb)
2. Additionally tighten the drive plate mounting bolts.
  Tightening torque:

  40 N.m (4.1 kgf-m, 29.5 ft-lb)
3. While checking the tightening angle with the ST, tighten the drive plate mounting bolts to the specified angle.
  Tightening angle:

  30°±5°

  ST 18854AA000 ANGLE GAUGE
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
