Side Retainer

NOTE: After adjusting the drive pinion backlash and tooth contact, replace the oil seal and O-ring with new parts.

Remove the O-ring.

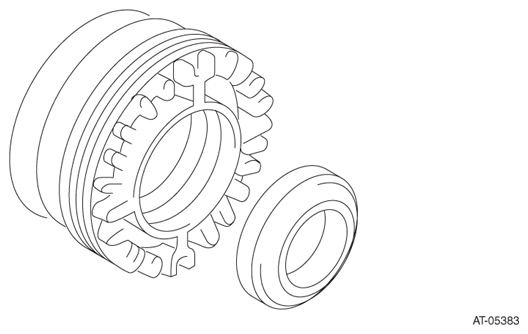

Fig 1: Identifying O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.

Fig 2: Identifying Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the split pin (ST), and then remove the claw.
ST 398527700 PULLER ASSY

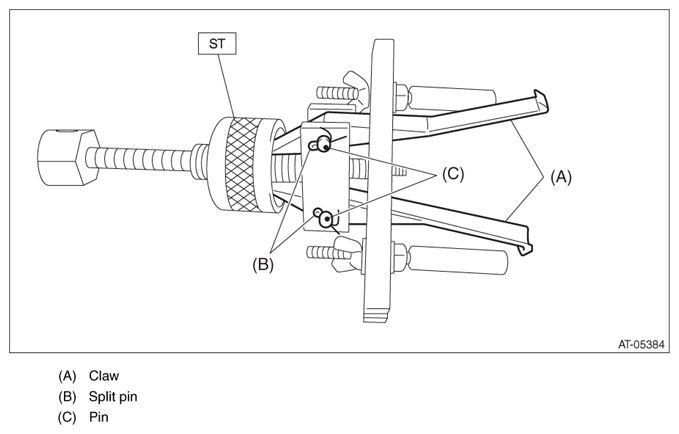

Fig 3: Identifying Claw, Split Pin And Pin
Courtesy of SUBARU OF AMERICA, INC.
Attach two claws to the outer race, and set the ST to side retainer.
ST 398527700 PULLER ASSY

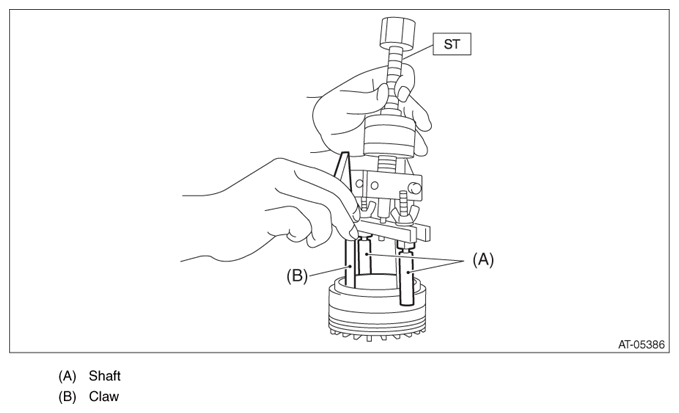

Fig 4: Identifying Shaft And Claw
Courtesy of SUBARU OF AMERICA, INC.
Restore the removed claws to original position, and install the pin and split pin.
Hold the shaft of ST to avoid removing from side retainer, and then remove the bearing outer race.
ST 398527700 PULLER ASSY

NOTE: Replace the bearing inner and outer races as a single unit.

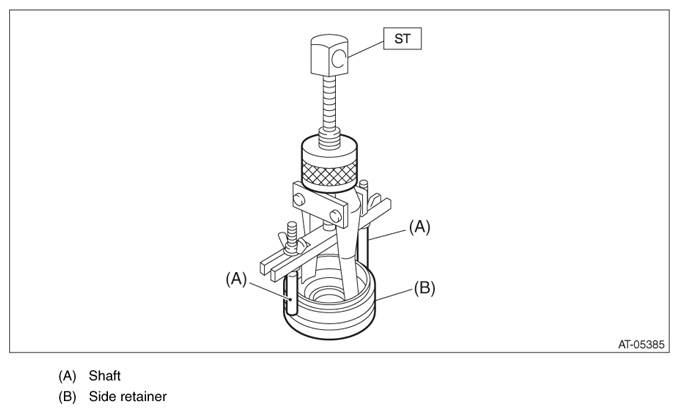

Fig 5: Identifying Shaft And Side Retainer
Courtesy of SUBARU OF AMERICA, INC.
