Intermediate Case: Installation

Clean the mating surface of intermediate case and transmission case.

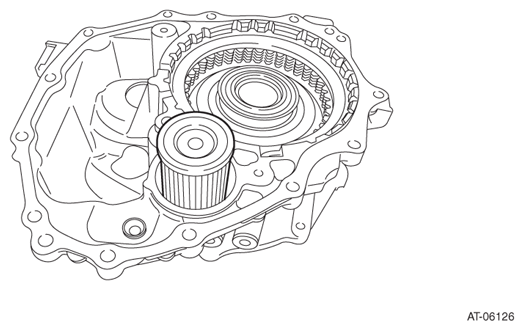

Face the O-ring side of the VTF filter to the intermediate case side, and install the CVTF filter.
NOTE: Apply CVTF to the O-ring.

Fig 1: Identifying O-Ring With CVTF
Courtesy of SUBARU OF AMERICA, INC.

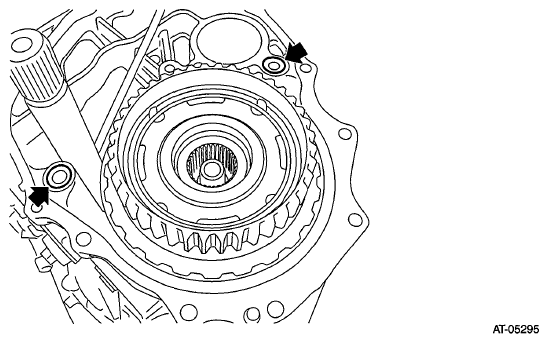

Install the O-ring to the transmission case.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.

  Fig 2: Identifying O-Ring
  Courtesy of SUBARU OF AMERICA, INC.

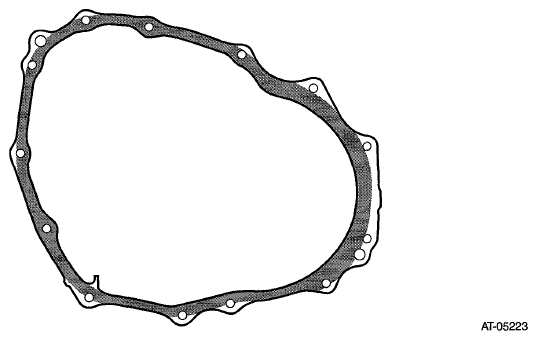

Apply liquid gasket to intermediate case seamlessly.
Liquid gasket:

THREE BOND 1215 (Part No. 004403007) or equivalent

Fig 3: Identifying Intermediate Case With Liquid Gasket
Courtesy of SUBARU OF AMERICA, INC.
Install the intermediate case and the transmission hanger to the transmission case.
NOTE: Make sure to install the arrowed bolt.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 4: Locating Single Bolt Inside Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install the transfer reduction driven gear assembly. Refer to , INSTALLATION , Transfer Reduction Driven Gear.
Install the transfer clutch assembly. Refer to , INSTALLATION , Transfer Clutch.
Install the rear drive shaft. Refer to , INSTALLATION , Rear Drive Shaft.
Install the extension case. Refer to , INSTALLATION , Extension Case.
Install the transmission to vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
