Rear Drive Shaft: Disassembly

  1. Remove the ball bearing using ST.

    ST 498077600 REMOVER

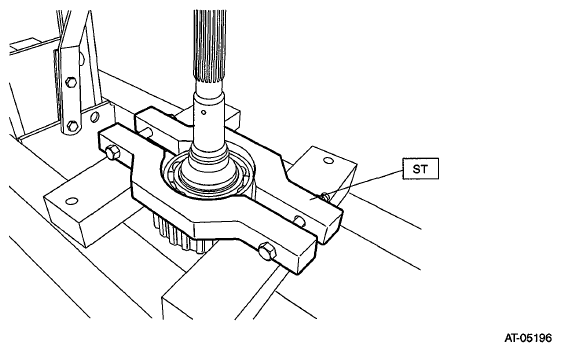

    Fig 1: Identifying Ball Bearing With ST
    G06654505Courtesy of SUBARU OF AMERICA, INC.
