Torque Converter Assembly: Installation
- Install the O-ring to front reduction drive gear.NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
- While holding the torque converter assembly by hand, carefully install it into the torque converter case.NOTE:
- Apply CVTF to the oil seal lip.
- Do not damage the oil seal and O-ring.
- Engage the splines while gently rotating the torque converter assembly by hand, and securely insert the assembly.

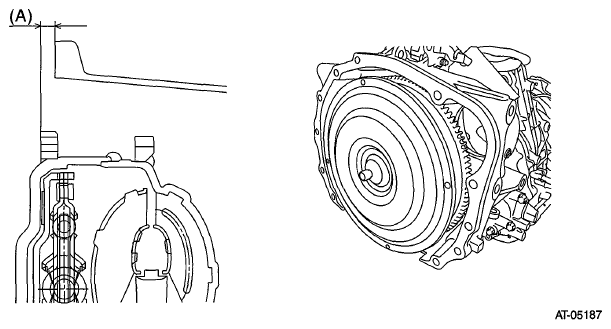

- Measure depth "A", from converter case end surface to drive plate contacting surface.
Standard (A) (reference):
6.8 mm (0.268 in)
- Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
