Brake Line

Check for scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.
Make sure that brake pipes/hoses do not interfere with adjacent parts and there is no loose connector/clamp during driving.
Check any trace of fluid leakage, scratches, etc. on master cylinder, wheel cylinder and hydraulic unit.
NOTE:
- When the brake fluid level in the reservoir tank is lower than specified limit, the brake warning light on the combination meter will illuminate.
- Visually check the brake hose for damage. (Use a mirror where it is difficult to see)

  Fig 1: Identifying Front Brake Hose, Front Brake Pipe And Clamp
  Courtesy of SUBARU OF AMERICA, INC.

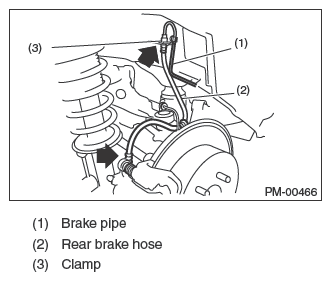

  Fig 2: Identifying Rear Brake Hose, Rear Brake Pipe And Clamp
  Courtesy of SUBARU OF AMERICA, INC.
