Fuel Line

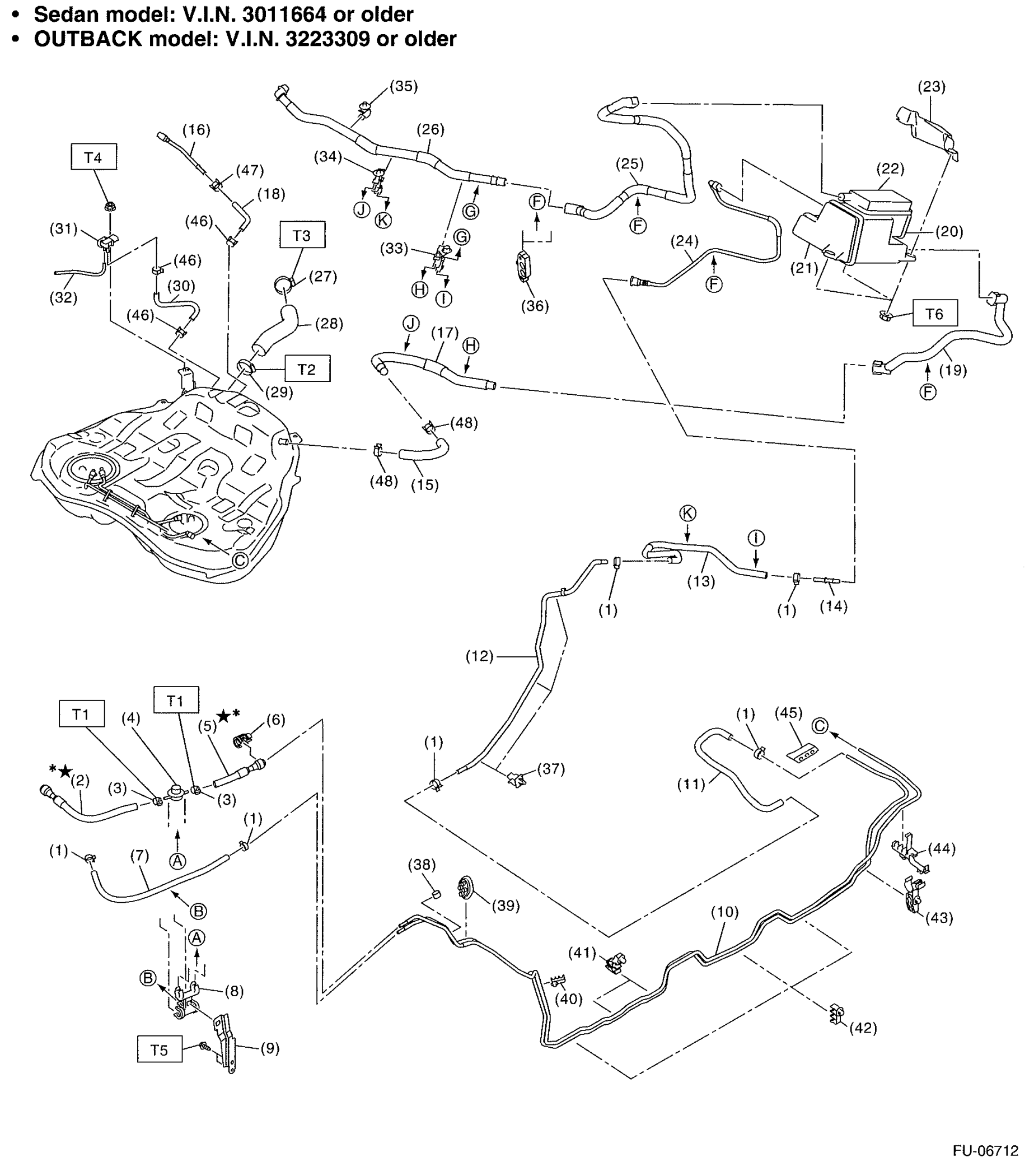

Fig 1: Exploded View Of Fuel Line (Sedan Model: V.I.N. 3011664 Or Older) (OUTBACK Model: V.I.N. 3223309 Or Older)

Courtesy of SUBARU OF AMERICA, INC.

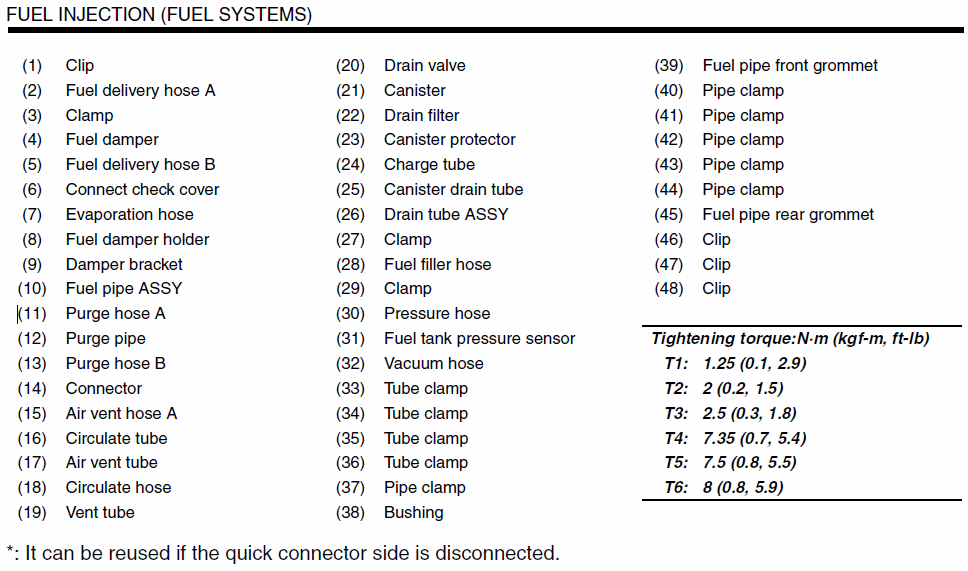

Fig 2: Fuel Line Replacement Components (Sedan Model: V.I.N. 3011664 Or Older) (OUTBACK Model: V.I.N. 3223309 Or Older) With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

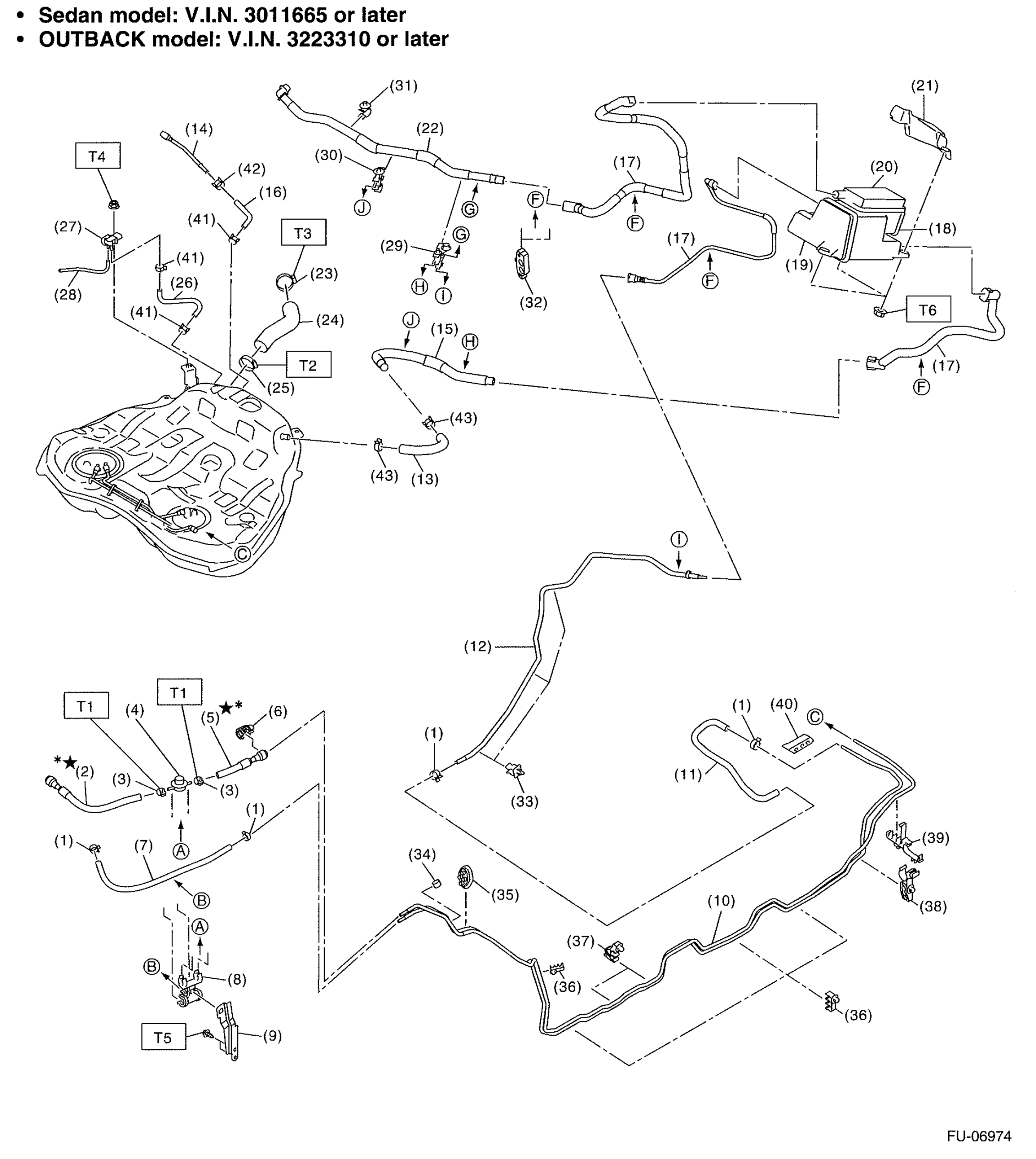

Fig 3: Exploded View Of Fuel Line (Sedan Model: V.I.N. 3011665 Or Later) (OUTBACK Model: V.I.N. 3223310 Or Later)

Courtesy of SUBARU OF AMERICA, INC.

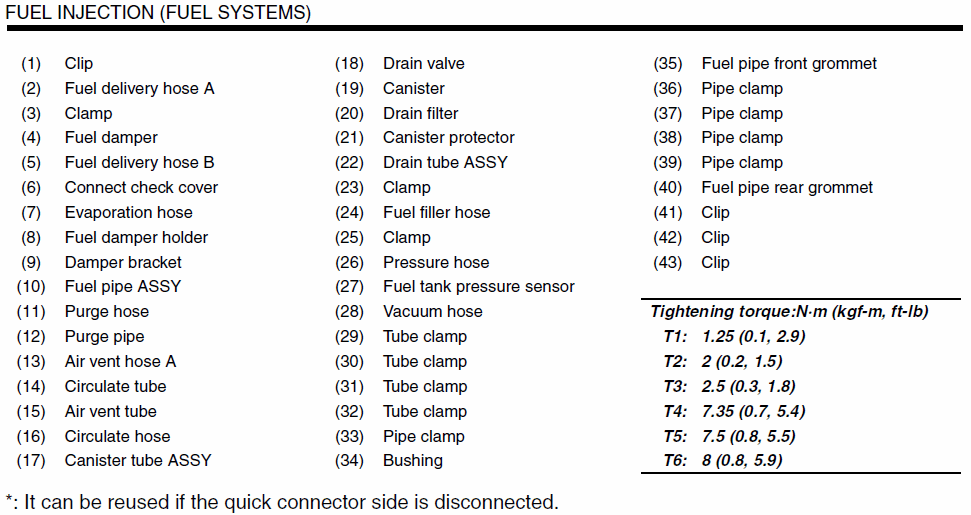

Fig 4: Fuel Line Replacement Components (Sedan Model: V.I.N. 3011665 Or Later) (OUTBACK Model: V.I.N. 3223310 Or Later) With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.25 (0.1, 2.9)

T2: 2 (0.2, 1.5)

T3: 2.5 (0.3, 1.8)

T4: 7.35 (0.7, 5.4)

T5: 7.5 (0.8, 5.5)

T6: 8 (0.8, 5.9)
