Main Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Refer to GLOVE BOX .
  3. Remove the main relay.

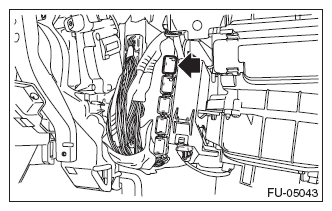

    Fig 1: Locating Main Relay
    G07912371Courtesy of SUBARU OF AMERICA, INC.
