Intake Side

  1. Remove the collector cover.
    NOTE: Follow these procedures for removal of the collector cover.
    1. Lift up the rear side holding two positions (A).
    2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.
      Fig 1: Removing Collector Cover
      G06651504Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Disconnect the connector from the intake oil flow control solenoid valve RH.

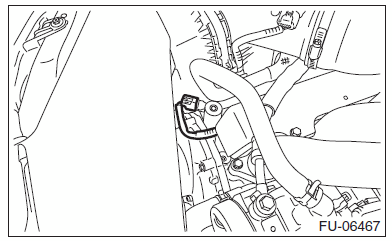

    Fig 2: Identifying Intake Oil Flow Control Solenoid Valve RH Connector
    G00525100Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake oil flow control solenoid valve RH.

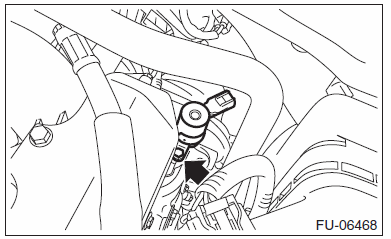

    Fig 3: Identifying Intake Oil Flow Control Solenoid Valve RH
    G00525101Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the intake oil flow control solenoid valve LH in the same procedure as the intake oil flow control solenoid valve RH.
