Throttle Sensor (Method With Circuit Tester)

  1. Remove the glove box lid assembly. Refer to GLOVE BOX .
  2. Turn the ignition switch to ON. (engine OFF)
  3. Measure the voltage between ECM connector terminals.

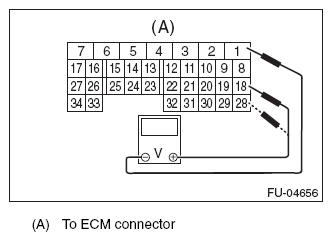

    Fig 1: Measuring Voltage Between ECM Connector Terminals
    G07912247Courtesy of SUBARU OF AMERICA, INC.
    Throttle sensor Accelerator pedal Terminal No. Standard
    Main Not depressed (Full closed) 18 (+) and 1 (-) Approx. 0.6 V
    Depressed (Full opened) Approx. 4.04 V
    Sub Not depressed (Full closed) 28 (+) and 1 (-) Approx. 1.48 V
    Depressed (Full opened) Approx. 4.23 V
  4. After inspection, install the related parts in the reverse order of removal.
