Diagnostic procedure

Drive according to the drive pattern described below.

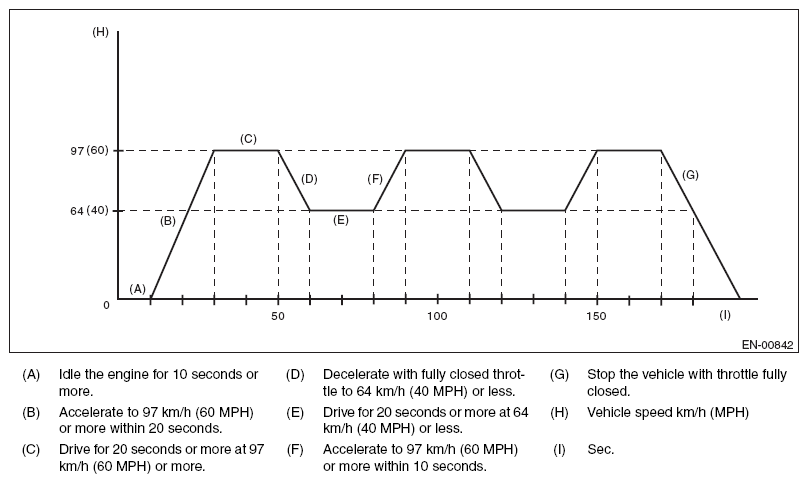

Fig 1: Vehicle Speed Drive Pattern
G07910507Courtesy of SUBARU OF AMERICA, INC.
