Control Module

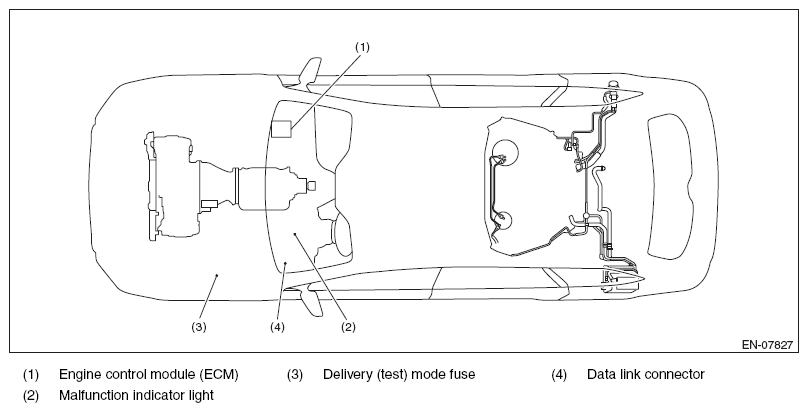

Fig 1: Identifying Engine Control Module Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Engine Control Module Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
