Control Valve Body: Installation

Check the control valve body for dust and other foreign matter.
Install the control valve body to transmission by equally tightening the bolts.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

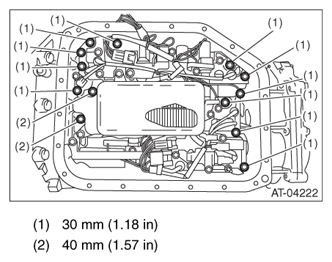

Fig 1: Identifying Control Valve Body Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the control valve connector and front vehicle speed sensor connector.

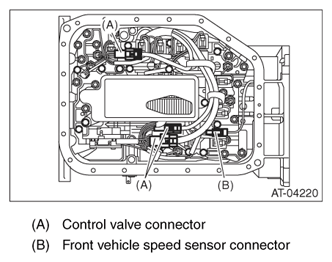

Fig 2: Identifying Control Valve Connector And Front Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position of the oil pan.

Fig 3: Identifying Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the oil pan.
Liquid gasket:

THREE BOND 1217B (Part No. K0877YA020) or equivalent

Fig 4: Identifying Oil Pan Liquid Gasket Applying Area
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan by equally tightening the bolts.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Lower the vehicle.
Connect the ground cable to battery.
Pour ATF through the oil charge pipe. Refer to , AUTOMATIC TRANSMISSION FLUID .
Check the ATF level. Refer to , INSPECTION , Automatic Transmission Fluid.
Perform Clear Memories 2 operation. Refer to CLEAR MEMORY MODE .
Perform learning operation. Refer to LEARNING CONTROL .
Perform the inspection at the end of repair work, and make sure there is no faulty as below;
- Excessive shift shock
- Oil leakage from the transmission body, etc.
- Occurrence of noise caused by interference etc.
