Extension Case: Removal

Remove the transmission assembly. Refer to , REMOVAL , Automatic Transmission Assembly.
Disconnect the rear vehicle speed sensor connector.

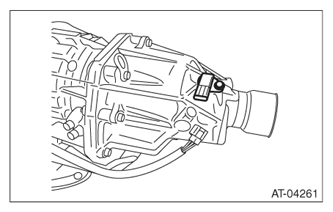

Fig 1: Identifying Rear Vehicle Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear vehicle speed sensor.

Fig 2: Identifying Rear Vehicle Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case.

Fig 3: Identifying Extension Case
Courtesy of SUBARU OF AMERICA, INC.
