Transmission Control Device & Parking Support

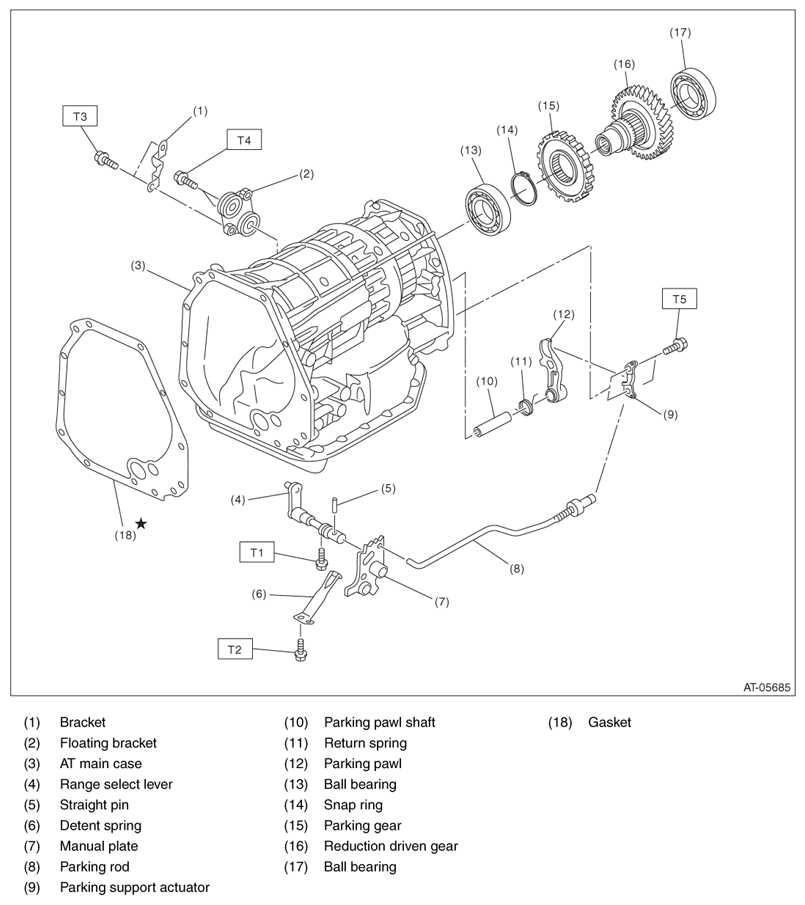

Fig 1: Exploded View Of Transmission Control Device And Parking Support

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 7 (0.7, 5.2)

T3: 18 (1.8, 13.3)

T4: 25 (2.5, 18.4)

T6: Refer to ,  PARKING PAWL  .
