Transmission Mounting

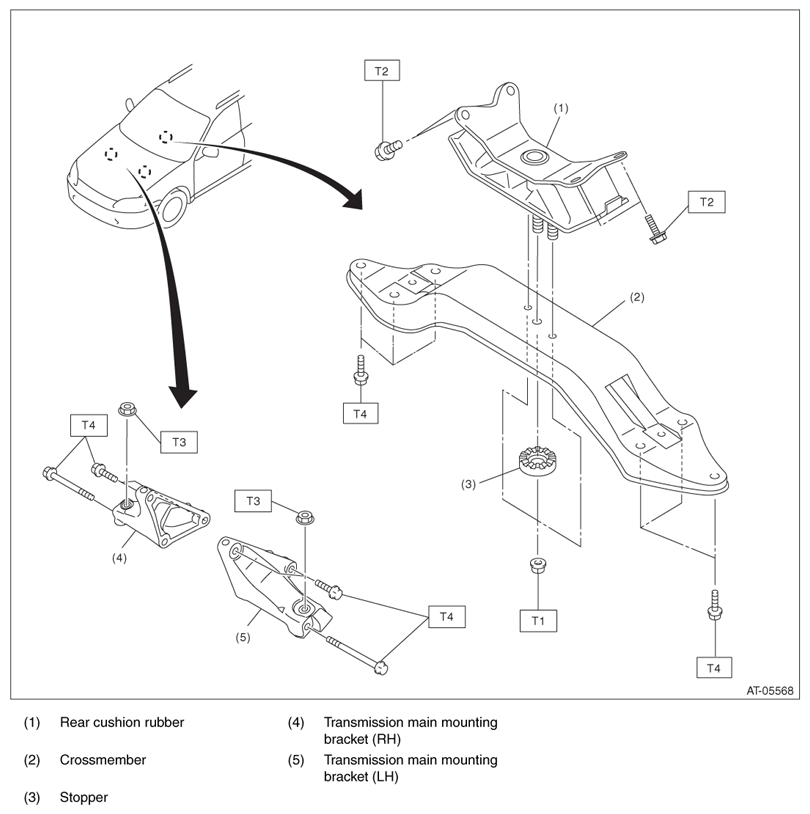

Fig 1: Identifying Rear Cushion Rubber, Crossmember, Stopper And Transmission Main Mounting Bracket

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 40 (4.1, 29.5)

T3: 45 (4.6, 33.2)

T4: 75 (7.6, 55.3)
