Oil Charge Pipe: Installation

Install the oil charge pipe.
NOTE: Use new gaskets and O-rings.

Tightening torque:

38 N.m (3.9 kgf-m, 28.0 ft-lb)

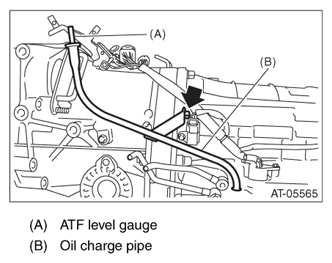

Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the turbine speed sensor 1.
Install the front exhaust pipe. Refer to FRONT EXHAUST PIPE .
Install the under cover. Refer to FRONT UNDER COVER .
Lower the vehicle.
Connect the ground cable to battery.
