Reduction Driven Gear: Adjustment

ST 499575400 GAUGE

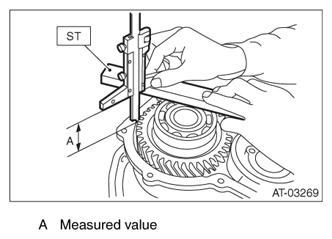

Fig 1: Measuring Height From AT Main Case Mating Surface To Ball Bearing Outer Ring Contact Surface Using Gauge

Courtesy of SUBARU OF AMERICA, INC.

ST 499575400 GAUGE

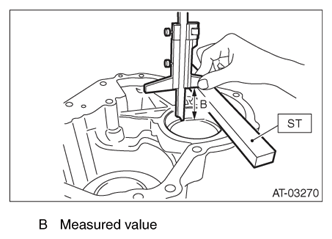

Fig 2: Measuring Depth From Mating Surface Of Extension Case To Ball Bearing Outer Ring Contact Surface

Courtesy of SUBARU OF AMERICA, INC.

Select the ball bearing shim from the table to adjust clearances within 0.05 - 0.25 mm (0.0020 - 0.0098 in).

When clearances are 0.05 mm (0.0020 in):

T (mm) = B - A + 0.23

[T (in) = B - A + 0.0091]

When clearances are 0.25 mm (0.0098 in):

T (mm) = B - A + 0.03

[T (in) = B - A + 0.0012]

T: Shim clearance

1. Height from the mating surface of the AT main case to the ball bearing outer ring end surface
2. Depth from mating surface of extension case to ball bearing outer ring contact surface
