Outer Mirror Assembly: Removal

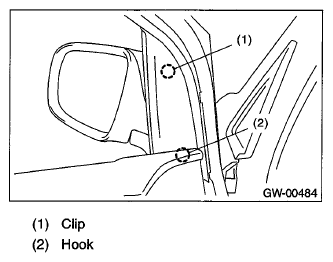

- Remove the mirror gusset cover.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the door trim. Refer to
REMOVAL
, Door Trim.
- Disconnect the mirror connector.
- Remove the screws to remove outer mirror assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the outer mirror assembly. (Model without door visor)
- Using the upper part (A) of the mirror assembly as a supporting point, pull it upward while drawing the lower part. (Model with door visor)
CAUTION:
- Do not remove forcibly, otherwise door visor may be damaged.
- Apply protective tape as necessary in order to avoid scratching the door visor and mirror assembly.
Courtesy of SUBARU OF AMERICA, INC.
- Pull the mirror assembly downward to remove from the vehicle body. (Model with door visor)
Courtesy of SUBARU OF AMERICA, INC.
