General Information: Note: Note: Tie-Downs

Tie-downs are used when transporting vehicles and when using the chassis dynamo. Attach tie-down only to the specified locations on the vehicle.

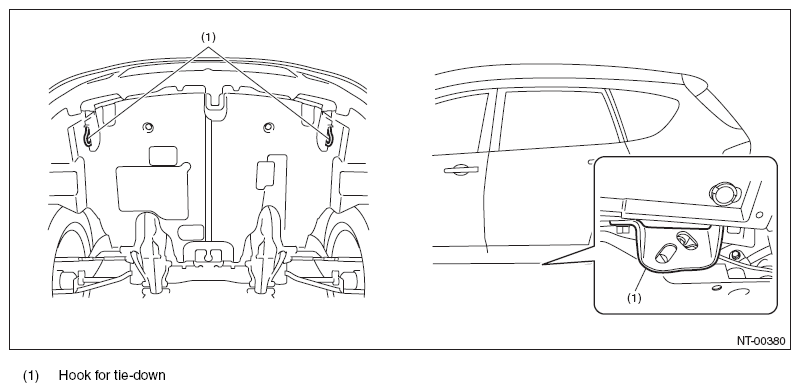

TIE-DOWN LOCATION

Fig 1: Identifying Hooks For Tie Downs

Courtesy of SUBARU OF AMERICA, INC.

CHAIN DIRECTION AT TIE-DOWN CONDITION

NOTE: Pull the chains LH and RH in the same direction, but front and rear side in the counter direction. Pull all the chains in a same moment.

Fig 2: Identifying Correct Condition For Pulling Chain At Tie Down Condition

Courtesy of SUBARU OF AMERICA, INC.

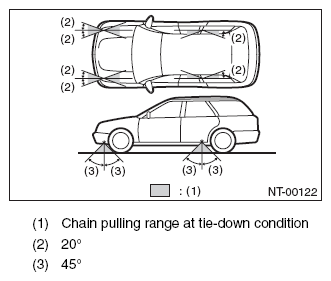

Chain pulling range at tie-down condition

Fig 3: Identifying Chian Pulling Range At Tie Down Condition

Courtesy of SUBARU OF AMERICA, INC.

VEHICLE SINKING VOLUME AT TIE-DOWN CONDITION

Measure the distance between the highest tire point and highest arch point before and after tie-down. Difference of measured values (sinking volume) should be within 50 mm (1.97 in) and make sure to fix the vehicle securely.

Fig 4: Identifying Distance Between Highest Tire Point And Highest Arch Point

Courtesy of SUBARU OF AMERICA, INC.
