AT Main Case: Removal

Remove the transmission assembly from vehicle body. Refer to REMOVAL , Automatic Transmission Assembly.
Pull out the torque converter assembly. Refer to REMOVAL , Torque Converter Assembly.
Remove the transmission harness connector from stay.
Remove the ATF inlet and outlet pipes. Refer to REMOVAL , ATF Cooler Pipe and Hose.
Remove the extension case. Refer to REMOVAL , Extension Case.
Remove the center differential carrier. Refer to REMOVAL , Center Differential Carrier.
Remove the reduction driven gear. Refer to REMOVAL , Reduction Driven Gear.
Separate the converter case from the transmission case. Refer to REMOVAL , Converter Case.
Remove the control valve body. Refer to REMOVAL , Control Valve Body.
Remove the oil pump cover. Refer to REMOVAL , Oil Pump Cover.
NOTE: The input clutch pack assembly and front sun gear assembly are also removed together.

Fig 1: Identifying Oil Pump Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the needle bearing of the middle carrier assembly.

Fig 2: Identifying Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the middle carrier assembly.

Fig 3: Identifying Middle Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear carrier assembly.

Fig 4: Identifying Rear Carrier Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the middle & rear sun gear assembly.

Fig 5: Removing Middle And Rear Sun Gear Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust needle bearing of high & low reverse clutch.

Fig 6: Identifying High And Low Reverse Clutch Of Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Remove the high & low reverse clutch assembly.

Fig 7: Removing/Installing High And Low Reverse Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the direct clutch assembly.

Fig 8: Removing/Installing Direct Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring of reverse brake.

Fig 9: Identifying Snap Ring Of Reverse Brake
Courtesy of SUBARU OF AMERICA, INC.
Remove the retaining plate.
Remove the leaf spring.

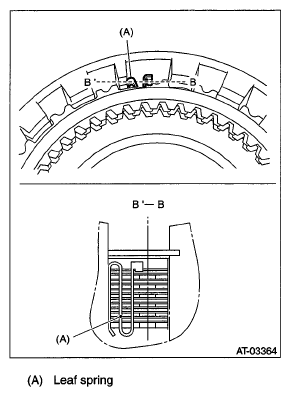

Fig 10: Identifying Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.
Take out the drive plate, driven plate and dish plate.
Remove the snap ring of the reverse brake spring retainer.
ST1 18762AA000 COMPRESSOR SPECIAL TOOL

ST2 18765AA000 COMPRESSOR SUPPORT

ST3 18763AA000 COMPRESSOR SHAFT

Fig 11: Identifying Reverse Brake Spring Retainer And Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the spring retainer.

Fig 12: Identifying Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Remove the return spring.

Fig 13: Removing/Installing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air.

Fig 14: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse brake piston.

Fig 15: Removing Reverse Brake Piston
Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing and the seal ring.

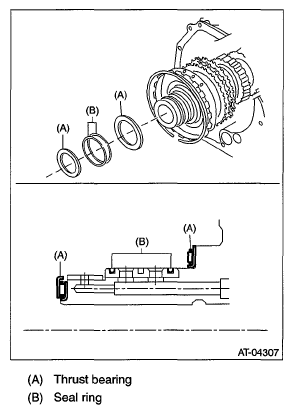

Fig 16: Identifying Thrust Bearing And Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
