Control Valve & Transmission Harness

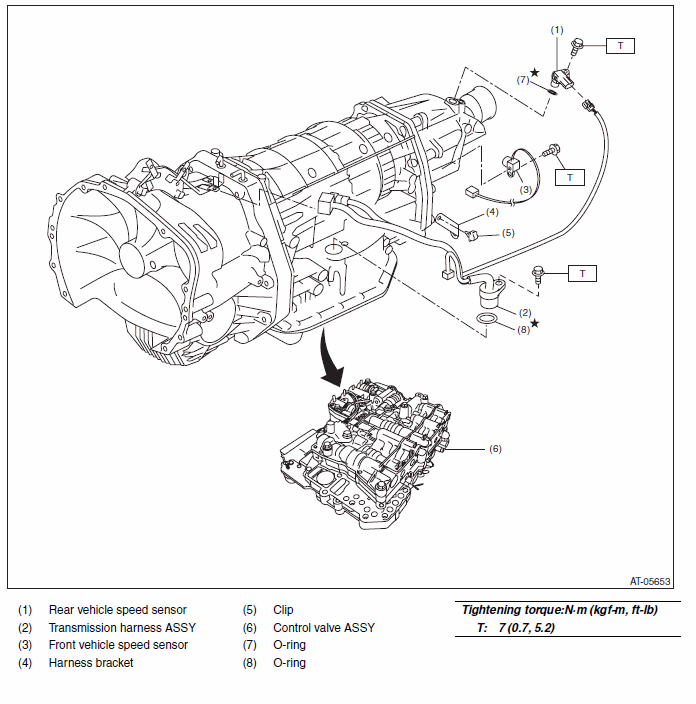

Fig 1: Exploded View Of Transmission Harness And Control Valve With Torque Specifications
G00514640Courtesy of SUBARU OF AMERICA, INC.
