Oil Charge Pipe: Installation

Install the oil charge pipe with a new O-ring.
NOTE: Use new bolts.

Tightening torque:

38 N.m (3.9 kgf-m, 28.0 ft-lb)

Fig 1: Identifying Oil Charge Pipe And O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Turn the turbine speed sensor 1 back to the original orientation, and install the bolt and connect the connector.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

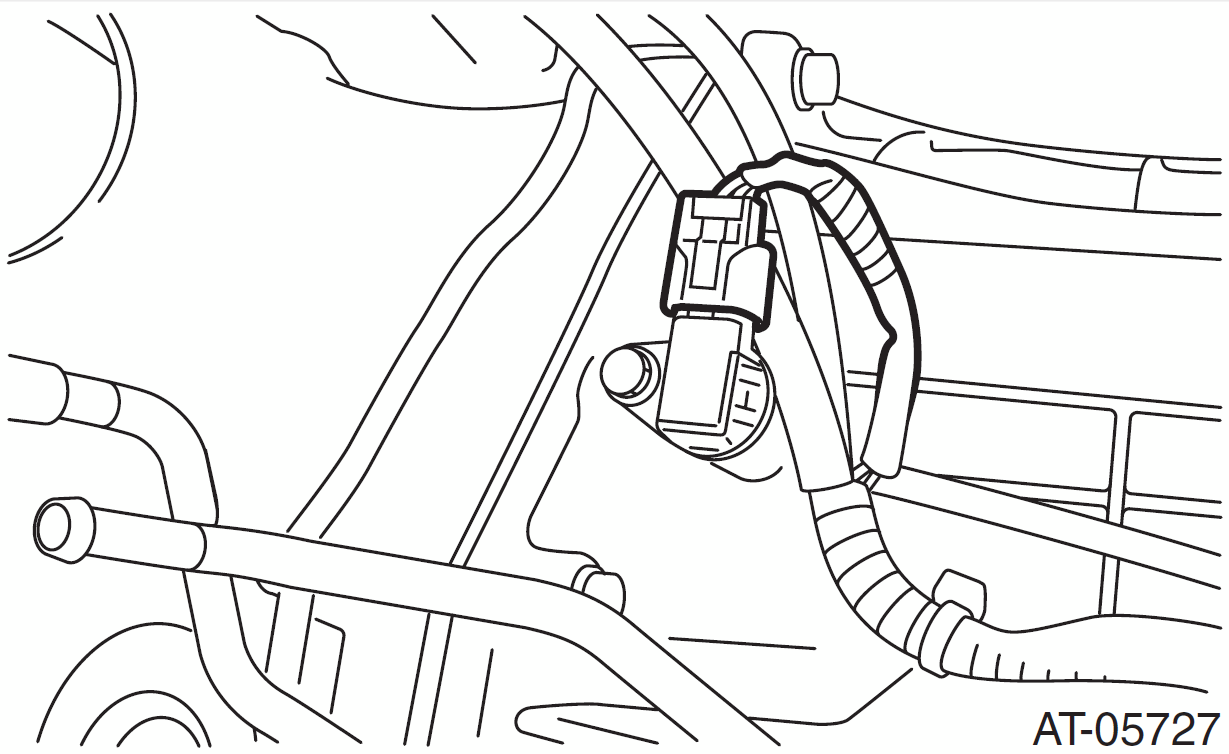

Fig 2: Turbine Speed Sensor 1 Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe.
Install the under cover.
Lower the vehicle.
Connect the ground cable to battery.
