Body Integrated Unit Power Supply And Ground Circuit

Fig 1: Body Integrated Unit Power Supply - Circuit Diagram

Courtesy of SUBARU OF AMERICA, INC.

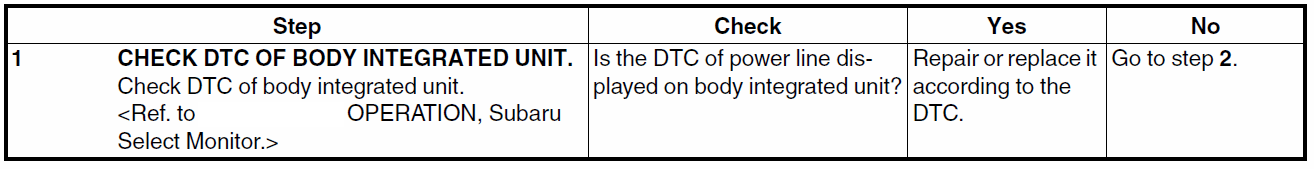

Fig 2: Body Integrated Unit Power Supply Diagnosis Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

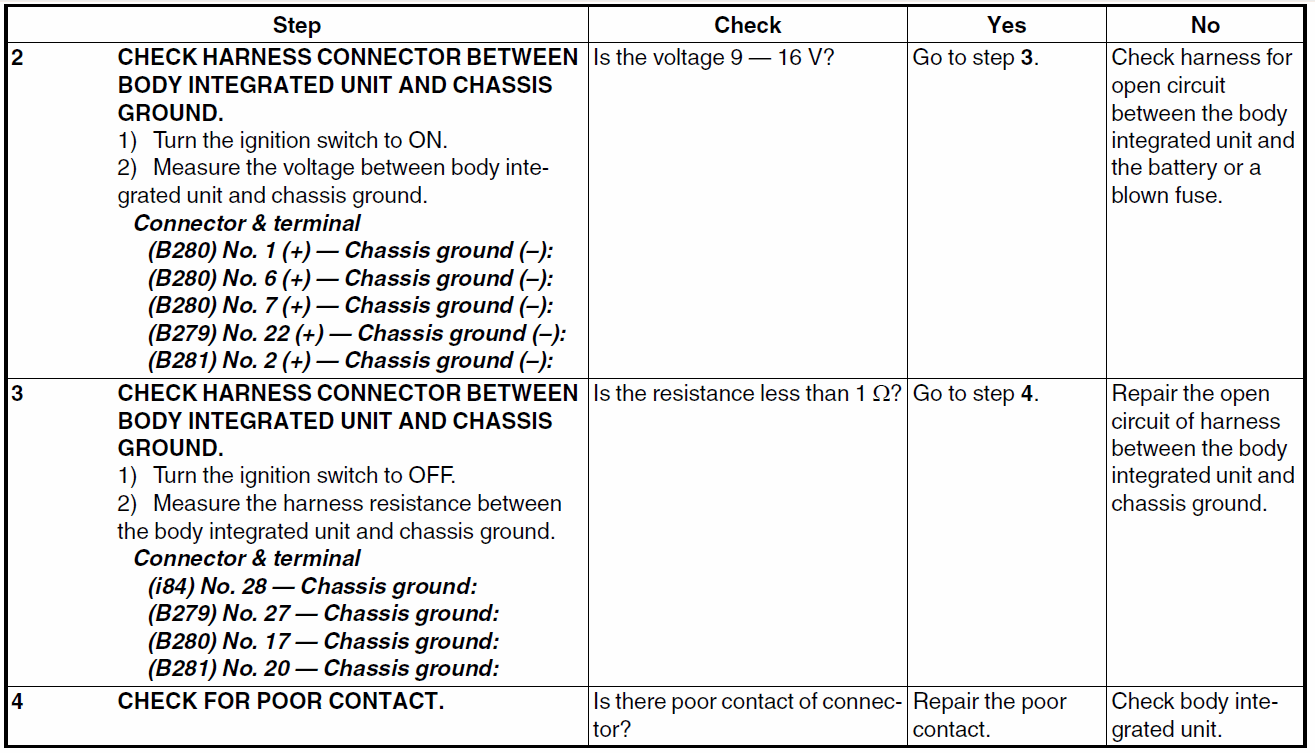

Fig 3: Body Integrated Unit Power Supply Diagnosis Procedure Chart (2 Of 2)
