Shift Lock Operation

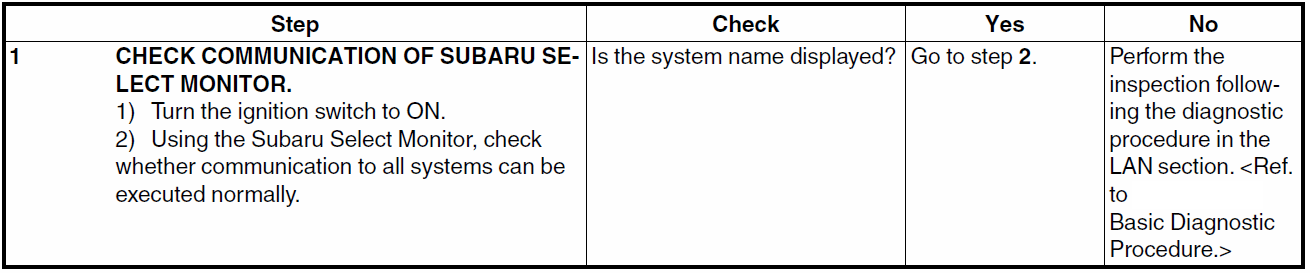

Fig 1: AT Shift Lock Control Diagnosis Procedure Chart (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

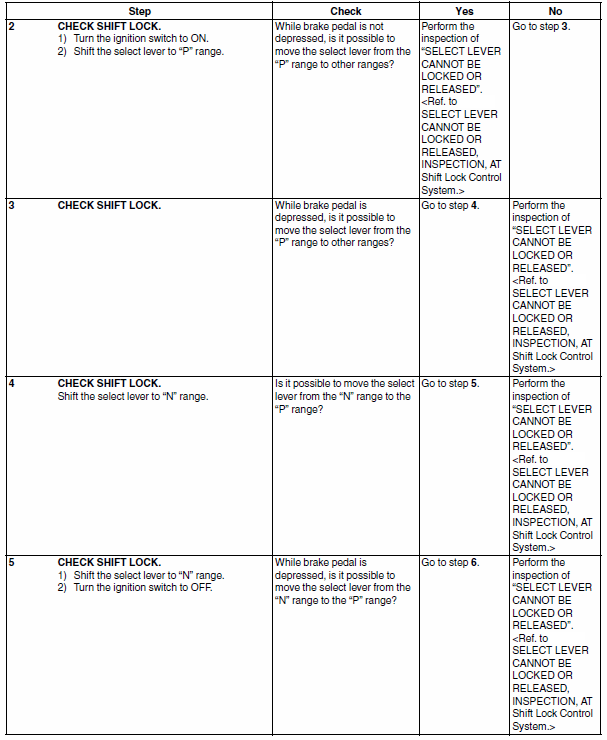

Fig 2: AT Shift Lock Control Diagnosis Procedure Chart (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

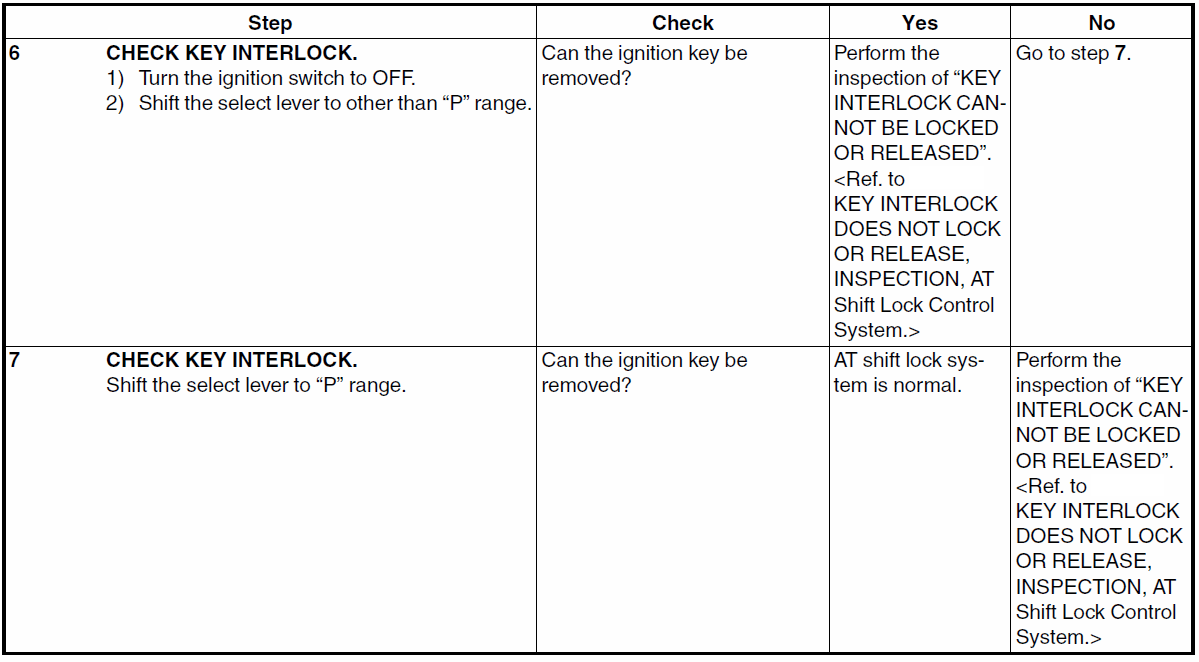

Fig 3: AT Shift Lock Control Diagnosis Procedure Chart (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
