Second Seat Belt

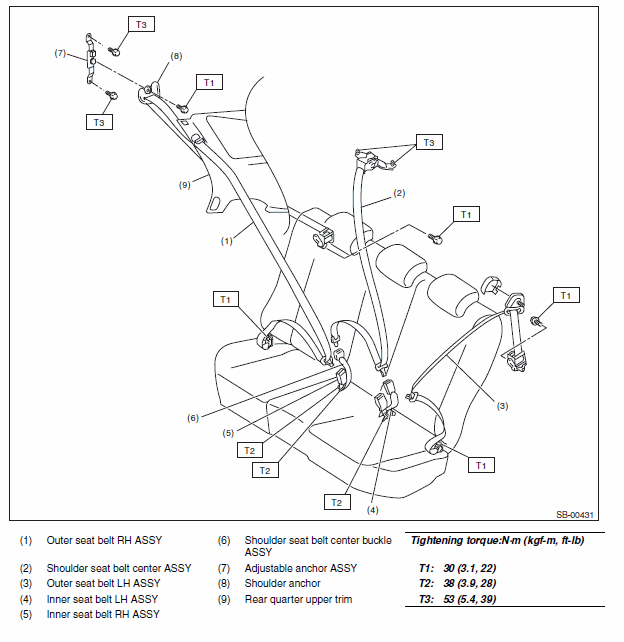

Fig 1: Exploded View Of Second Seat Belt With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
