Transmission Control Device & Parking Support

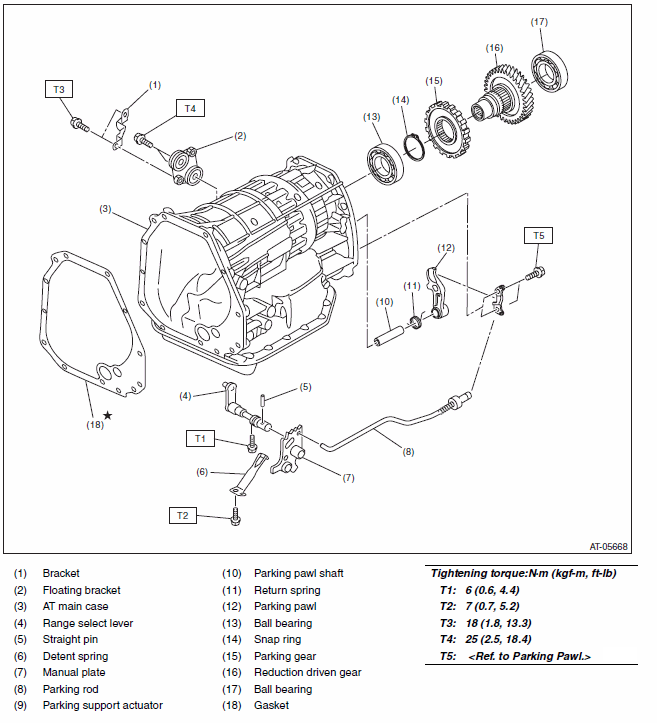

Fig 1: Exploded View Of Transmission Control Device And Parking Support With Torque Specifications
G00514643Courtesy of SUBARU OF AMERICA, INC.
