Ignition coil and spark plug (FA20): Removal

Hood sub-assembly setting (Refer to REMOVAL )
Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Removal of front strut tower bar LH (Refer to FRONT STRUT TOWER BAR )
Removal of front strut tower bar RH (Refer to INSTALLATION )
Removal of air cleaner case sub-assembly (Refer to REMOVAL )
Engine wiring disconnection

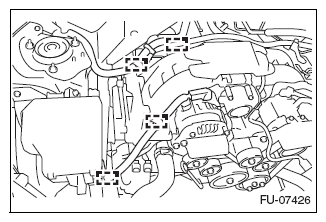

1. Release the four clamps and disconnect the engine wiring.

  Fig 1: Identifying Engine Wiring Clamps
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolt and three clamps, and then disconnect the engine wiring.

  Fig 2: Locating Engine Wiring Bolt And Clamps
  Courtesy of SUBARU OF AMERICA, INC.
Removal of exhaust manifold
(Refer to REMOVAL )
Disconnection of front crossmember sub-assembly

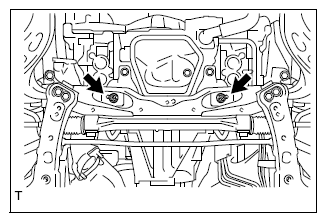

1. Remove the 2 nuts on the engine mount.

  Fig 3: Locating Engine Mount Nuts
  Courtesy of SUBARU OF AMERICA, INC.
Installation of SST

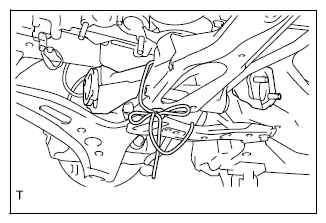

1. Tie the exhaust pipe sub-assembly FR to the front suspension crossmember sub-assembly with the rope.
  NOTE: This operation is required to avoid dropping the exhaust pipe sub-assembly FR.

  Fig 4: Securing Exhaust Pipe Sub-Assembly FR To Front Suspension Crossmember Sub-Assembly Using Rope
  Courtesy of SUBARU OF AMERICA, INC.

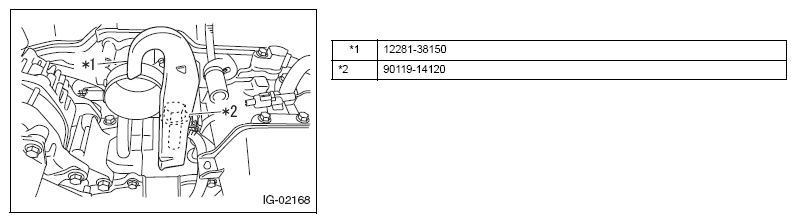

2. Install the SST to the cylinder block.

  Fig 5: Installing SST (12281-38150 And 90119-14120) To Cylinder Block
  Courtesy of SUBARU OF AMERICA, INC.

  SST 12281-38150, 90119-14120

  Standard value: T=43N.m {439kgf.cm} {31.7ft.lbf}

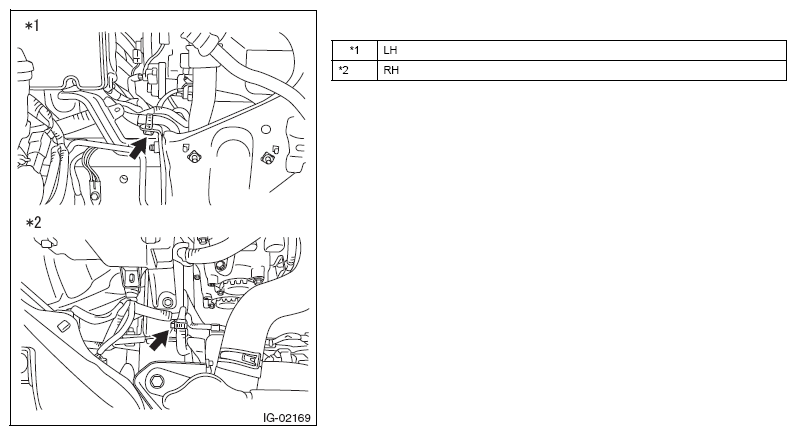

3. Release the clamp and disconnect the engine wiring.

  Fig 6: Locating Engine Wiring Clamps (LH And RH)
  Courtesy of SUBARU OF AMERICA, INC.

  NOTE: This procedure is required to prevent the engine wiring from damaging.

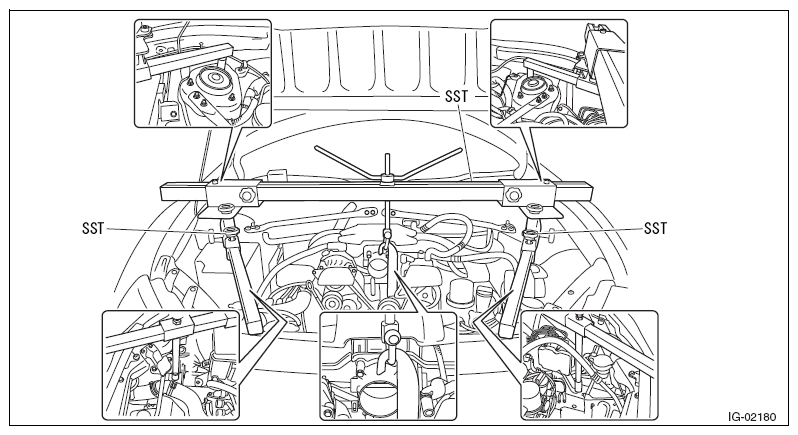

4. Install the SST to the vehicle.

  Fig 7: Installing SST To Vehicle
  Courtesy of SUBARU OF AMERICA, INC.

  SST 99099AJ000, 18679AA020
  CAUTION:
  - When installing the SST to the vehicle, do not damage the engine wiring.
  - Use a shackle with the load capacity of 250 kg (551 lb) or more.
5. Lift the engine assembly a little bit at a time until the stud bolt of the engine mount is removed from the front crossmember.
  CAUTION:
  - To avoid the damage to the SST, apply grease or lubricant to the threaded portion.
  - To avoid the damage to the vehicle and parts, perform lifting operation a little bit at a time while checking the clearance in each part.
  - Lift the engine until the intake manifold (#4) slightly comes in contact with the A/C suction hose.
  - Insert a cloth between the intake manifold (#4) and the A/C suction hose to protect each part.

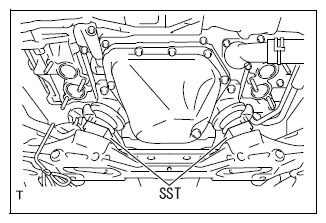

6. Install the SST between engine mount and front crossmember.
  SST 18632AA020

  Fig 8: Installing SST Between Engine Mount And Front Crossmember
  Courtesy of SUBARU OF AMERICA, INC.
Removal of intake manifold protector (bank 2 side)
1. Remove the bolt, and disconnect the fuel hose bracket.

  Fig 9: Identifying Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove 2 bolts, and remove the intake manifold protector (bank 2 side).

  Fig 10: Locating Intake Manifold Protector (Bank 2 Side) Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of ignition coil assembly (bank 2 side)
1. Disconnect 2 connectors for the ignition coil assembly.
2. Remove 2 bolts, and remove 2 ignition coil assemblies.

  Fig 11: Locating Ignition Coil Assembly Connectors And Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of spark plug (bank 2 side)
1. Remove 2 spark plugs.

  Fig 12: Removing Spark Plug
  Courtesy of SUBARU OF AMERICA, INC.
Removal of injector driver (Refer to INJECTOR DRIVER (FA20) )
Removal of ignition coil assembly (bank 1 side)
1. Disconnect 2 connectors for the ignition coil assembly.
2. Remove 2 bolts, and remove 2 ignition coil assemblies.

  Fig 13: Locating Ignition Coil Assembly Connectors And Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Removal of spark plug (bank 1 side)
1. Remove 2 spark plugs.

  Fig 14: Removing Spark Plug
  Courtesy of SUBARU OF AMERICA, INC.
