Unit inspection

  1. Inspection of knock control sensor
    1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 532 to 588 kΩ

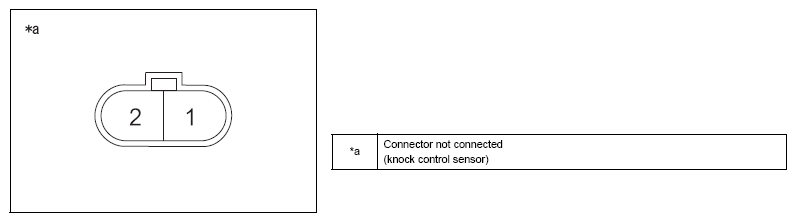

      Fig 1: Identifying Knock Control Sensor Connector Terminals
      G08554048Courtesy of SUBARU OF AMERICA, INC.
