Subaru
>>
2013
>>
BRZ Premium, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Power Control System
>>
Power control system
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

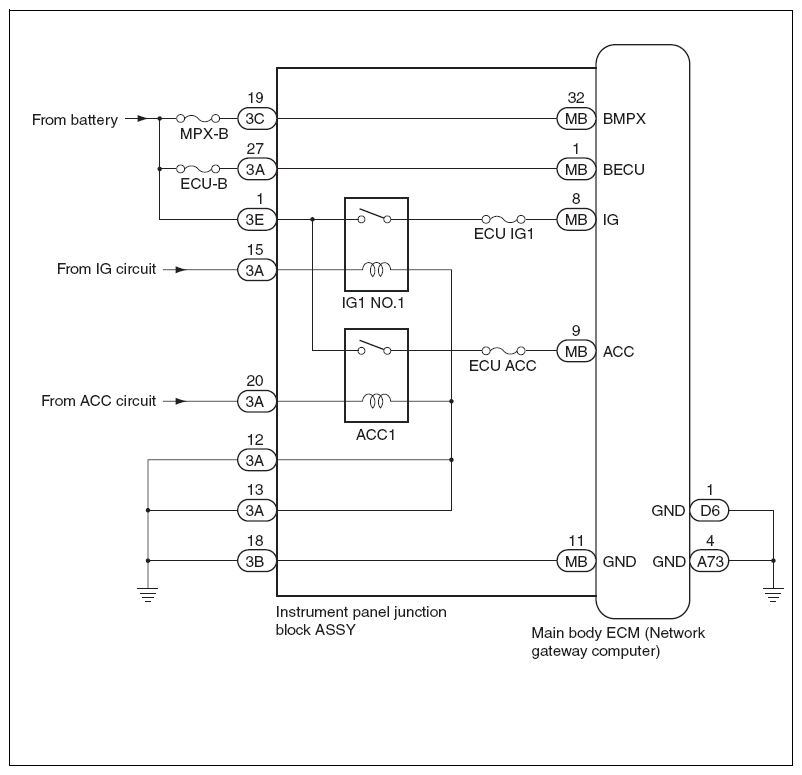

Fig 1: Power Control System - Circuit Diagram
