Unit inspection

  1. Crankshaft position sensor check
    1. Measure the resistance between the terminals.
      RESISTANCE

      Inspection terminals Inspection conditions Resistance
      1 - 2 Always 1836 to 2244 Ω

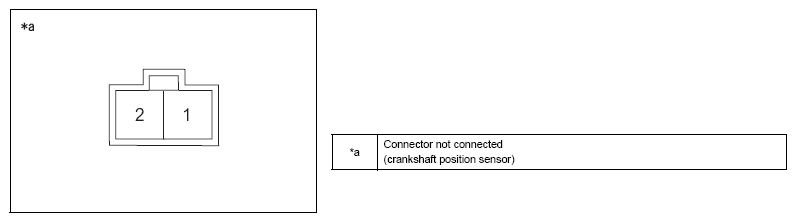

      Fig 1: Identifying Crankshaft Position Sensor Connector Terminals
      G08554016Courtesy of SUBARU OF AMERICA, INC.
