Camshaft Position Sensor: Removal

Disconnect the ground cable from battery.

Fig 1: Connecting/Disconnecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (rear). (RH side only) < Refer to REMOVAL , Air Intake Duct. >
Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
- RH side

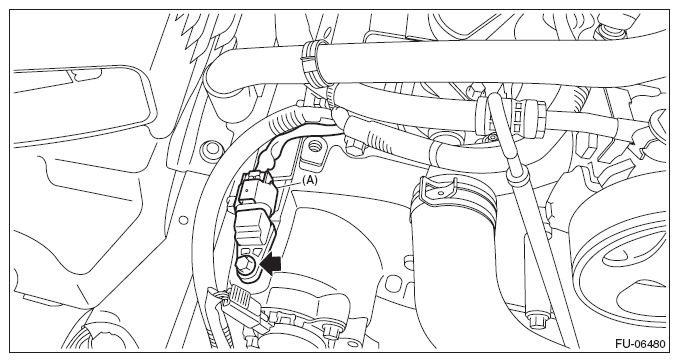

  Fig 2: Identifying Camshaft Position Sensor Connector (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

  Fig 3: Identifying Camshaft Position Sensor Connector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
