Crankshaft Position Sensor (Method With Oscilloscope)

Prepare an oscilloscope.
Remove the glove box lower cover. < Refer to REMOVAL , Glove Box. >
Remove the lower inner trim of passenger's side. < Refer to REMOVAL , Lower Inner Trim. >
Turn over the floor mat of passenger's seat.
Remove the protect cover.

Fig 1: Locating Protect Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.

Fig 2: Locating ECM Mounting Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.

Connect the probe to ECM connector.

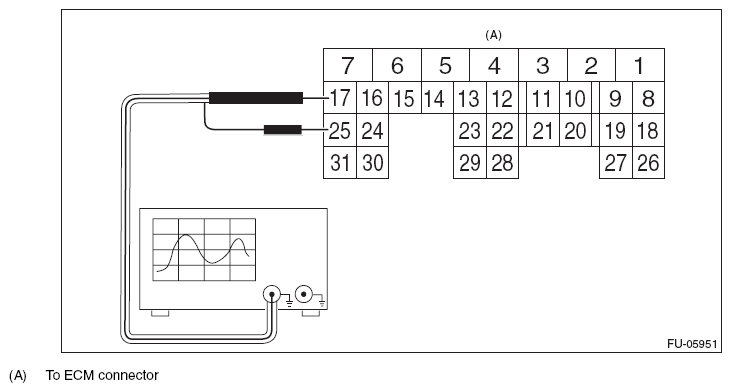

Fig 3: Connecting Probe To ECM Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Probe
17	+
25	-

Start the engine and let it idle.
Check the pattern is the same as the waveform and voltage shown below.

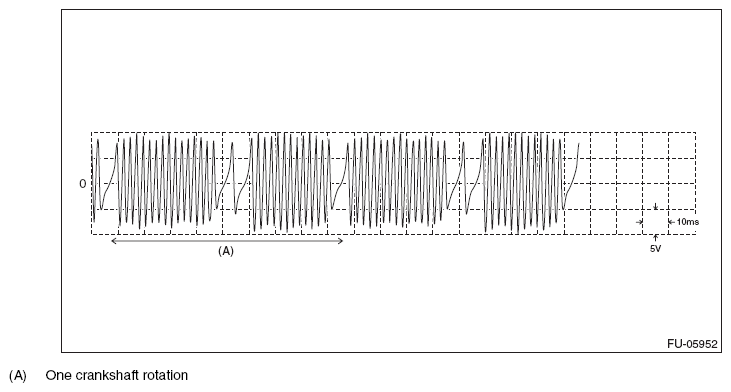

Fig 4: Crankshaft Position Sensor Output Waveform
Courtesy of SUBARU OF AMERICA, INC.
After inspection, install the related parts in the reverse order of removal.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
